Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF365JA
HF365JA is a Siemens heavy duty safety switch designed for robust industrial applications.

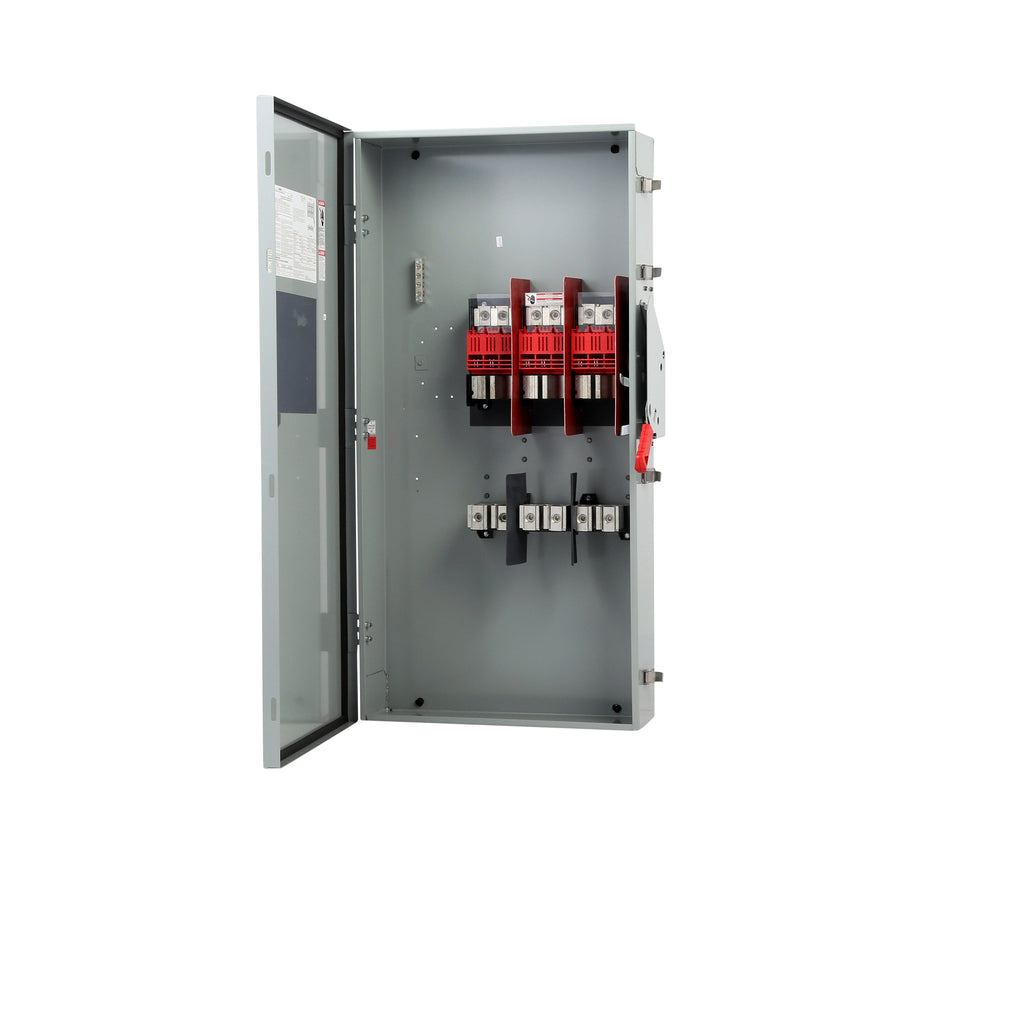

This fusible low voltage safety switch features a 400A amperage rating, 600VAC voltage rating, and 3 poles in a NEMA 12 enclosure. It is engineered for reliable performance with a 125 HP horsepower rating, 60 Hz frequency, and hole mounting for secure installation. The switch includes a side-hinged door for easy wiring, spring-reinforced fuse clips for reliable contact, and a durable steel enclosure for increased rigidity and resistance to abuse.
Key Specifications
- Part Number: HF365JA
- Manufacturer: Siemens
- Amperage: 400A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Hole Mount
- Interrupt Rating: Not specified in available data
- Series/Frame: Heavy Duty
- Trip Unit: Not applicable (fusible safety switch)
- Certifications: UL listed, CSA listed
- Enclosure: NEMA 12
- Horsepower: 125 HP
- Frequency: 60 Hz
At Essential Parts, we offer &(more...)
Specifications
- Part Number: HF365JA
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 600 AC AC
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 887621872601
- GTIN : 00887621872601
- Country of Origin : Mexico
- Dimensions : 6.693 x 22.047 x 45.276 inch
- Weight : 99.803
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Certification : UL listed
