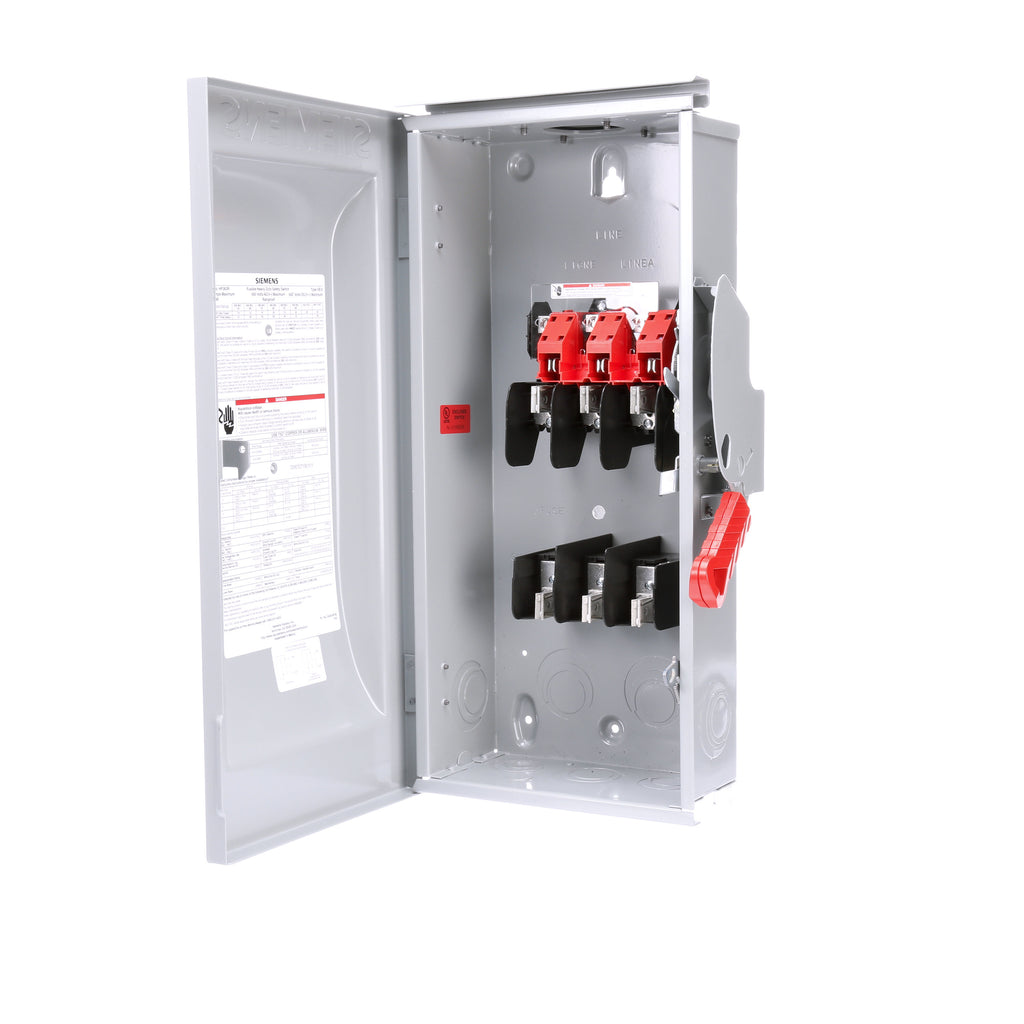

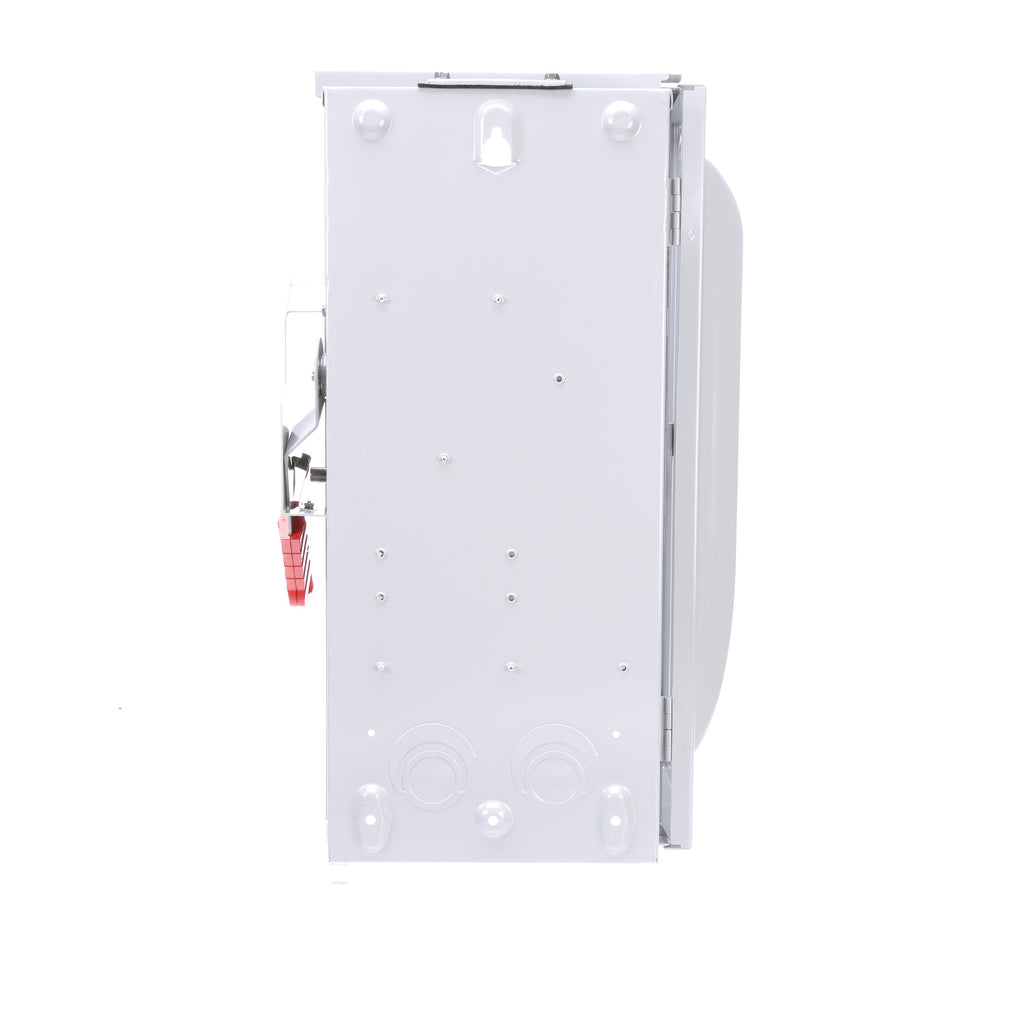

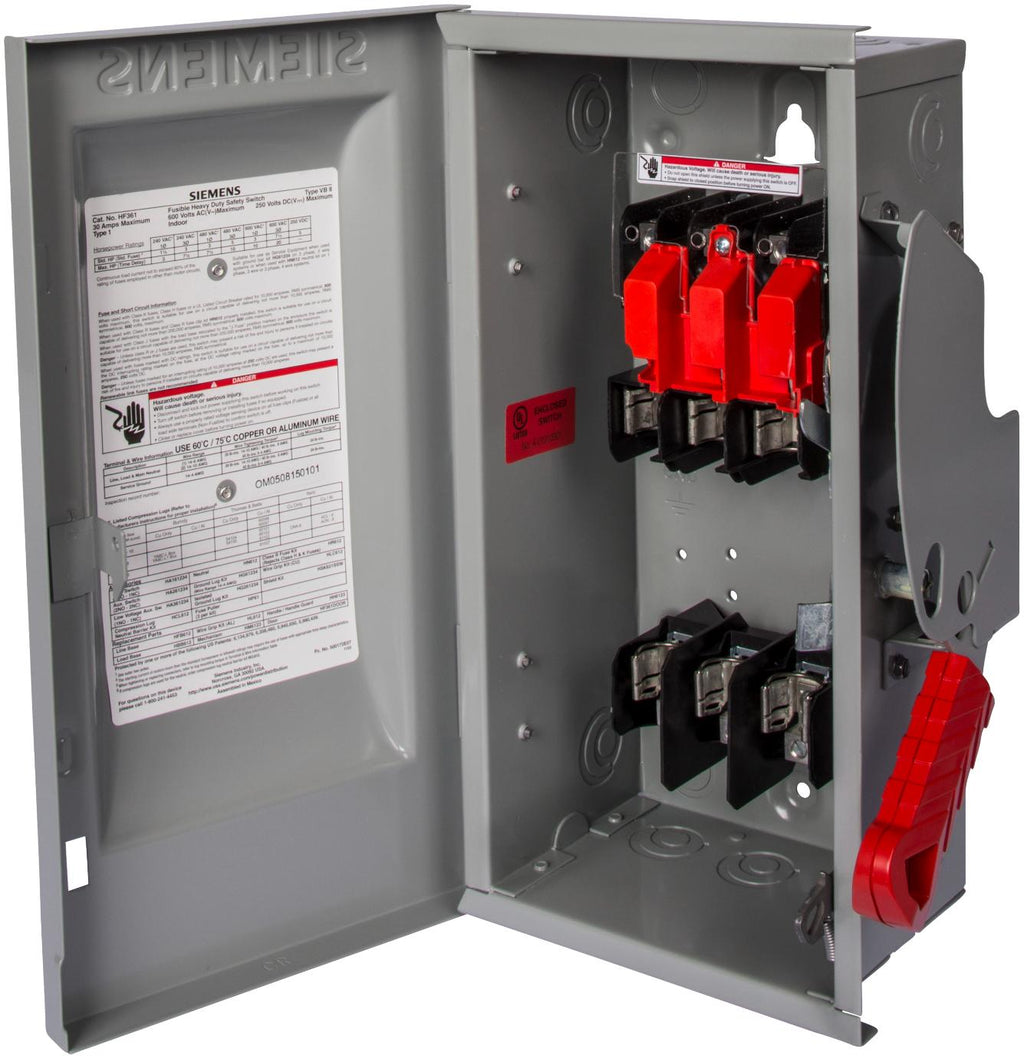

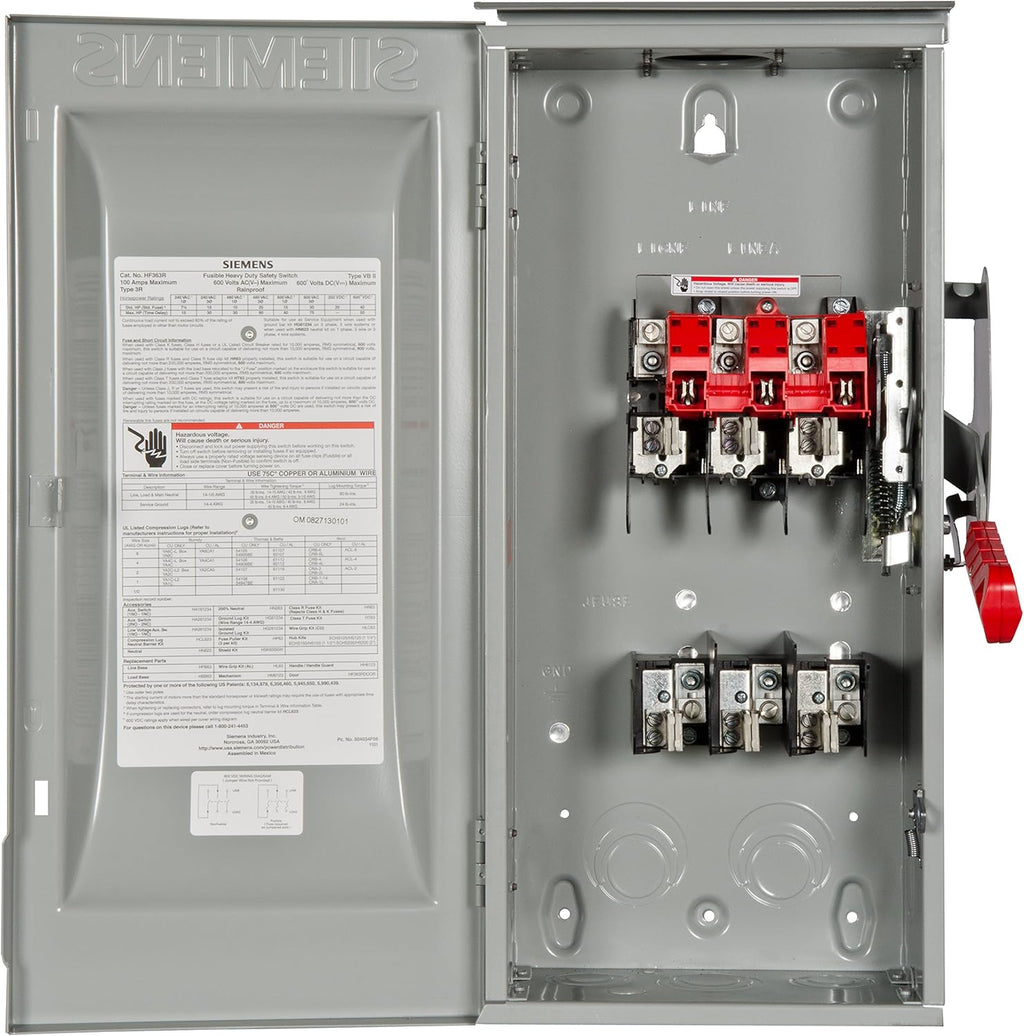

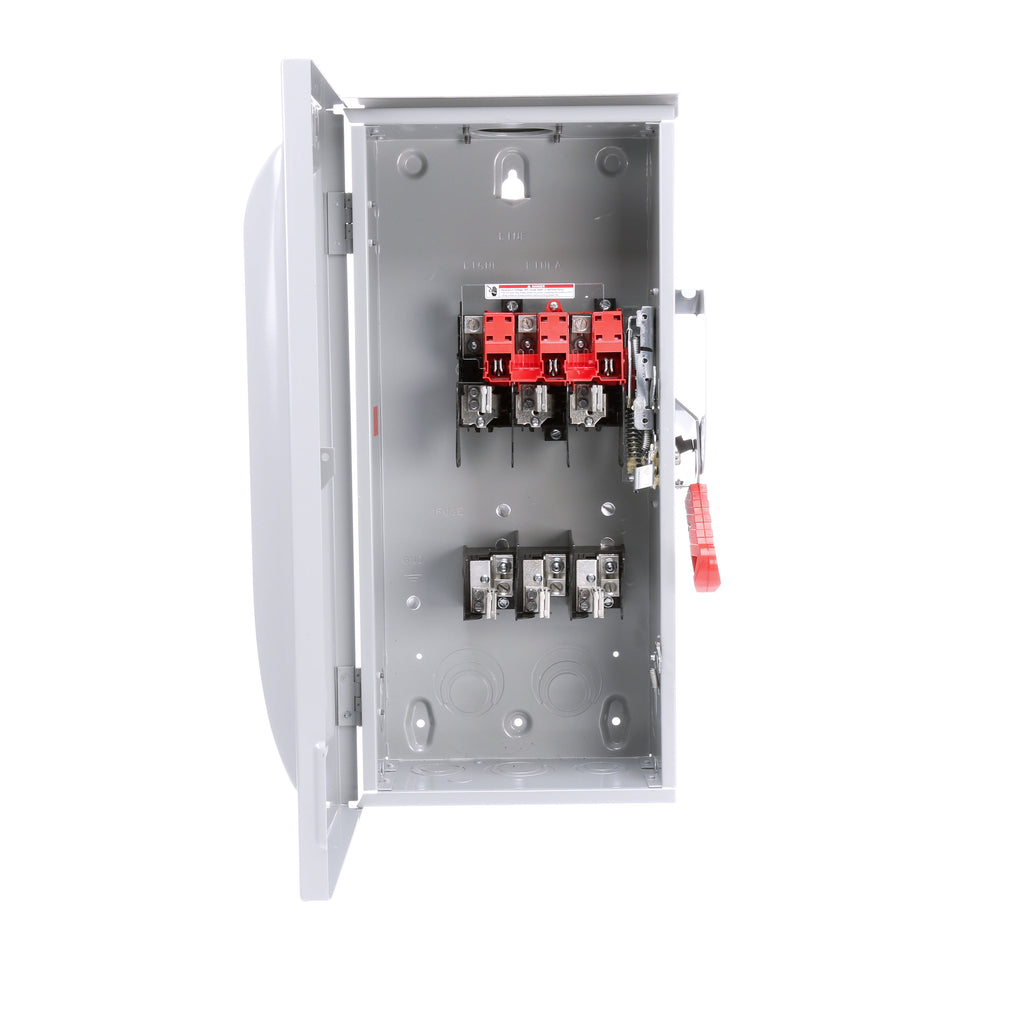

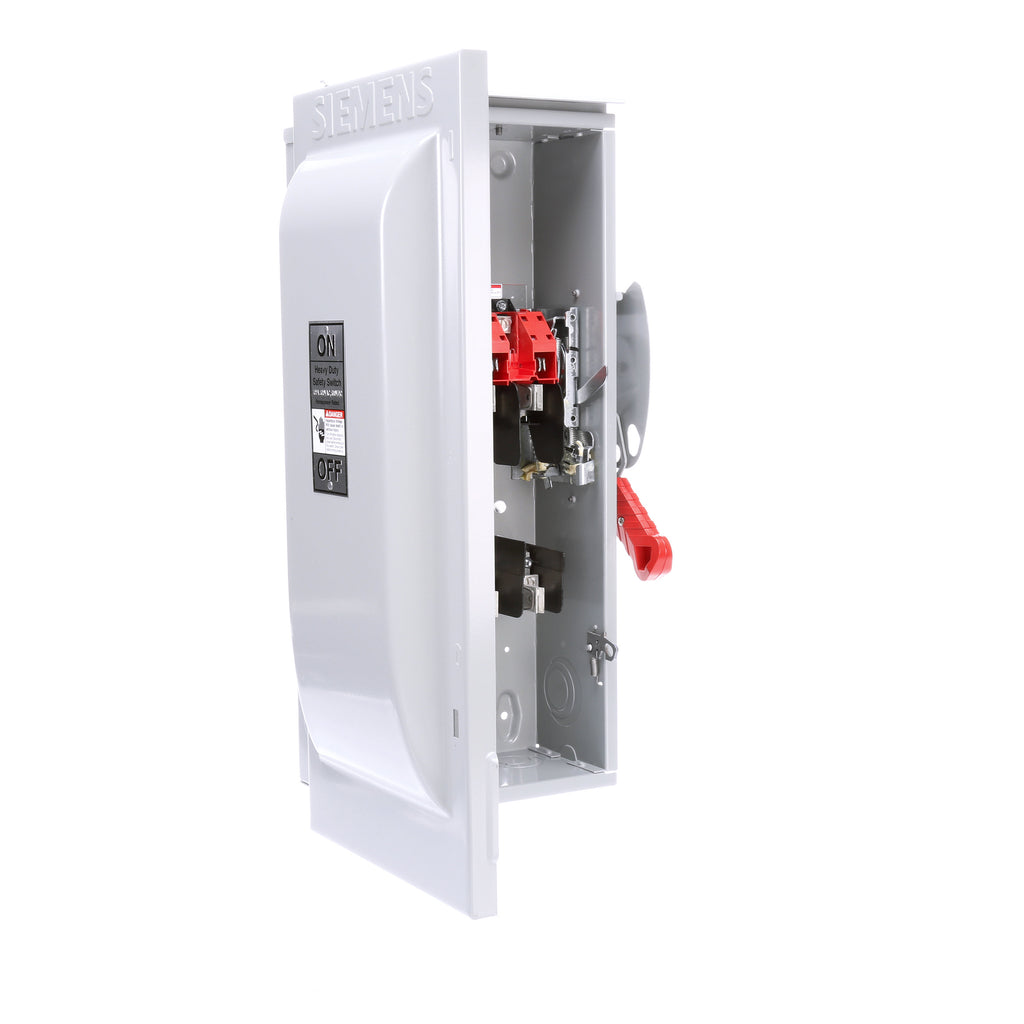

HF363R - Siemens 100A 600VAC 3-Pole Outdoor Fusible Heavy Duty Safety Switch Type 3R

HF363R

HF363R is a Siemens 100 Amp, 600 Volt AC, 3-Pole Outdoor Fusible Heavy Duty Safety Switch designed for reliable low voltage circuit protection.This enclosed safety switch features a Type 3R NEMA-rated outdoor enclosure made of 304 stainless steel, suitable for harsh environments. It has a single throw actuating element with 2 or 3 point mounting holes, rated for 100A continuous current and 600VAC voltage. The switch is fusible with 3 poles, UL listed, and designed for heavy duty applications with a mechanical life of approximately 10,000 switching cycles. It supports 50/60 Hz frequency and is suitable for use as service entrance equipment.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Mounting Type: 2 or 3 point mounting holes
• Interrupt Rating: Fusible switch (fuses not included)
• Enclosure Type: NEMA 3R outdoor, 304 stainless steel
• Trip Unit: Single throw
• Certifications: UL Listed
• Mechanical Life: Approx. 10,000 cycles
• Frequency: 50/60 Hz
• Application: Heavy duty low voltage circuit protection
&lt(more...)


Specifications

• Part Number: HF363R
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible Disconnect Switch
• Family : VBII Series
• Type : HF
• Voltage : 600 AC AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 3R
• Compatible Frames : PGP



Product Data

• UPC : 783643151307
• GTIN : 00783643151307
• Country of Origin : Mexico
• Dimensions : 25.591 x 13.78 x 7.874 inch
• Weight : 21.649 lb
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Certification : UL listed
