Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF363JCH

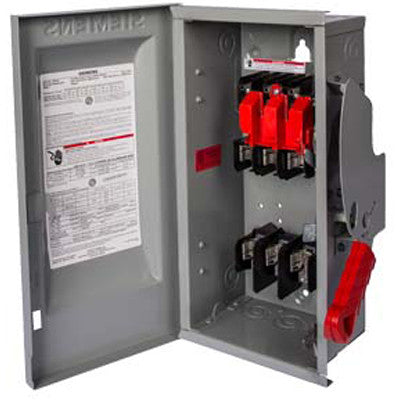

HF363JCH is a Siemens 100 Amp, 600 Volt, 3-Pole fusible safety switch designed for heavy-duty applications with NEMA 3R/3S/12 enclosure ratings.HF363JCH features a 3-wire configuration and is compatible with Class R fuses, providing reliable circuit protection and safe disconnect capabilities. It supports a horsepower rating of 30 HP at 600V AC and is built for durability with an operating temperature down to -29 degrees Celsius and 10,000 operating cycles.
- Key Specifications
- Amperage: 100 Amps
- Voltage: 600 Volts AC
- Poles: 3
- Wires: 3
- Fuse Class: R
- Switch Style: Fusible
- Enclosure Type: NEMA 3R/3S/12
- Duty: Heavy
- Horsepower Rating: 30 HP at 600V AC
- Operating Temperature: -29ÁC minimum
- Operating Cycles: 10,000
Specifications
- Part Number: HF363JCH
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 600 AC AC
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
- Compatible Frames : PGP
Product Data
- UPC : 783643435865
- GTIN : 00783643435865
- Country of Origin : Mexico
- Dimensions : 14.961 x 7.874 x 34.646 inch
- Weight : 36.068
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Certification : UL listed
