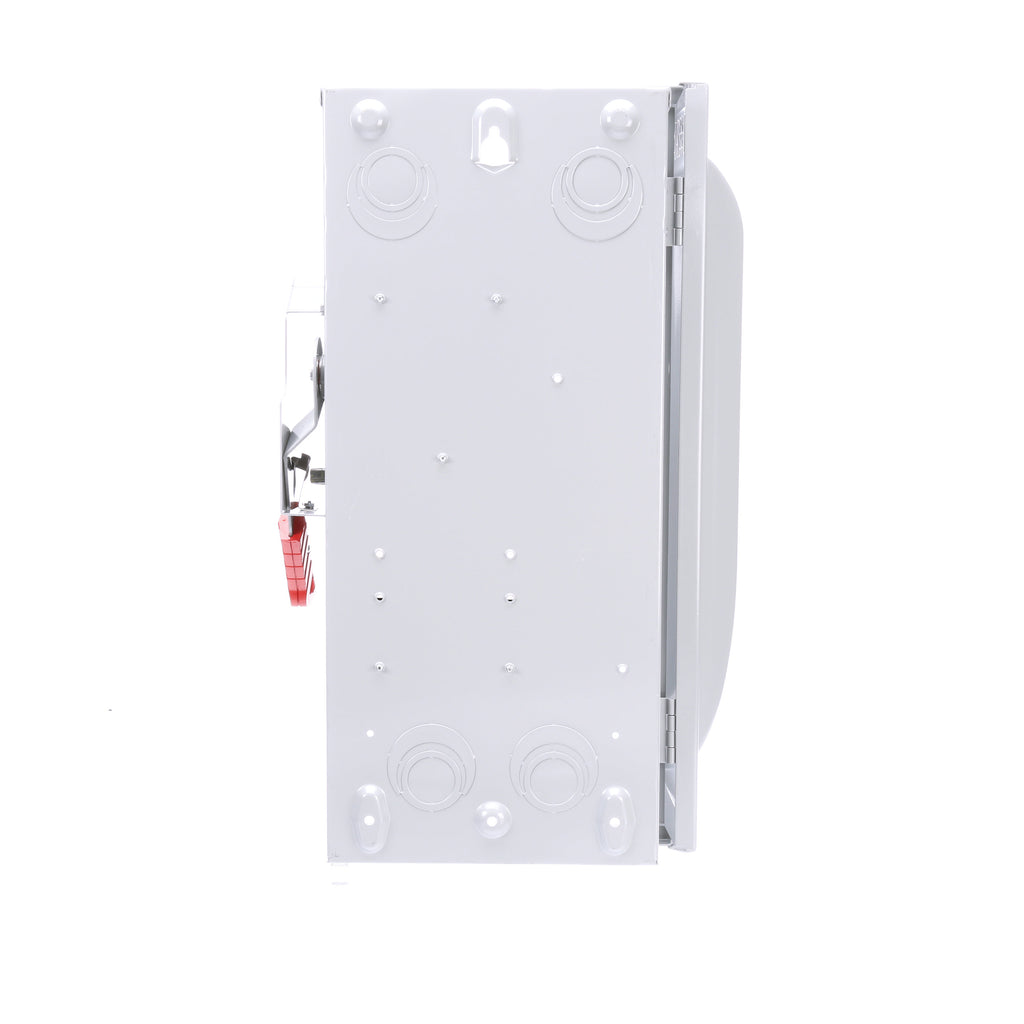

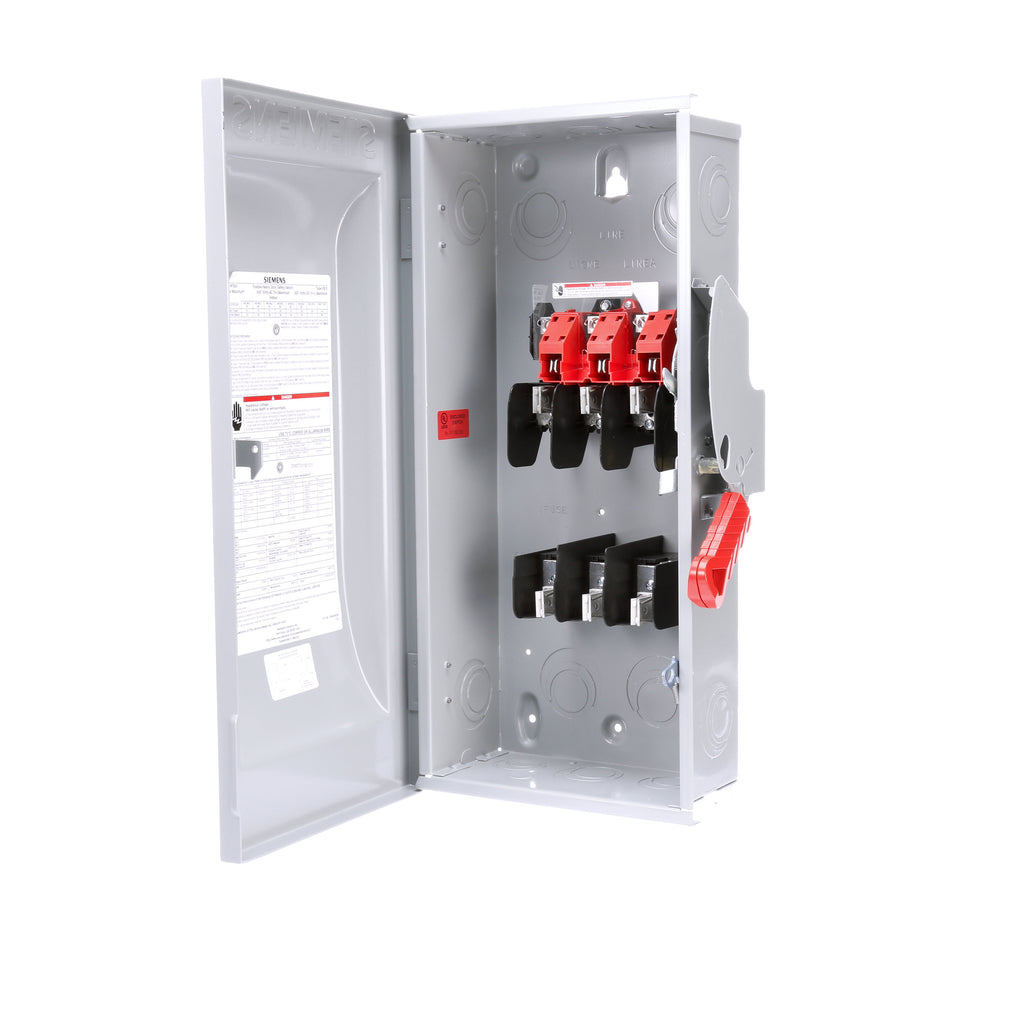

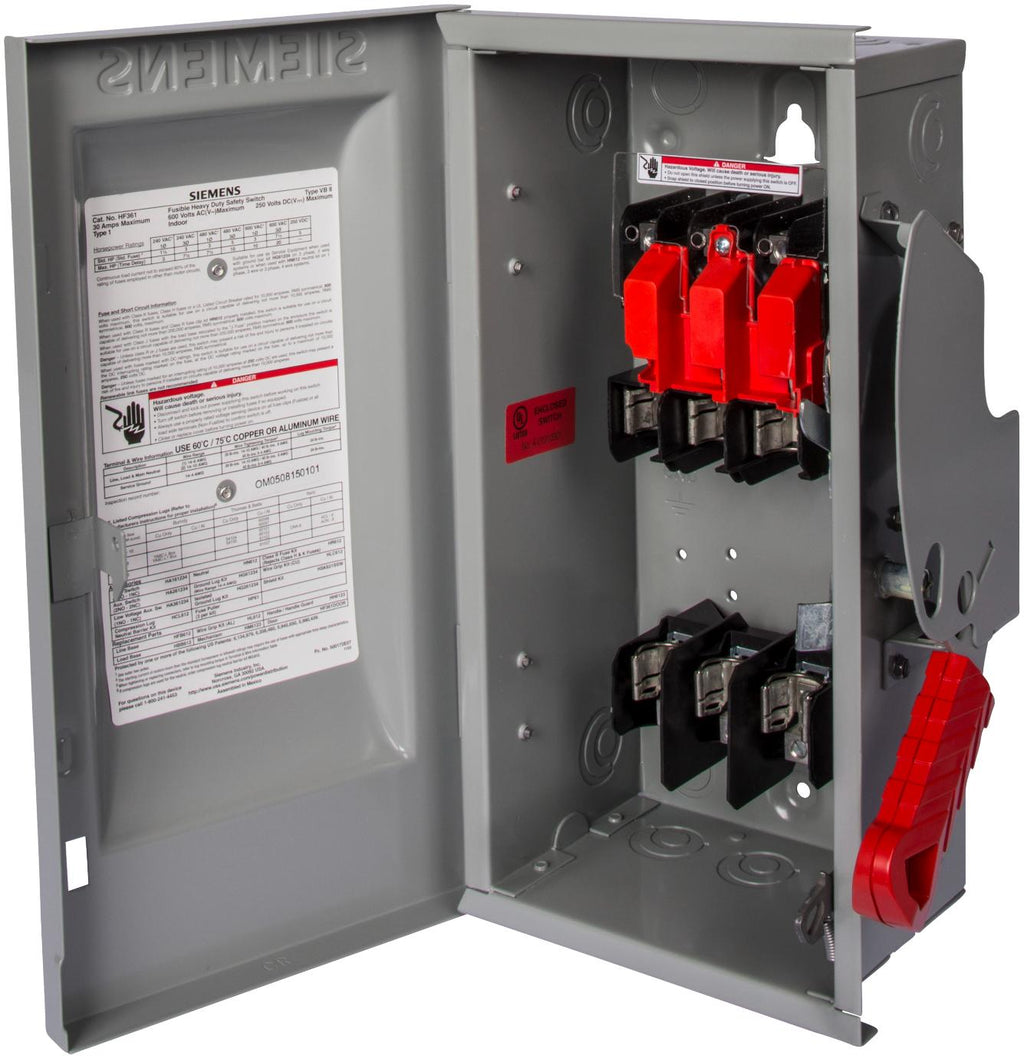

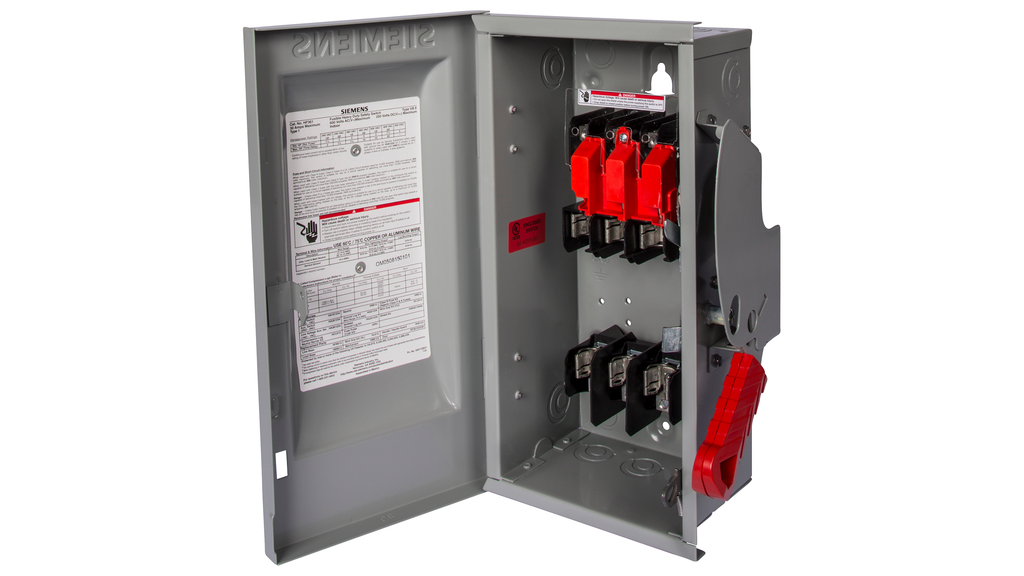

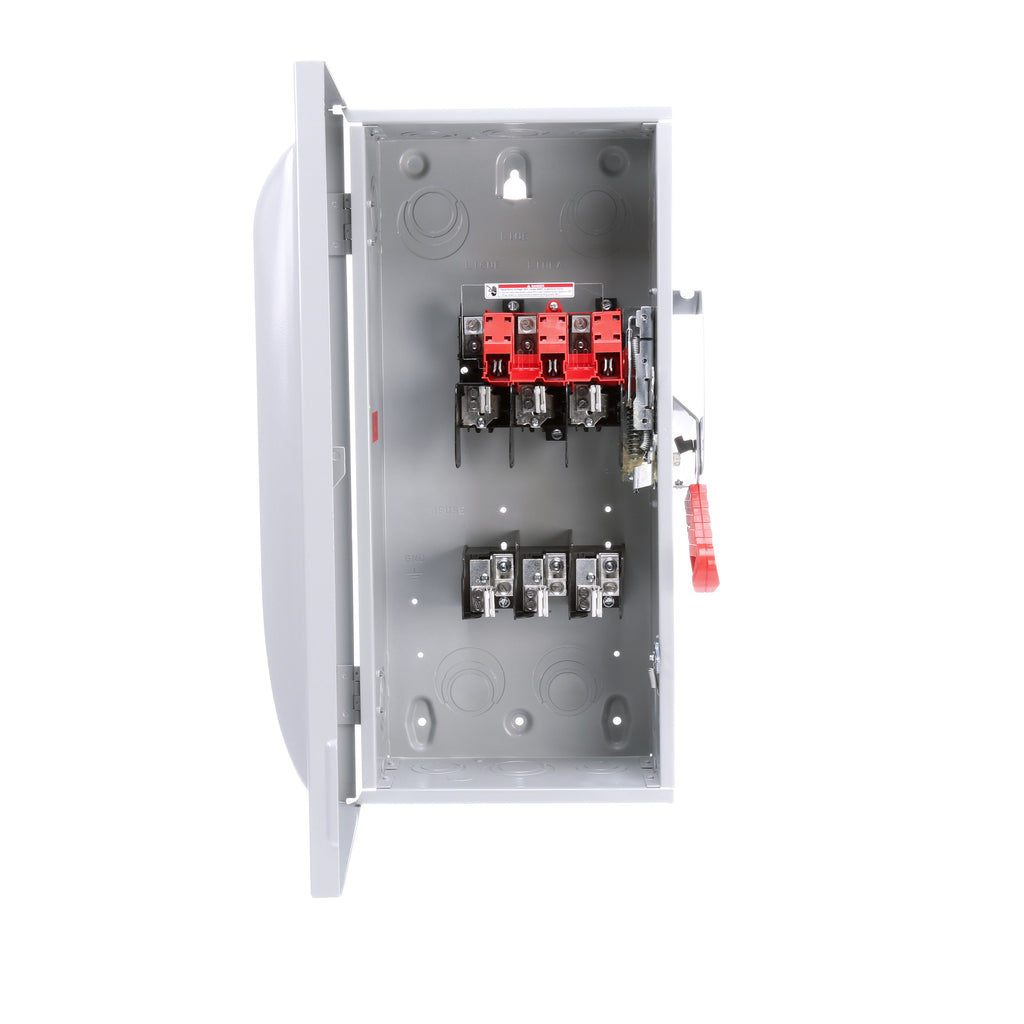

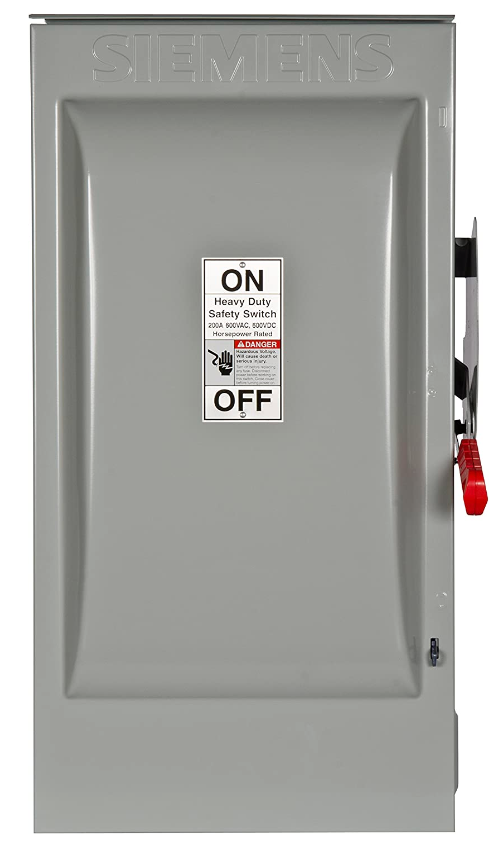

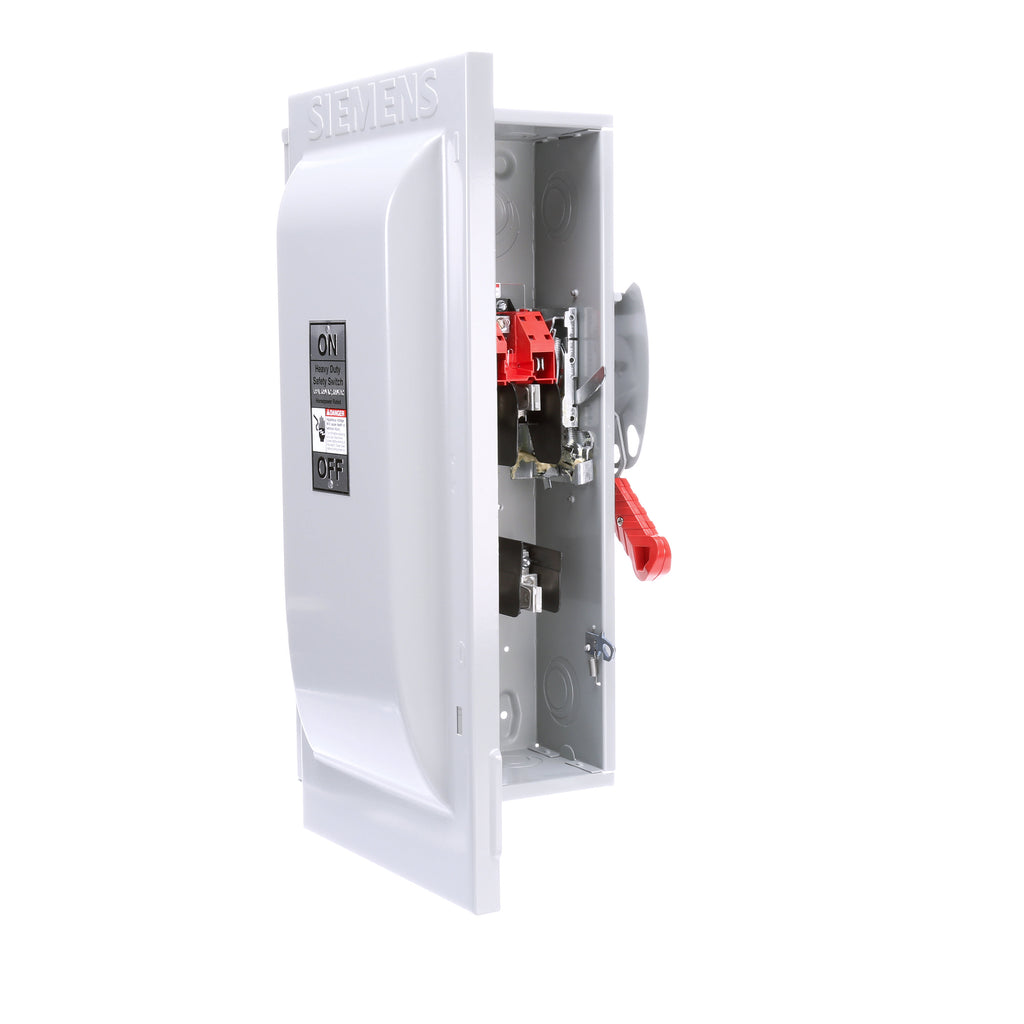

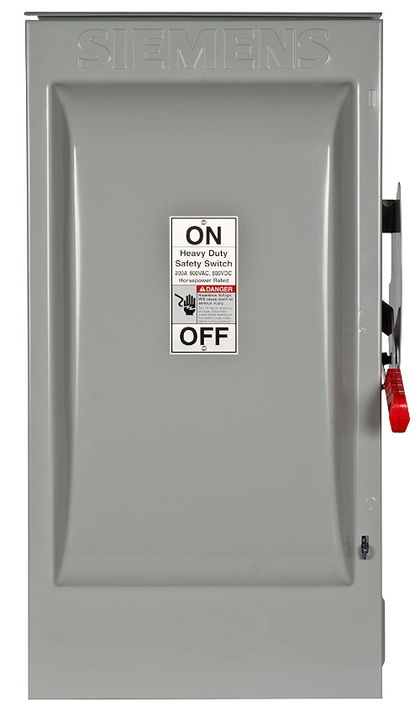

HF363 - Siemens 100 Amp 600V 3-Pole Fusible Heavy Duty Safety Switch, NEMA 1, Indoor, 3-Wire, 75 HP, TC Connection

HF363

HF363 - Siemens Heavy Duty Fusible Safety Switch, 100A rated for 600VAC/600VDC, 3-pole NEMA 1 enclosure.This Siemens HF363 is a heavy duty safety switch featuring quick-make/quick-break operation, double break visible blade design, and highly visible ON/OFF indication. It supports 480/600VAC and 250/600VDC with 3-phase 600V horsepower ratings of 30HP standard and 75HP maximum. UL Listed design meets NEMA KS-1 standards for enclosed switches and is suitable for service entrance equipment.

• Part Number: HF363
• Manufacturer: Siemens
• Amperage: 100A
• Voltage: 600VAC / 600VDC
• Poles: 3
• Type: Fusible
• Enclosure: NEMA 1
• Horsepower Rating (3Ph 600V): 30HP Std / 75HP Max
• Standards: UL98, UL50, NEMA KS-1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HF363
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible Disconnect Switch
• Family : VBII Series
• Type : HF
• Voltage : 600 AC AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1
• Compatible Frames : PGP

Product Data

• UPC : 783643151024
• GTIN : 00783643151024
• Country of Origin : Mexico
• Dimensions : 25.591 x 13.78 x 7.874 inch
• Weight : 20.834 lb
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Certification : UL listed
