2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF362SS

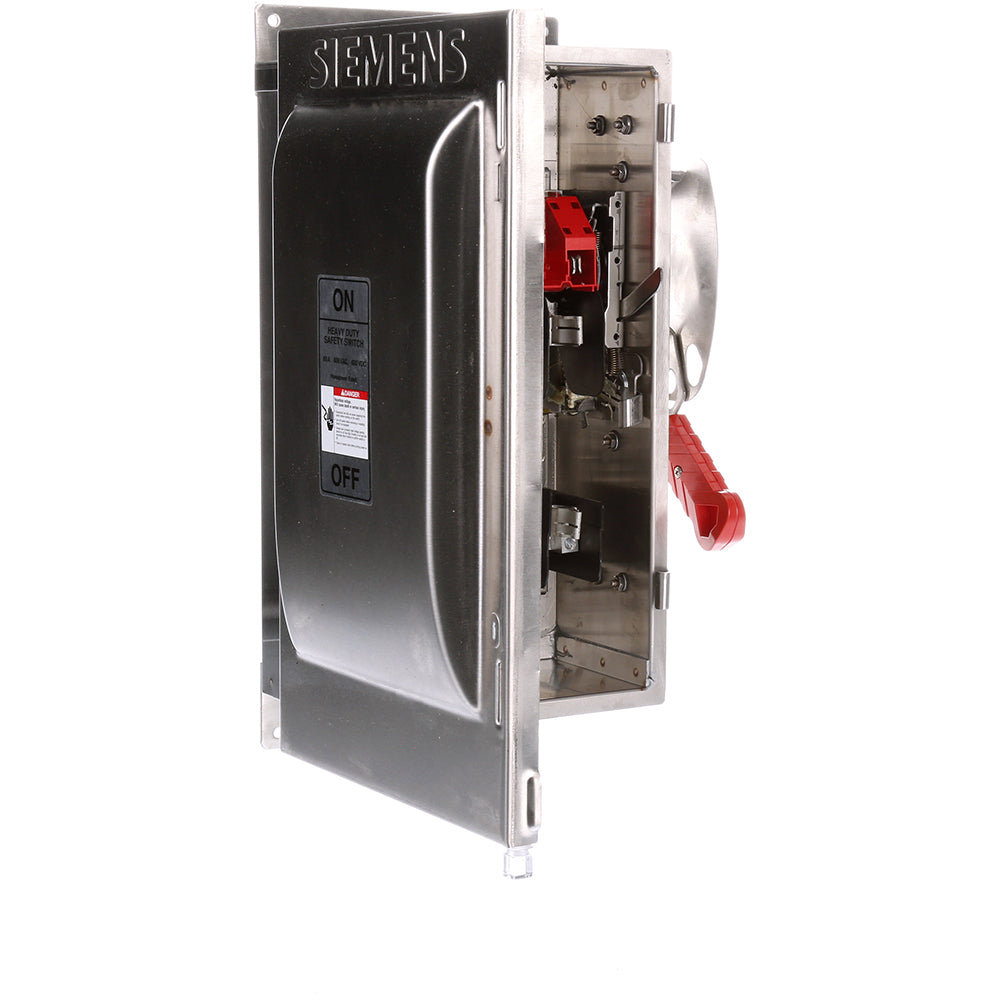

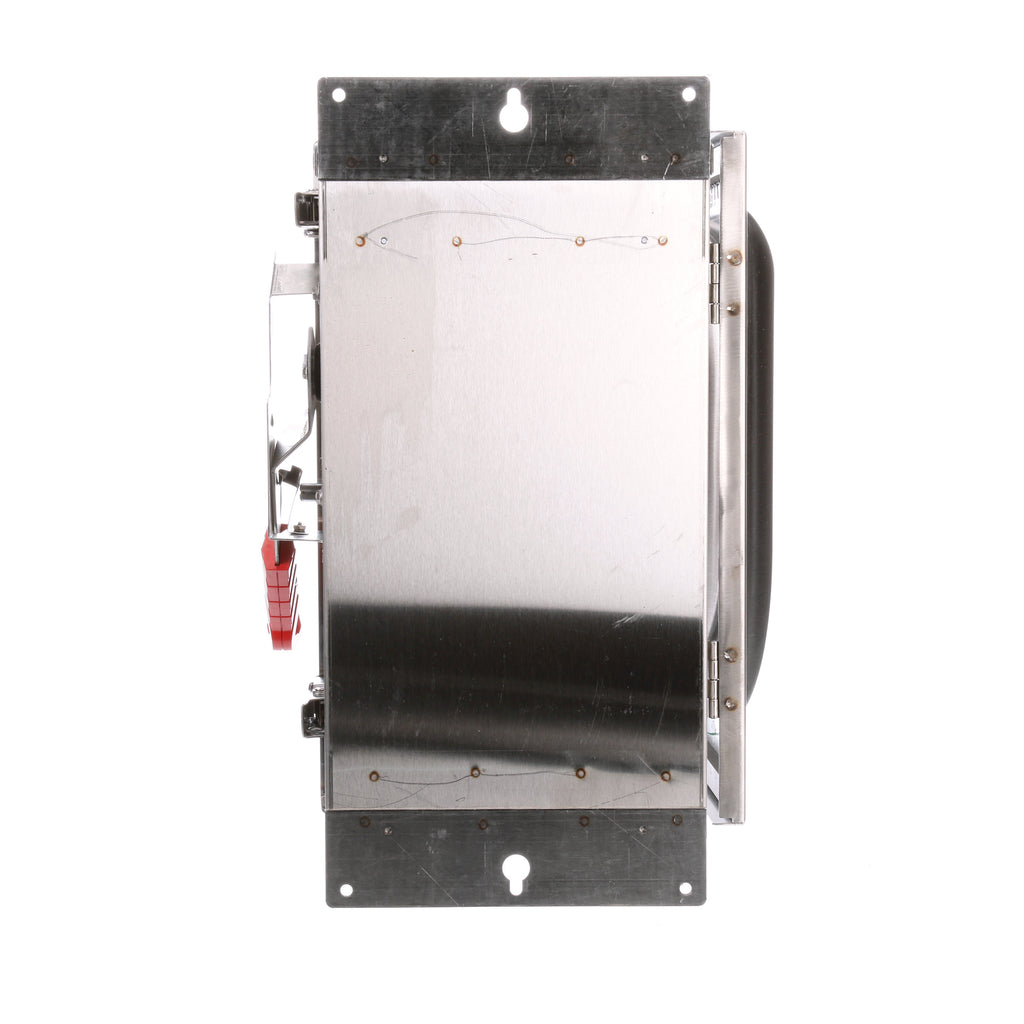

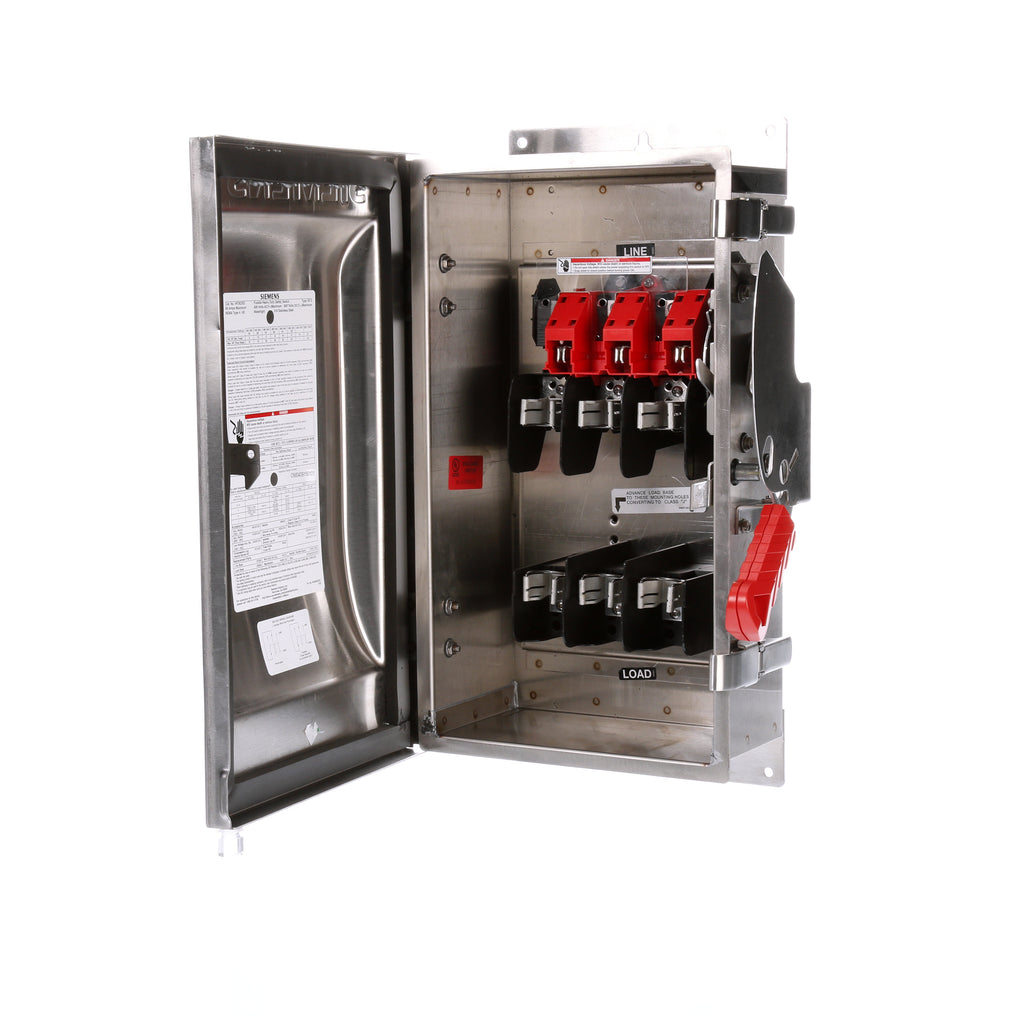

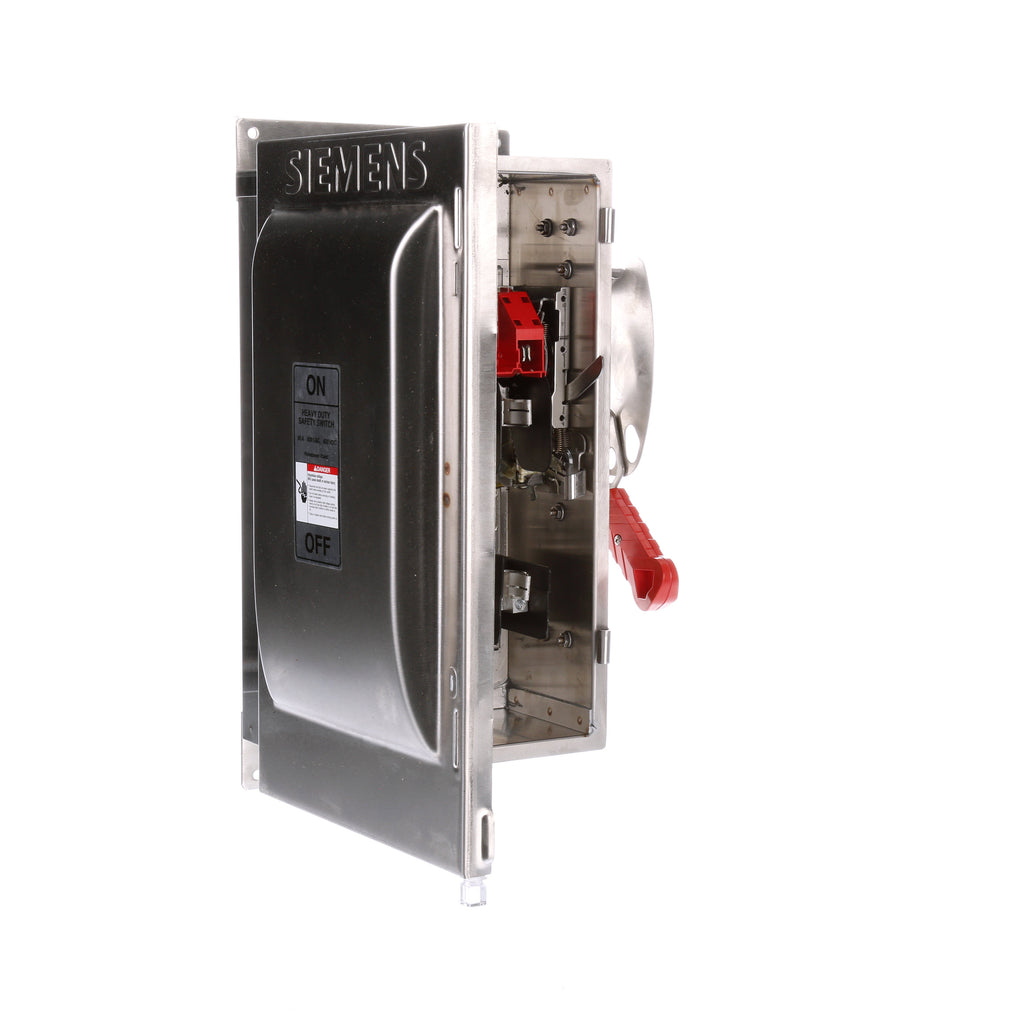

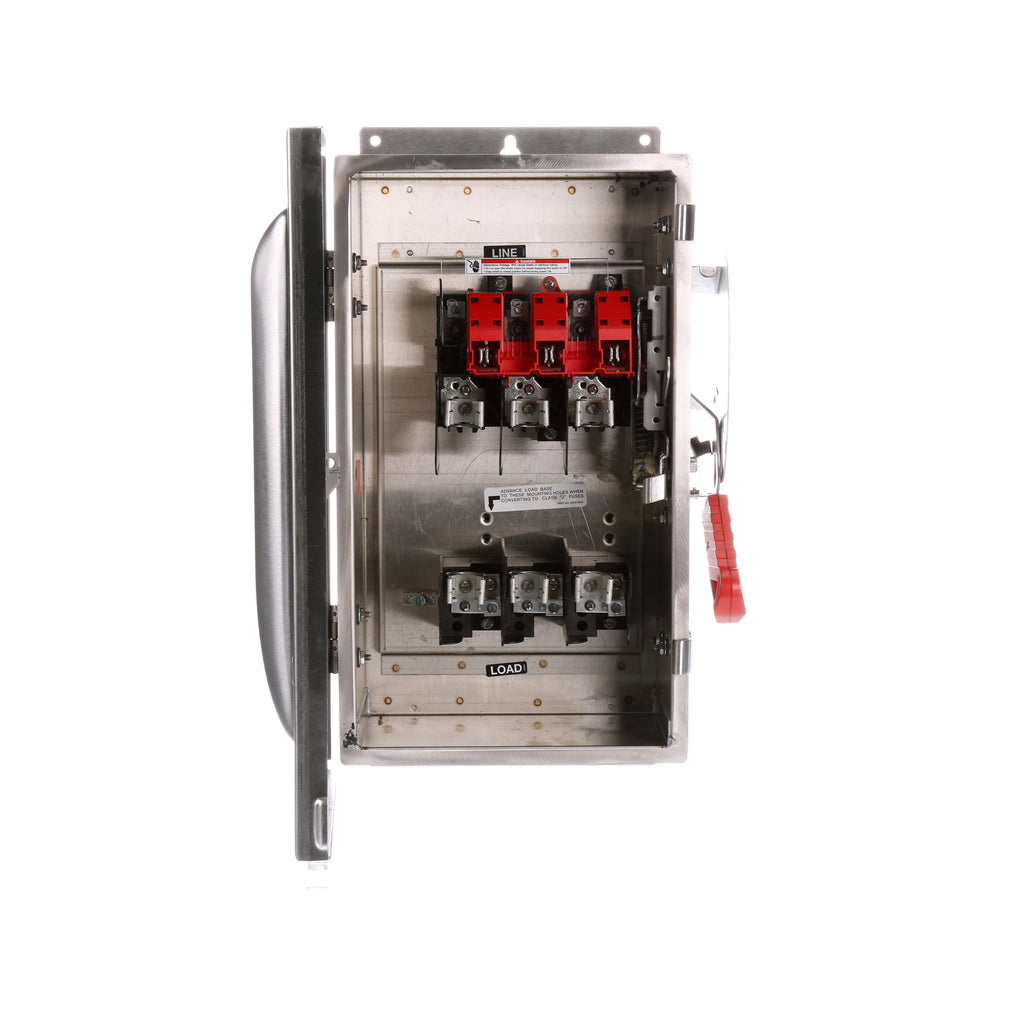

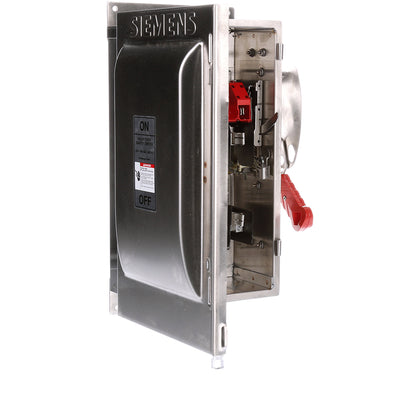

HF362SS is a Siemens 60 Amp, 600 Volt AC, 3-Pole fusible heavy duty safety switch designed for low voltage circuit protection.This switch features a Type VBII enclosed fusible design with a 3-pole, 3-wire configuration housed in a NEMA 4X rated 316 grade stainless steel enclosure. It supports a short circuit current rating of 200 kA and is suitable for surface mounting with lug-type terminals. The device operates at 60 Hz frequency and is UL98 certified, with an ambient temperature range from -29 to 85 degrees Celsius.
- Amperage: 60 A
- Voltage Rating: 600 VAC
- Poles: 3
- Mounting Type: Surface
- Interrupt Rating: 200 kA
- Enclosure: NEMA 4X, 316 Stainless Steel
- Trip Unit: Fusible
- Frequency: 60 Hz
- Terminal Type: Lug
- Certifications: UL98
- Dimensions: Approx. 19.3" H x 9.9" W x 10.5" D
Specifications
- Part Number: HF362SS
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 600 AC AC
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 040892169027
- GTIN : 00040892169027
- Country of Origin : Mexico
- Dimensions : 13.78 x 7.874 x 21.654 inch
- Weight : 2.205
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Certification : UL listed
