HF325NRA - Siemens 400A 240V 3-Pole Fusible Heavy Duty Safety Switch NEMA 3R Surface Mount

HF325NRA

HF325NRA is a Siemens heavy duty fusible safety switch rated 400 amperes at 240VAC, designed for service entrance and load disconnection in residential, commercial, industrial, and outdoor applications.

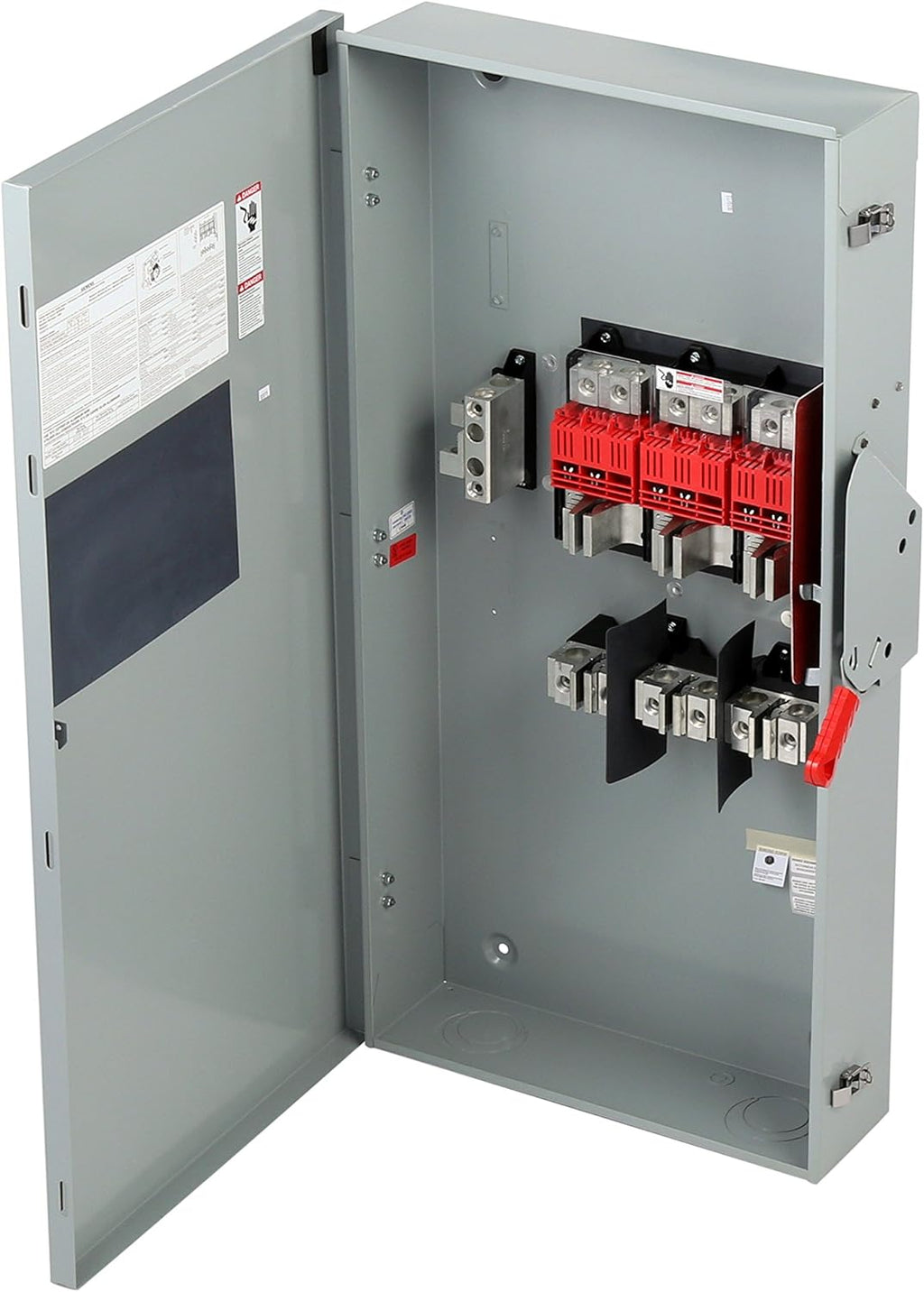

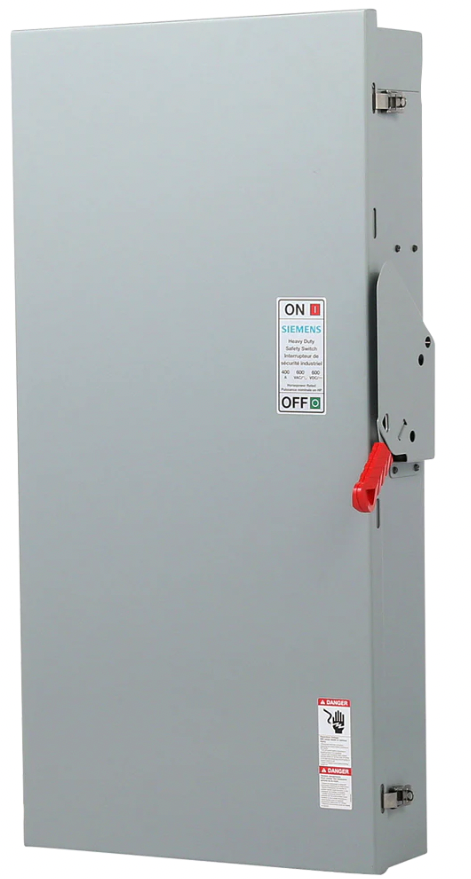

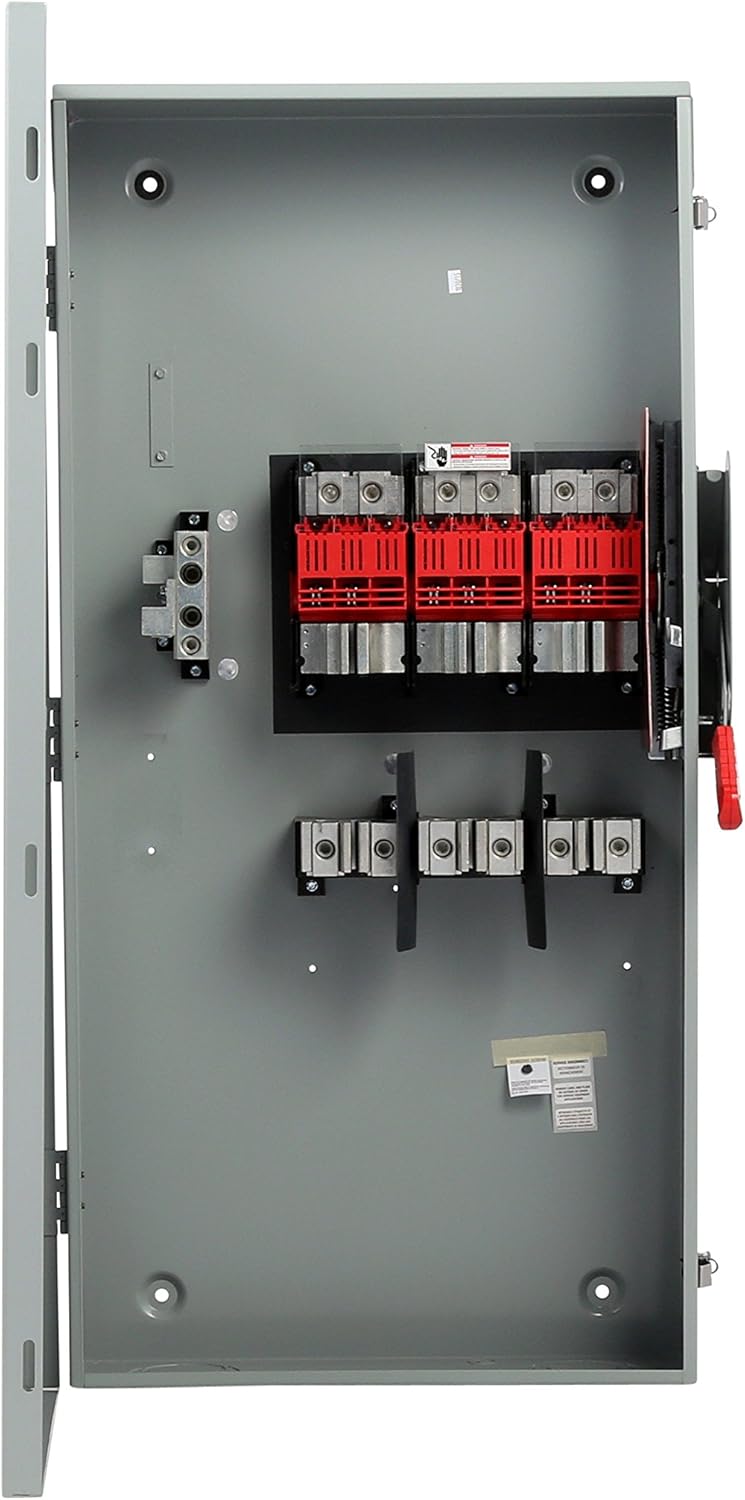

This Type VBII fusible disconnect switch features a 3-pole, 4-wire configuration with mechanical lugs for terminal connection. The switch includes quick-make and quick-break operating mechanism, visible blade design with double break switching action, arc chutes for heat dissipation, and a highly visible red handle grip designed for hook stick operation. It is housed in a NEMA 3R steel enclosure suitable for outdoor use and surface mounting. The switch includes a defeatable dual cover interlock and center punch for field drilling to allow padlocking.

• Amperage Rating: 400A
• Voltage Rating: 240VAC
• Poles: 3
• Wires: 4
• Enclosure Type: NEMA 3R
• Mounting Type: Surface
• Terminal Connection: Mechanical Lugs
• Fusibility: Fusible
• Horsepower: 50 hp, 125 hp
• Operating Temperature: -29 to 85 degrees C
• Certifications: UL listed, CSA listed
• Wire Gauge: AWG 1/0 to 750 KCmil (Copper or Aluminum)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HF325NRA
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible Disconnect Switch
• Family : VBII Series
• Type : HF
• Voltage : 240 AC
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 3R
• Amperage Maximum : 400
• Amperage Minimum : 200

Product Data

• UPC : 887621872502
• GTIN : 00887621872502
• Country of Origin : Mexico
• Dimensions : 6.693 x 22.047 x 45.276 inch
• Weight : 94.583 lb
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Certification : UL listed
