Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF321NX

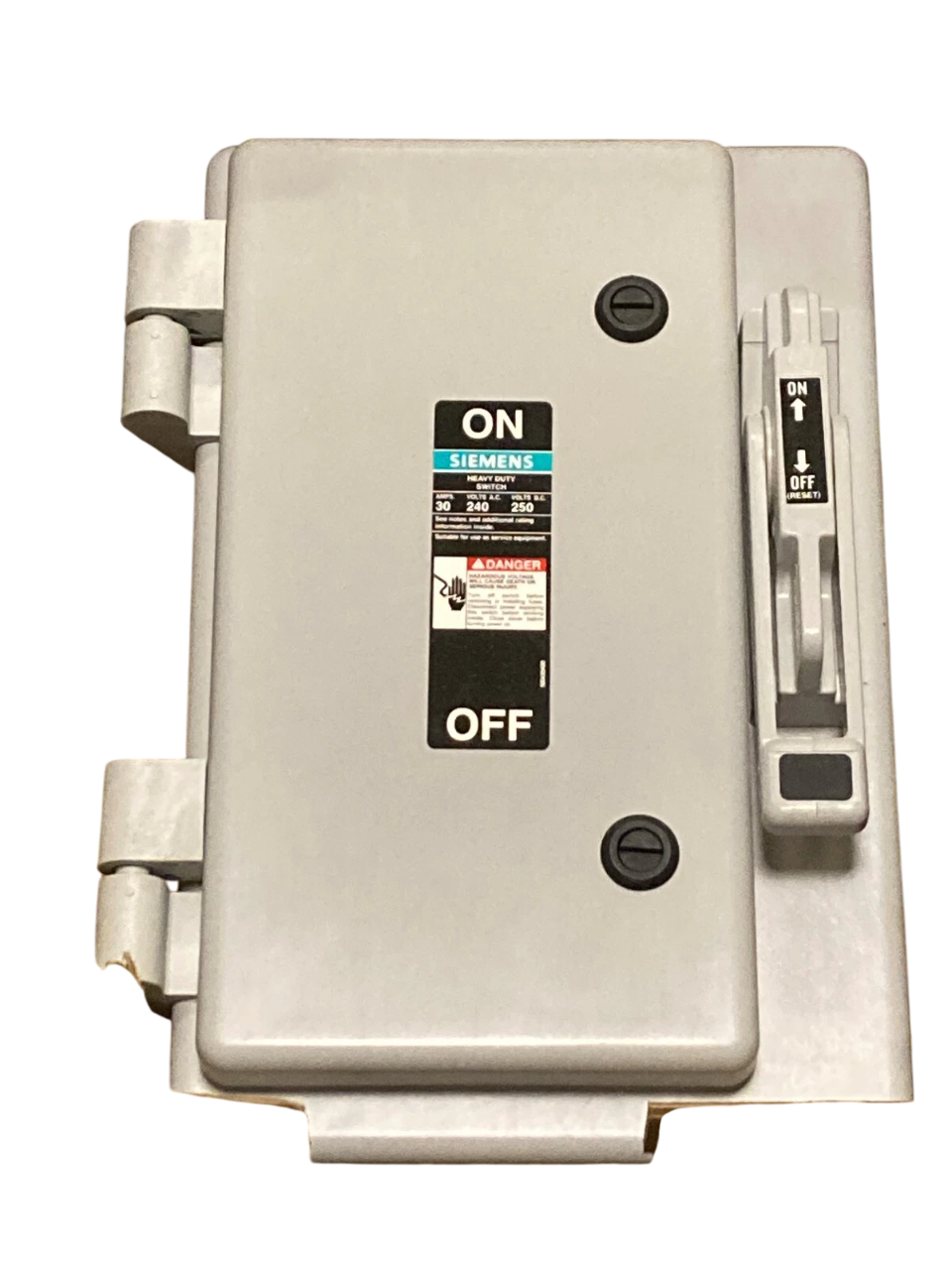

HF321NX is a Siemens 30 Amp, 240 VAC/250 VDC, 3-Pole, 4-Wire fusible heavy duty safety switch designed for surface mounting with NEMA 4X enclosure.This enclosed safety switch features a Type VBII non-metallic single throw design with a highly visible red handle for easy operation and enhanced safety. It is rated for 30 Amps and 240 VAC/250 VDC, suitable for low voltage applications requiring a robust disconnect solution. The switch includes a neutral and is UL listed for safety compliance.
- Amperage: 30 Amps
- Voltage: 240 VAC / 250 VDC
- Poles: 3 Pole
- Mounting Type: Surface
- Interrupt Rating: Heavy Duty
- Enclosure: NEMA 4X
- Switch Type: Fusible, Single Throw
- Handle: Red, easy-grip
- Standards: UL Listed
- Series/Frame: Type VBII
Specifications
- Part Number: HF321NX
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 240 AC
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Fuse Class : R
- Wire : 4
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
- Compatible Frames : MXP
Product Data
- UPC : 783643451650
- GTIN : 00783643451650
- Country of Origin : Mexico
- Dimensions : 20.866 x 14.961 x 0.787 inch
- Weight : 22.046
- Certification : UL listed
