Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF224NR

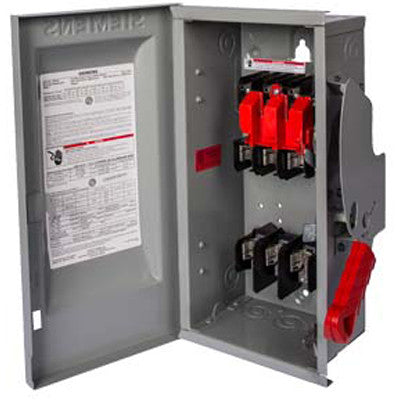

HF224NR - Siemens Heavy Duty Safety Switch, Type VBII Enclosed Fusible, 2-Pole, 200A, 240VAC, NEMA 3R outdoor enclosure with solid neutral.This Siemens HF224NR is a fusible heavy duty low voltage single throw safety switch rated for 200A at 240VAC, featuring 2 poles, 2 fuses and solid neutral, DPST contact form, surface mounting, and lug terminals in a steel NEMA 3R enclosure.
- Part Number: HF224NR
- Manufacturer: Siemens
- Type: Type VBII Enclosed Fusible Heavy Duty Low Voltage Single Throw
- Amperage Rating: 200A
- Voltage Rating: 240VAC
- Number of Poles: 2
- Number of Wires: 3 (2 fuses, solid neutral)
- Enclosure Type: NEMA 3R
- Mounting Type: Surface
- Contact Form: DPST
- Short Circuit Current Rating: 200kA (with Class R, T, J fuses)
- Horsepower Rating: 15HP (1-phase 240V)
Specifications
- Part Number: HF224NR
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 240 AC
- Amperage : 200
- Phase : 1
- Poles : 2
- AIC rating : 200kA@240V
- Fuse Class : R
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
- Compatible Frames : MHP
Product Data
- UPC : 783643150638
- GTIN : 00783643150638
- Country of Origin : Mexico
- Dimensions : 33.858 x 18.898 x 9.843 inch
- Weight : 41.094
- Certification : UL listed
