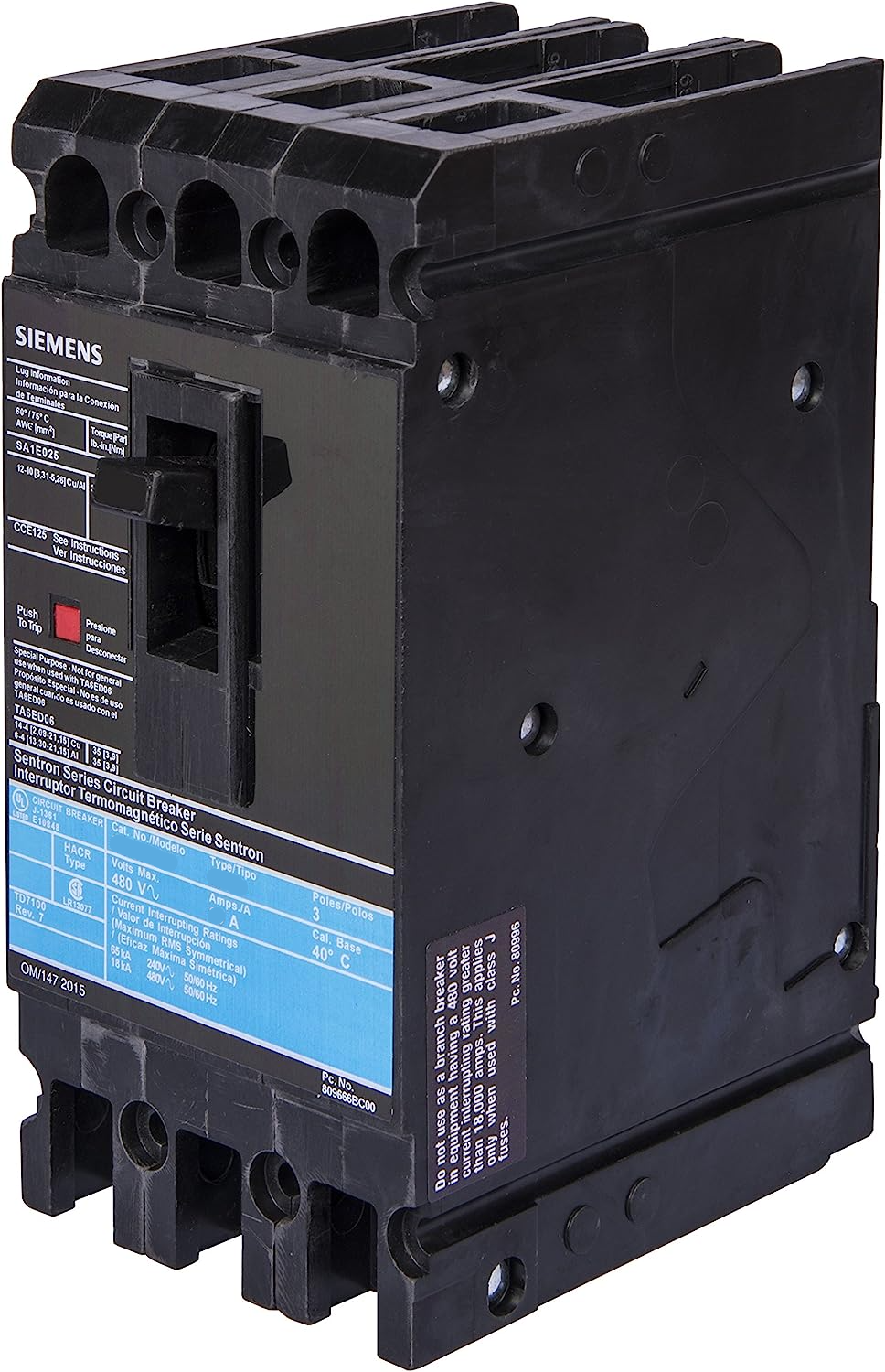

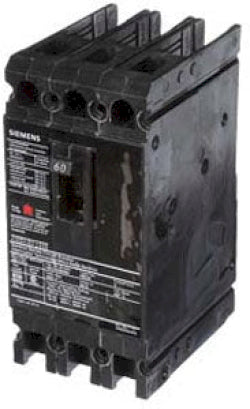

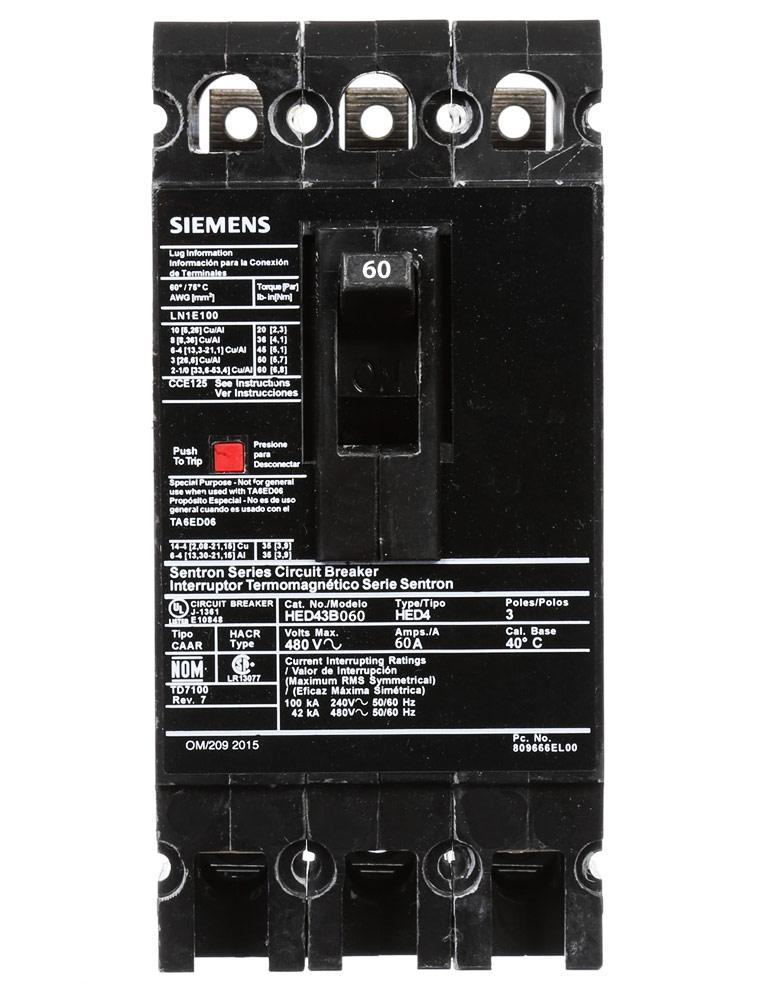

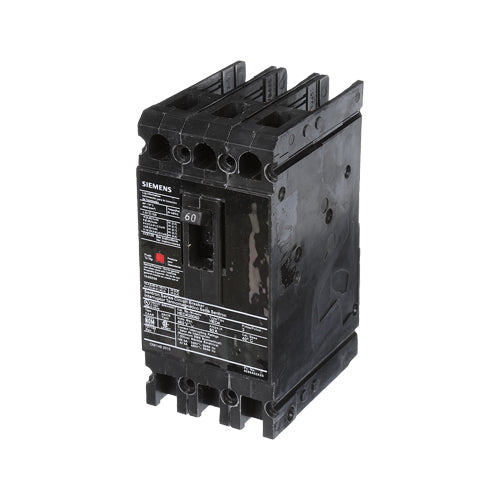

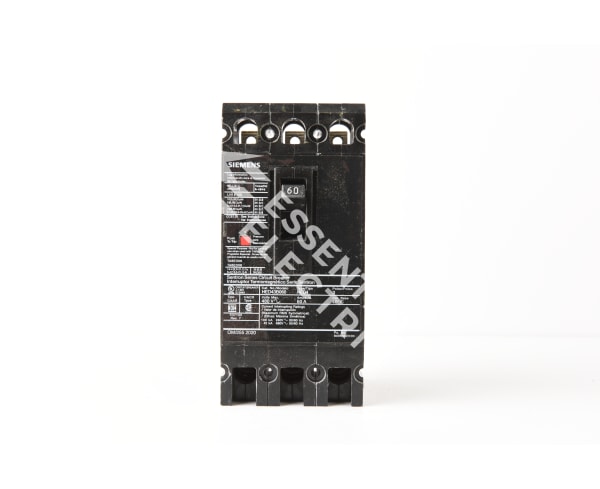

HED43B060 - Siemens 60A 480V 3 Pole Bolt-On Molded Case Circuit Breaker

HED43B060

HED43B060 is a Siemens 3 pole molded case circuit breaker rated for 60 amps and 480 volts AC with bolt-on mounting.This Siemens HED series circuit breaker features a 3-pole configuration with a 60 ampere rating and a voltage rating of 480VAC. It has a bolt-on mounting type and offers a high interrupting capacity of 42kA at 480V. The breaker includes a non-interchangeable trip unit with long-time and instantaneous trip functions and load side lug terminals. It meets UL 489 and IEC 60947-2 standards for safety and performance.

Key Specifications
• Manufacturer: Siemens
• Part Number: HED43B060
• Series/Frame: HED
• Amperage: 60A
• Voltage Rating: 480VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 42kA at 480V
• Trip Unit: Non-interchangeable, thermal magnetic
• Certifications: UL 489, IEC 60947-2
• Connection Type: Load side lug terminals
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HED43B060
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HED
• Voltage : 480
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 42kA@480V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic
• Phase Connection : ABC



Product Data

• UPC : 783643210172
• GTIN : 00783643210172
• Country of Origin : Mexico
• Dimensions : 3 in x 6.34 in
• Weight : 3.75
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
