Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HED42B125L

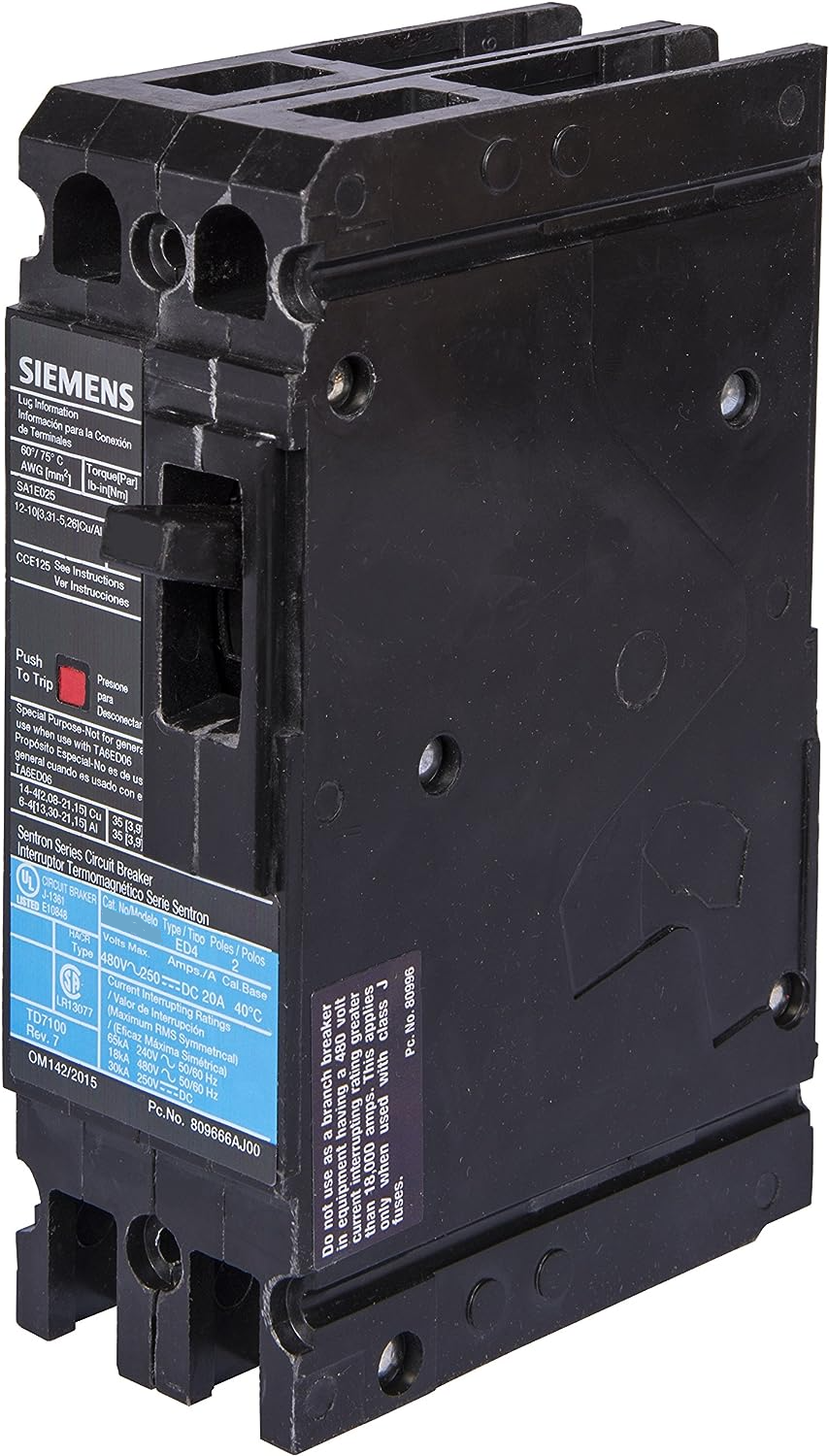

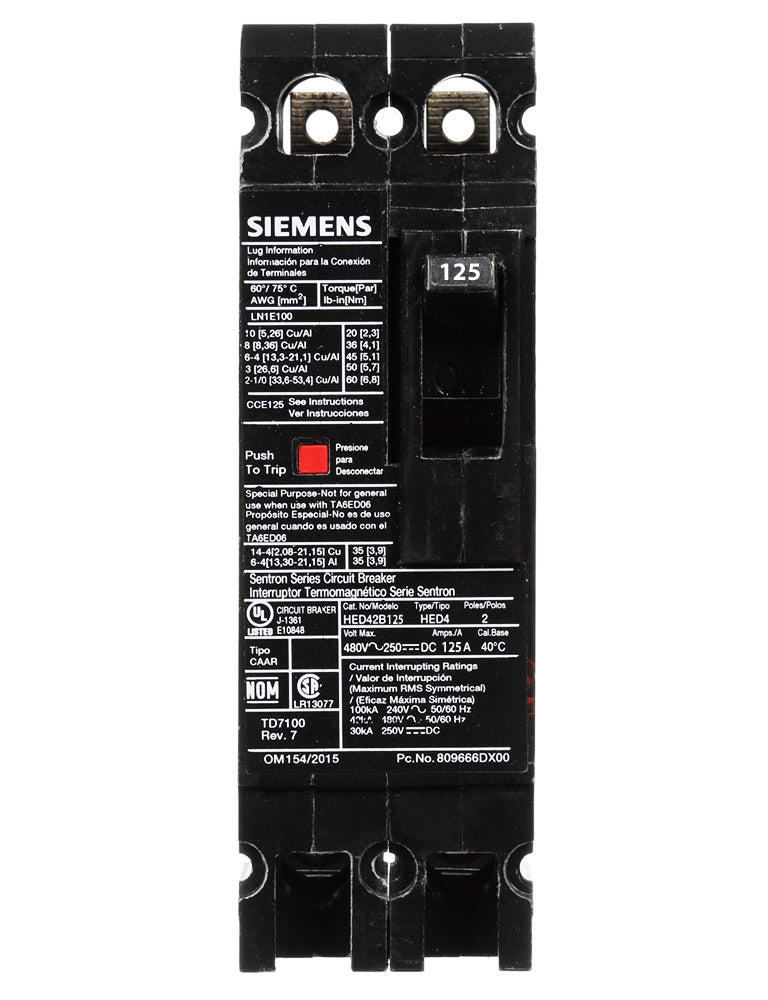

HED42B125L is a Siemens Sentron Series 2 pole, 125A, 480V molded case circuit breaker with a high interrupting capacity of 42kAIC at 480V. This bolt-on breaker features a non-interchangeable trip unit and is designed for reliable thermal magnetic protection in commercial and industrial applications. Engineered for durability and safety, the HED42B125L is built on the ED frame and rated for 40°C operation. It includes load side lug terminals and is suitable for use in systems requiring high breaking capacity and dependable circuit protection.
- Part Number: HED42B125L
- Manufacturer: Siemens
- Series: Sentron
- Frame: ED
- Poles: 2
- Amperage: 125A
- Voltage: 480V
- Interrupt Rating: 42kAIC @ 480V
- Mounting Type: Bolt-On
- Trip Unit: Non-Interchangeable
- Protection Type: Thermal Magnetic
- Standards: UL 489 Listed
Specifications
- Part Number: HED42B125L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HED
- Voltage : 480
- Amperage : 110
- Phase : 1
- Poles : 2
- AIC rating : 42kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : ED Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643090279
- GTIN : 00783643090279
- Country of Origin : Mexico
- Weight : 2.712
- Certification : Ul Listed
