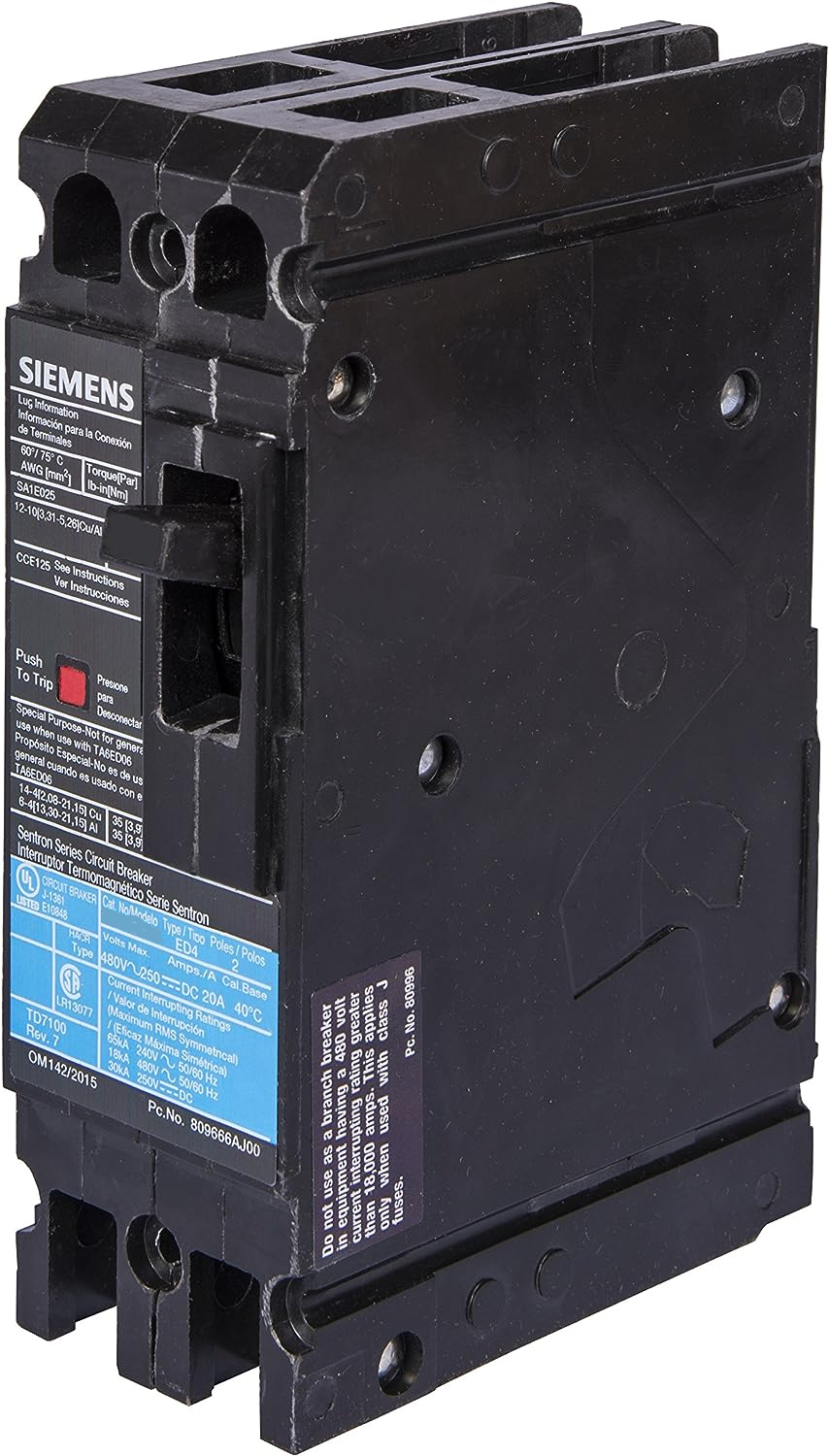

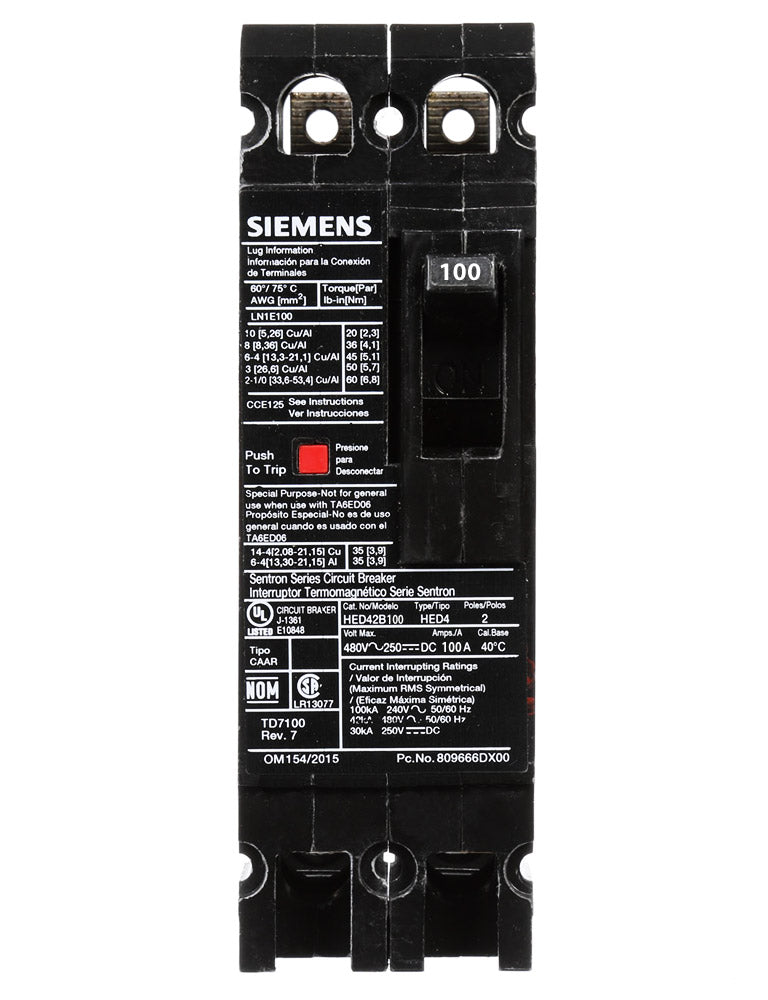

HED42B100L - Siemens 100A 480V 2 Pole Molded Case Circuit Breaker

HED42B100L

HED42B100L is a Siemens molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This breaker features a 2 pole configuration, 100 ampere current rating, and a voltage rating of 480V AC. It is built with a thermal magnetic trip unit and offers high breaking capacity for demanding applications. The HED42B100L is part of the Sentron Series and is designed for bolt-on mounting, providing secure and stable installation. It is suitable for use in environments requiring robust circuit protection with a non-interchangeable trip unit and line and load side connections. The breaker is rated for 42kA interrupting capacity at 480V, ensuring safety and reliability under fault conditions.

• Part Number: HED42B100L
• Manufacturer: Siemens
• Series: Sentron
• Frame: ED
• Amperage: 100A
• Voltage: 480V AC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 42kA @ 480V
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Connection: Line and Load Side
• Application: Industrial and Commercial Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HED42B100L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HED
• Voltage : 480
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 42kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : ED Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643090255
• GTIN : 00783643090255
• Country of Origin : Mexico
• Weight : 2.712
• Certification : Ul Listed
