Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HED42B090L

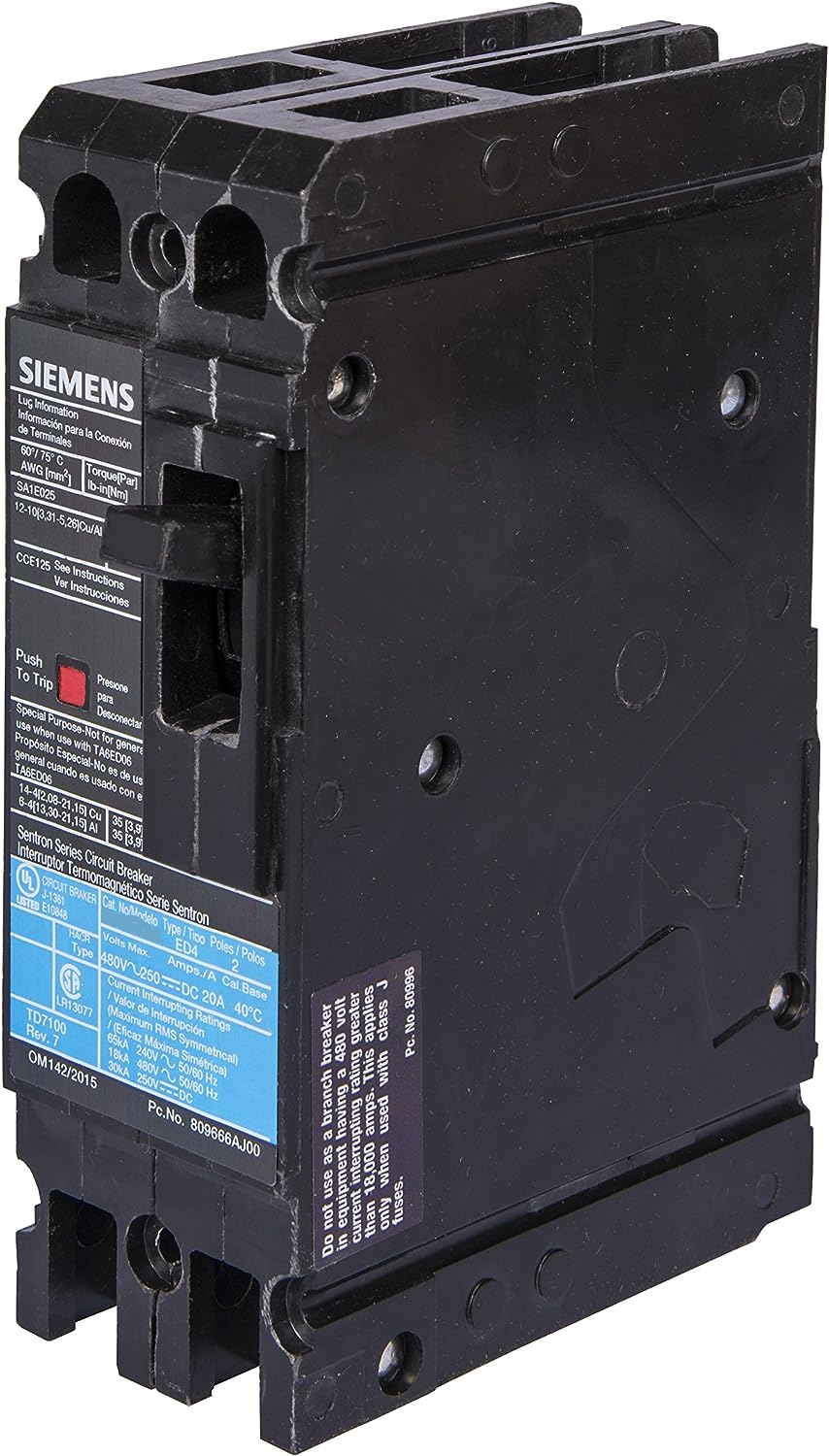

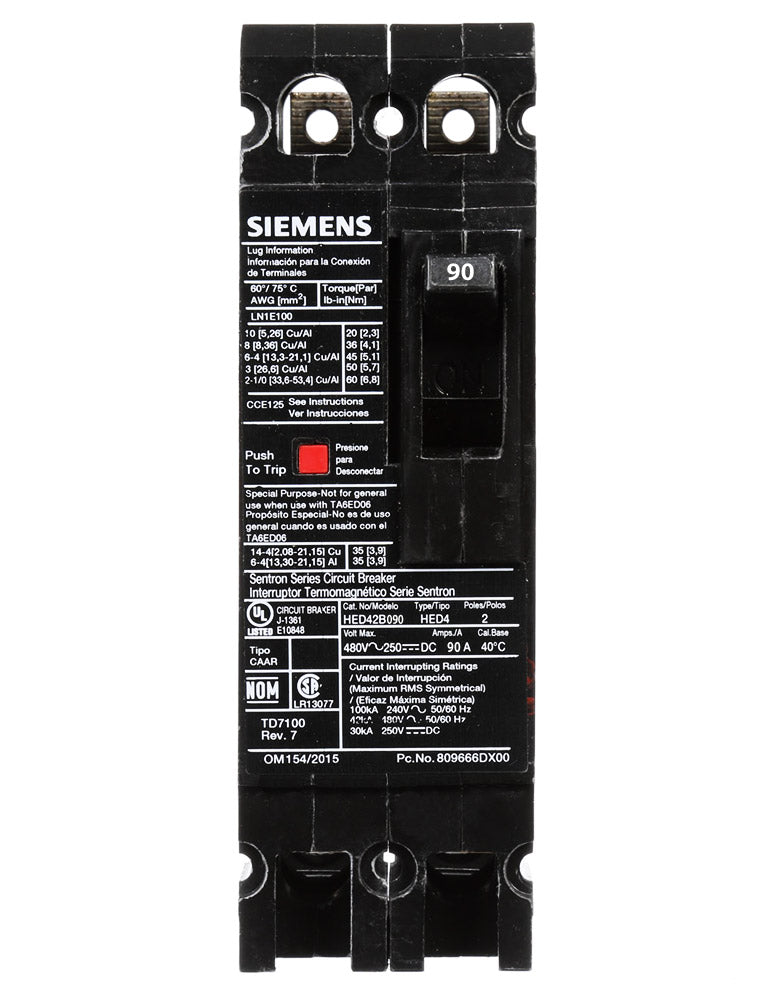

HED42B090L is a Siemens molded case circuit breaker designed for reliable circuit protection in electrical systems.This 2 pole, 90 amp breaker operates at 480 volts and features a bolt-on mounting type. It belongs to the HED frame series and provides thermal magnetic trip protection for overload and short circuit conditions. The breaker has an interrupting rating of up to 65kA at 480 VAC, ensuring high fault current interruption capability. It is suitable for single-phase applications and certified for industrial use.
- Key Specifications
- Amperage: 90 Amp
- Voltage Rating: 480 Volt AC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupting Rating: 65kA at 480 VAC
- Frame/Series: HED
- Trip Unit: Thermal Magnetic
- Phase: Single Phase
- Certifications: Industry Standard Certified
- Part Number: HED42B090L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HED
- Voltage : 480
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 42kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : ED Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 078364309024
- GTIN : 00783643090248
- Country of Origin : Mexico
- Weight : 2.712
- Certification : Ul Listed
