Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HED42B080L

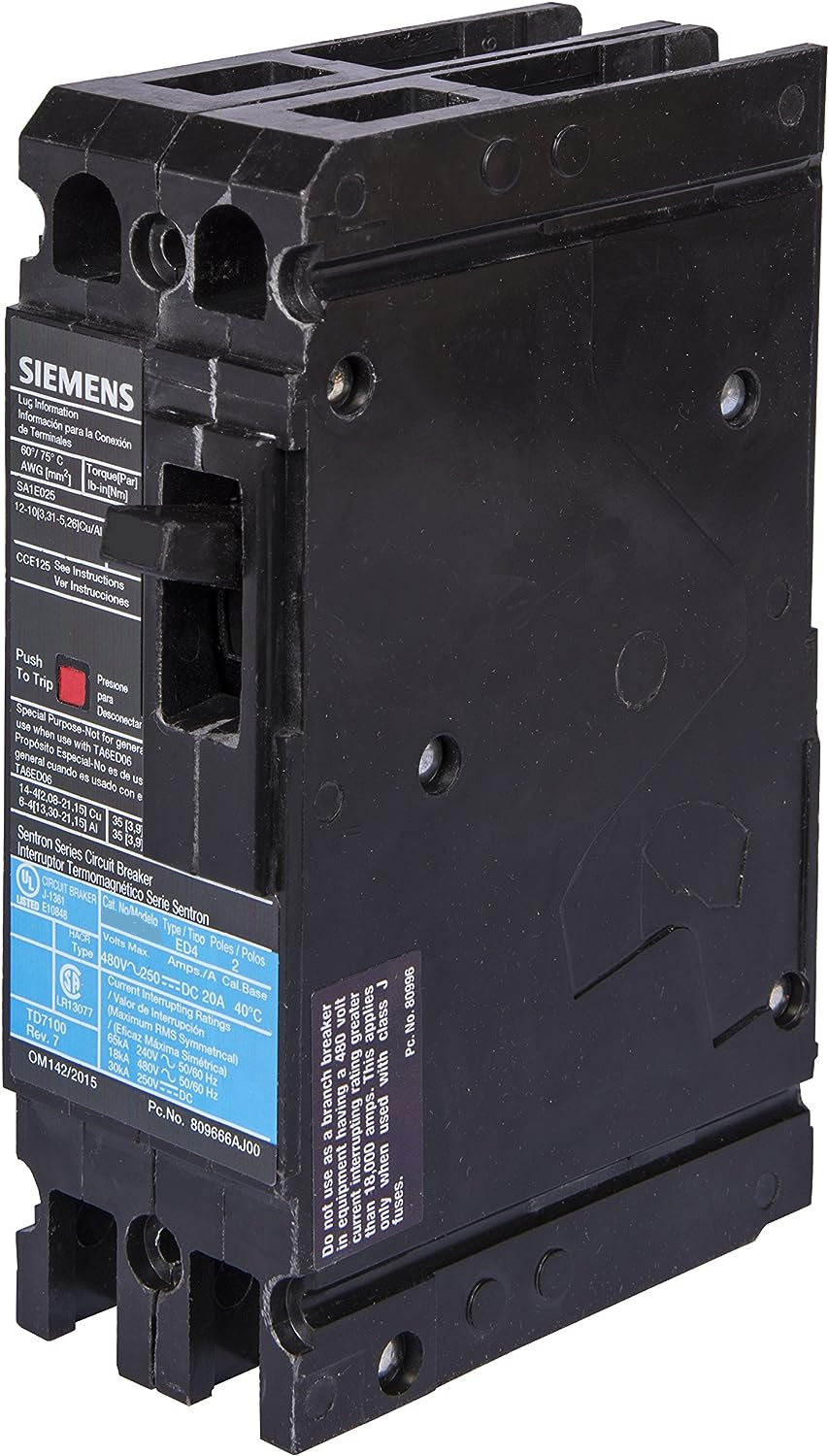

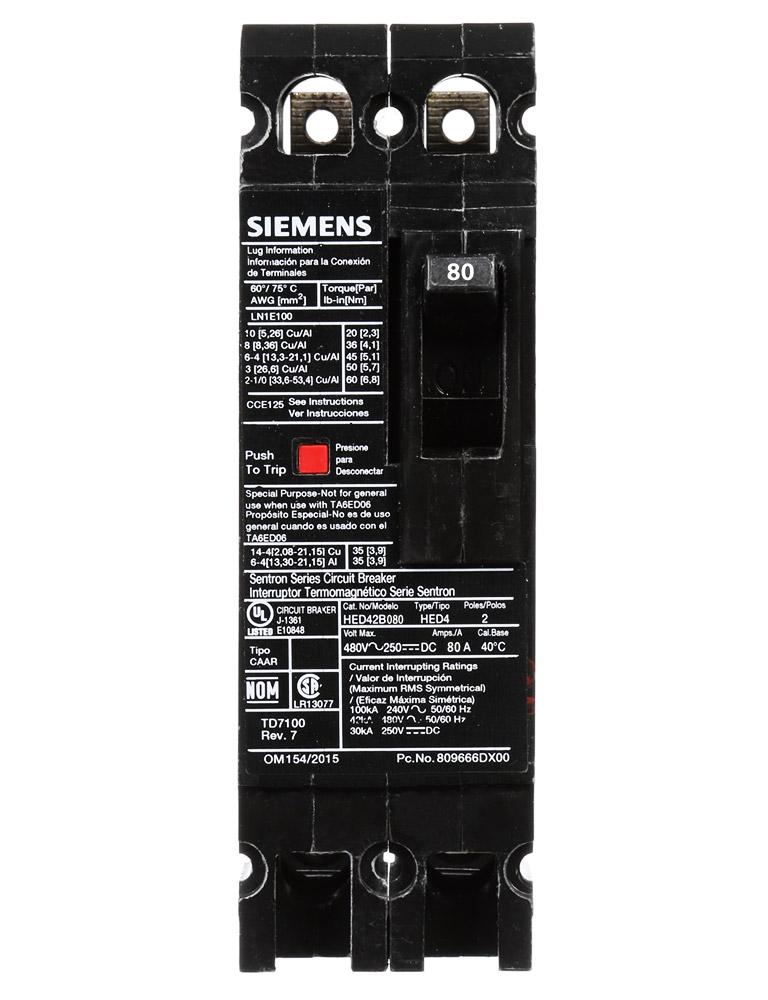

HED42B080L is a Siemens 2-pole molded case circuit breaker rated for 80 amps and 480 volts with a 42 kA interrupt rating. It features thermal magnetic trip protection and is part of the ED frame series.HED42B080L provides reliable overload and short circuit protection for low voltage applications. It includes line/load lugs installed for easy connection and operates at temperatures up to 40C. This breaker is designed for feed-thru mounting and complies with industry certifications for safety and performance.
- Key Specifications
- Amperage: 80 Amps
- Voltage Rating: 480 VAC
- Number of Poles: 2
- Interrupt Rating: 42 kA
- Frame/Series: ED Frame, Sentron Series
- Trip Unit: Thermal Magnetic
- Mounting Type: Feed-Thru
- Operating Temperature: 40C
- Line/Load Lugs Installed
- Frequency: 50/60 Hz
- Phase: Single Phase
- Certifications: Industry Standard Compliant
Specifications
- Part Number: HED42B080L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HED
- Voltage : 480
- Amperage : 80
- Phase : 1
- Poles : 2
- AIC rating : 42kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : ED Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643090231
- GTIN : 00783643090231
- Country of Origin : Mexico
- Weight : 2.712
- Certification : Ul Listed
