Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HED41B090L

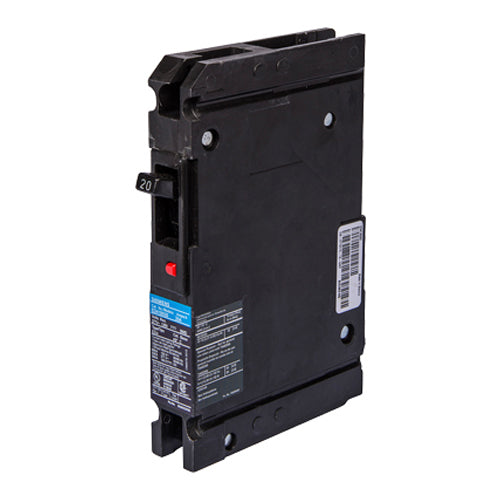

HED41B090L is a Siemens thermal magnetic molded case circuit breaker designed for reliable single-pole protection in electrical circuits.This breaker features a 90 ampere rating at 40°C, supports 277 VAC and 125 VDC voltages, and has a 1-pole configuration with feed-thru mounting style. It provides a high interrupting rating of 100 kiloamperes at 120 VAC, ensuring robust short-circuit protection. The trip unit offers long-time and instantaneous (LI) trip functions for precise circuit protection.
- Amperage: 90 Amps
- Voltage: 277 VAC / 125 VDC
- Poles: 1
- Mounting Type: Feed-Thru
- Interrupt Rating: 100 kA at 120 VAC
- Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous) functions
- Breaker Type: Molded Case Circuit Breaker
- Manufacturer: Siemens
Specifications
- Part Number: HED41B090L
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HED
- Voltage : 277
- Amperage : 90
- Phase : 1
- Poles : 1
- AIC rating : 25kA@277V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ED Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643090118
- GTIN : 00783643090118
- Country of Origin : Mexico
- Dimensions : 4.724 x 0.787 x 5.906 inch
- Weight : 2.998
