Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

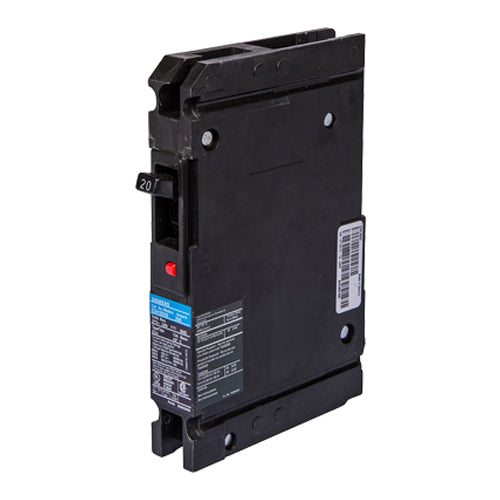

HED41B070
HED41B070 is a Siemens Sentron Series molded case circuit breaker designed for industrial and commercial power distribution applications with high interrupting capacity protection. This 1-pole breaker features thermal-magnetic overload and short circuit protection in a compact ED frame format suitable for bolt-on installation in panelboards and load centers. The breaker combines reliable performance with a non-interchangeable trip unit design and load-side lug terminals for secure connections.
- Amperage Rating: 70A
- Voltage Rating: 277V AC
- Number of Poles: 1
- Interrupt Rating: 25kA at 277V
- Frame Type: ED
- Mounting: Bolt-On
- Series: HED4 Sentron
- Protection Type: Thermal-Magnetic Overload and Short Circuit
- Terminal Type: Load Lugs
- Ambient Temperature Rating: 40 Degrees C
Specifications
- Part Number: HED41B070
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HED
- Voltage : 277
- Amperage : 70
- Phase : 1
- Poles : 1
- AIC rating : 25kA@277V
- Connection : Lug In Panelboard
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Load Side Lug
- Frame Size : 125A/ED
- MCM Size : Min. Wire Size 10 AWG Max. Wire Size 4 AWG
- Breaker Type : High Interrupting Capacity
- Protection : Thermal Magnetic
- Phase Connection : Any
Product Data
- UPC : 078364320990
- GTIN : 00783643209909
- Country of Origin : Mexico
- Weight : 1.25
- Panel Type : SB Switchboards, Sentron Panelboards
- Standards : IEC 60947-2, UL 489
