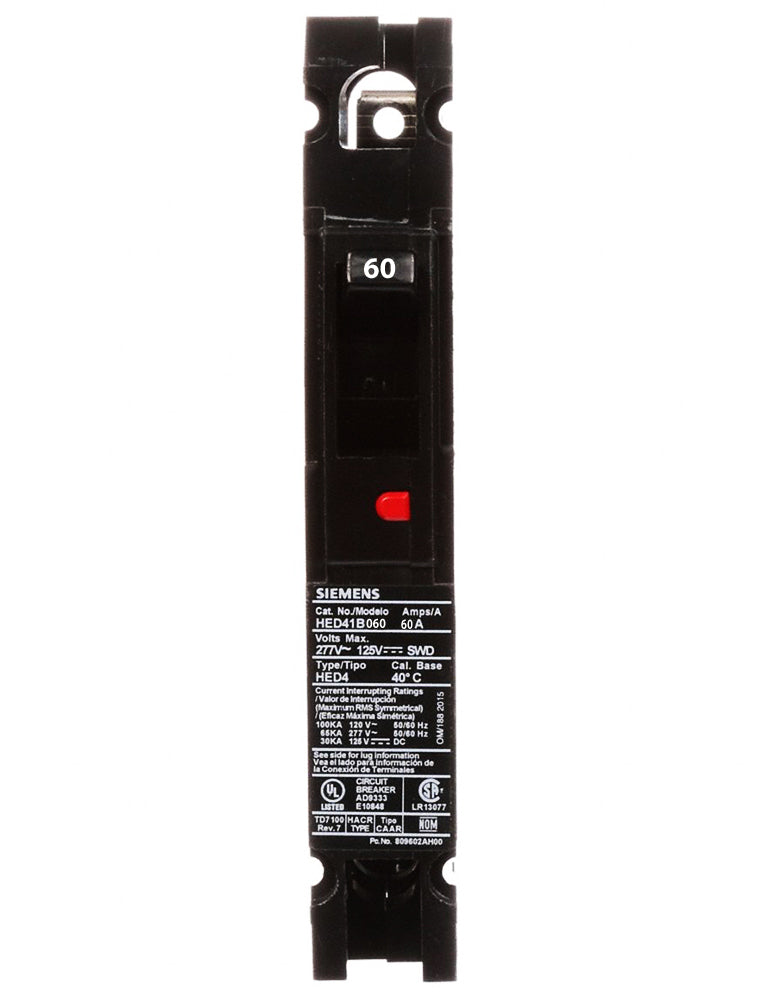

HED41B060 - Siemens 60A 277V 1 Pole Molded Case Circuit Breaker HED Frame Thermal Magnetic

HED41B060

HED41B060 is a Siemens molded case circuit breaker designed for reliable circuit protection in low voltage applications.This Siemens HED41B060 circuit breaker features a 60 ampere rating, 277 volts AC, single pole configuration, and bolt-on mounting. It includes thermal magnetic trip units with long-time and instantaneous trip functions, providing high interrupting capacity of 65kA at 277V. The breaker is part of the HED frame series and supports load side lug terminals for secure connections. It is UL listed and suitable for single-phase electrical systems.

Key Specifications
• Amperage: 60 A
• Voltage: 277 VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA at 277V
• Frame/Series: HED
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Functions
• Phase: Single
• Connection: Load Side Lug Terminals
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HED41B060
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HED
• Voltage : 277
• Amperage : 60
• Phase : 1
• Poles : 1
• AIC rating : 25kA@277V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 4 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 078364320989
• GTIN : 7.83643E+11
• Country of Origin : United States
• Dimensions : 1 in x 6.35 in
• Weight : 1.1
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : IEC 60947-2, UL 489
• Certification : IEC 60947-2, UL 489
