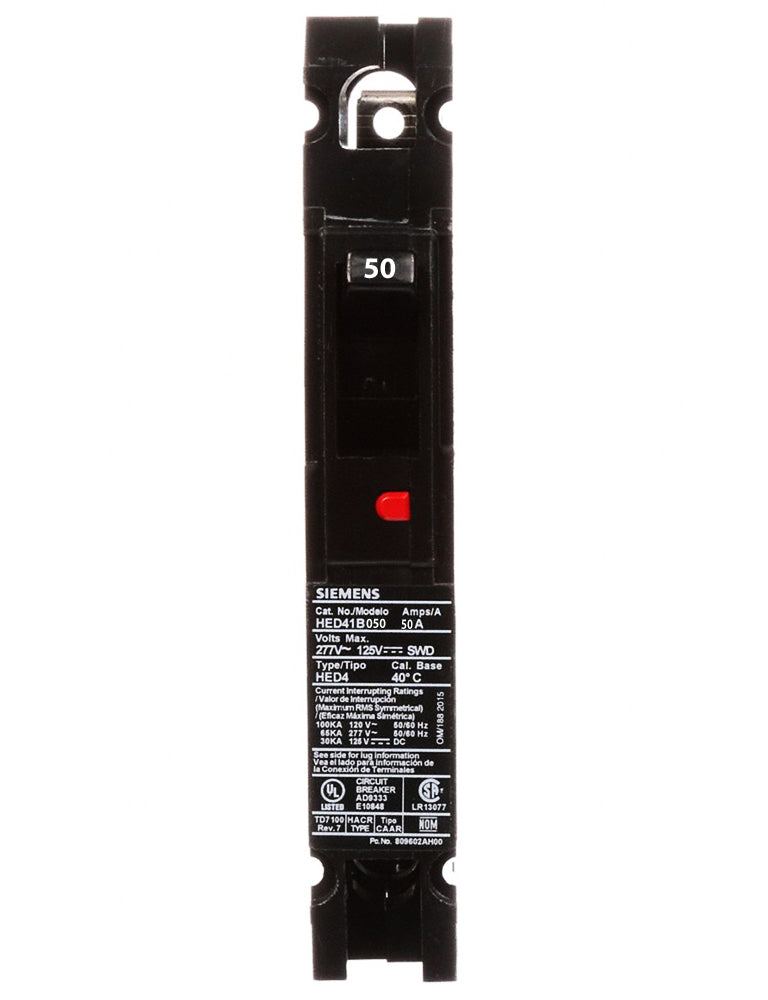

HED41B050 - Siemens 50 Amp 277 Volt 1 Pole Molded Case Circuit Breaker HED Frame

HED41B050

HED41B050 is a Siemens 50 Amp, 277 Volt, 1 Pole molded case circuit breaker designed for reliable circuit protection.This Siemens HED41B050 circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions. It has a bolt-on mounting type and is rated for 65kA interrupting capacity at 277V AC. The breaker is part of the HED frame series and includes load side lug terminals. It is single phase and certified for standard 40°C operation.

• Amperage: 50 Amps
• Voltage: 277 Volts AC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 65kAIC at 277V
• Series/Frame: HED
• Trip Unit: Thermal Magnetic with long time and instantaneous functions
• Phase: Single
• Connection: Load side lug terminals
• Operating Temperature: Standard 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HED41B050
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HED
• Voltage : 277
• Amperage : 50
• Phase : 1
• Poles : 1
• AIC rating : 25kA@277V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 4 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 783643209886
• GTIN : 00783643209886
• Country of Origin : Mexico
• Dimensions : 1 in x 6.35 in
• Weight : 1.25
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : IEC 60947-2, UL 489
• Certification : IEC 60947-2, UL 489
• Wire Size : AWG 10 to AWG 4, Cu/Al
