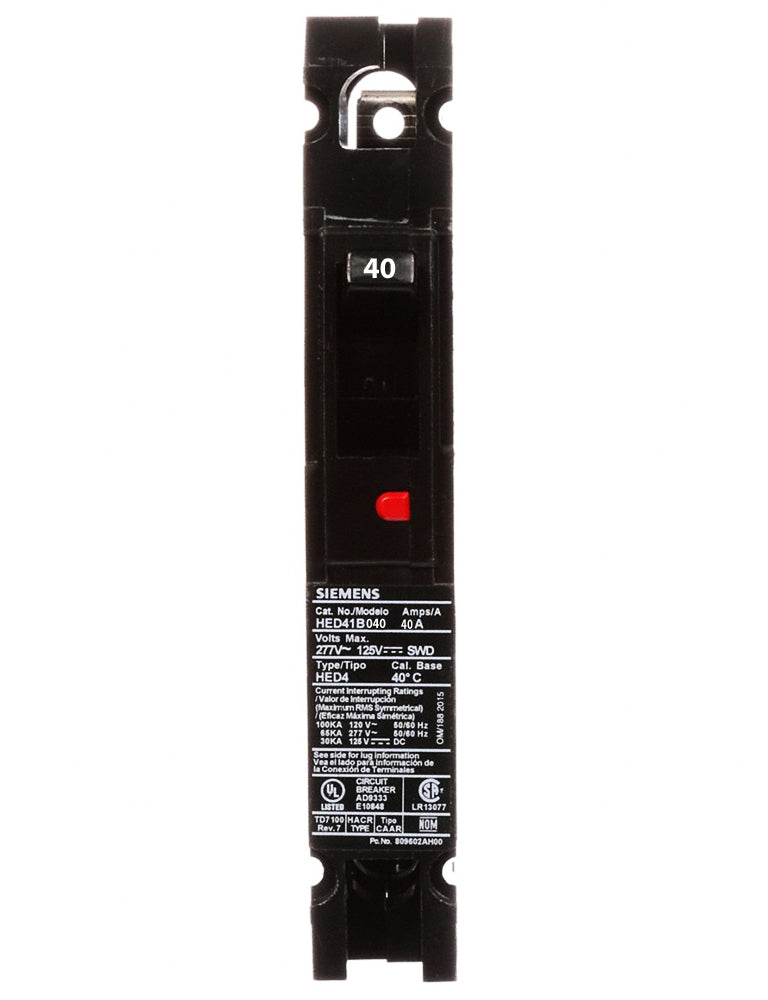

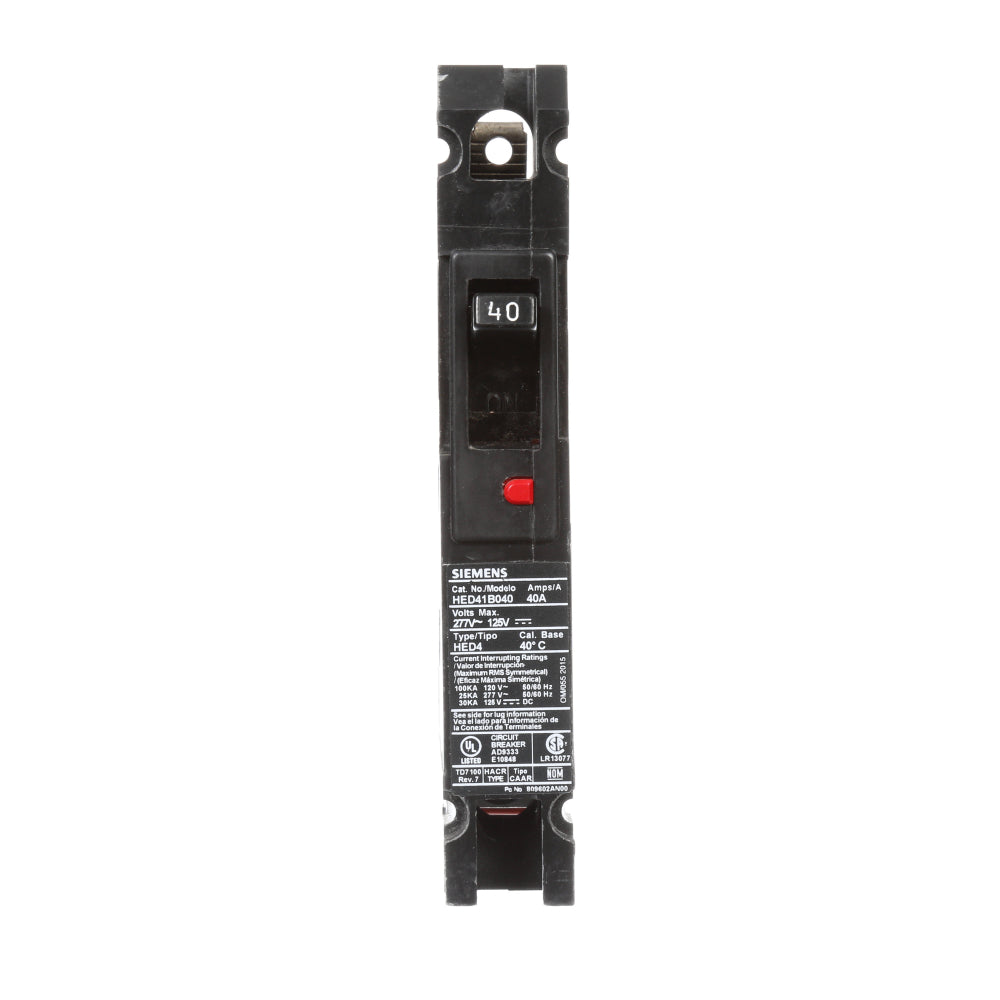

HED41B040 - Siemens 40A 277V 1-Pole Molded Case Circuit Breaker Bolt-On

HED41B040

HED41B040 is a Siemens 40 amp, 277 volt, 1-pole molded case circuit breaker with bolt-on connection designed for reliable circuit protection.This Siemens HED41B040 circuit breaker features a thermal-magnetic trip unit, 25 kA interrupting rating at 277 VAC, and a bolt-on mounting type. It is part of the HED4 series and provides dependable protection for single-phase electrical systems. This breaker does not include ground fault or arc fault functions.

• Amperage: 40A
• Voltage: 277 VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 25 kA at 277 VAC
• Series/Frame: HED4
• Trip Unit: Thermal-Magnetic
• Ground Fault: No
• Arc Fault: No
• Connection Type: Bolt-On
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HED41B040
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HED
• Voltage : 277
• Amperage : 40
• Phase : 1
• Poles : 1
• AIC rating : 25kA@277V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 4 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 078364320986
• GTIN : 00783643209862
• Country of Origin : Mexico
• Dimensions : 1 in x 6.35 in
• Weight : 3.774
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : IEC 60947-2, UL 489
• Certification : IEC 60947-2, UL 489
• Wire Size : AWG 10 to AWG 4, Cu/Al
