Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HEB3B100B

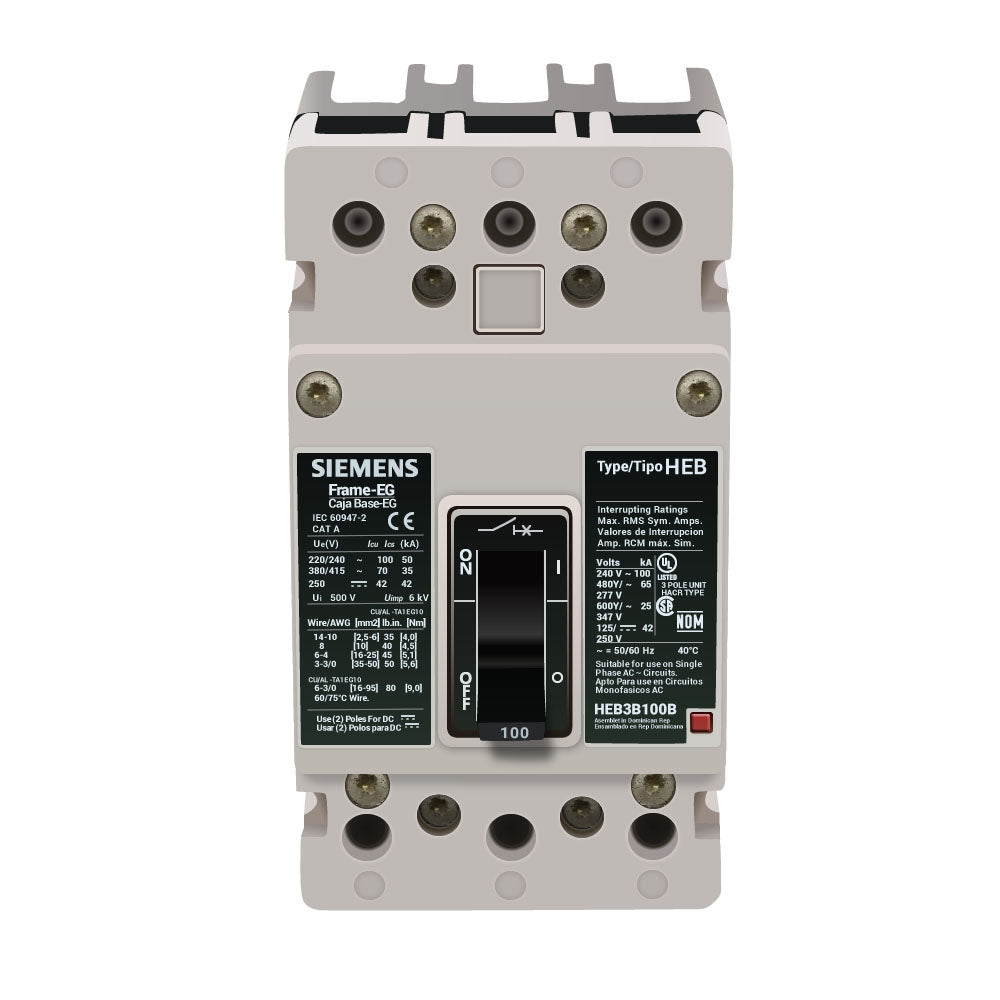

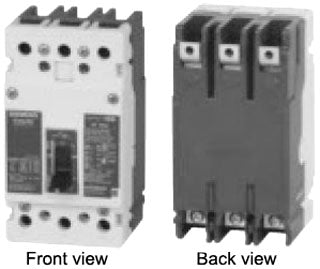

HEB3B100B is a Siemens 3-pole, 100 amp, 600V AC molded case circuit breaker designed for demanding industrial and commercial applications.
This premium quality, low voltage panelboard mount circuit breaker features a robust thermal-magnetic trip unit for reliable overcurrent and short circuit protection, with a high interrupting capacity of 65kA at 480V. It is UL listed, bolt-on mounted, and supports a wide range of wiring configurations with load side lugs only.
Key Specifications
- Amperage: 100A
- Voltage: 600V AC (65kAIC @ 480V, 25kAIC @ 600Y/347V)
- Poles: 3
- Mounting Type: Bolt-on
- Interrupt Rating: 65kA @ 480V, 25kA @ 600Y/347V
- Series/Frame: HEB
- Trip Unit: Thermal-magnetic (long-time and instantaneous)
- Certifications: UL Listed
- Terminals: Load side lugs only (TA1EG10)
- Wire Range: 8 - 1/0 AWG (CU/AL)
- Application: Industrial, commercial panelboards
- Environment: Rated for up to 40°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HEB3B100B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : HEB Series
- Type : HEB
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783643559073
- GTIN : 00783643559073
- Country of Origin : Dominican Republic
- Dimensions : 6.693 x 3.543 x 3.937 inch
- Weight : 2.513
- Certification : UL, CSA, IEC
