Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HEB3B050

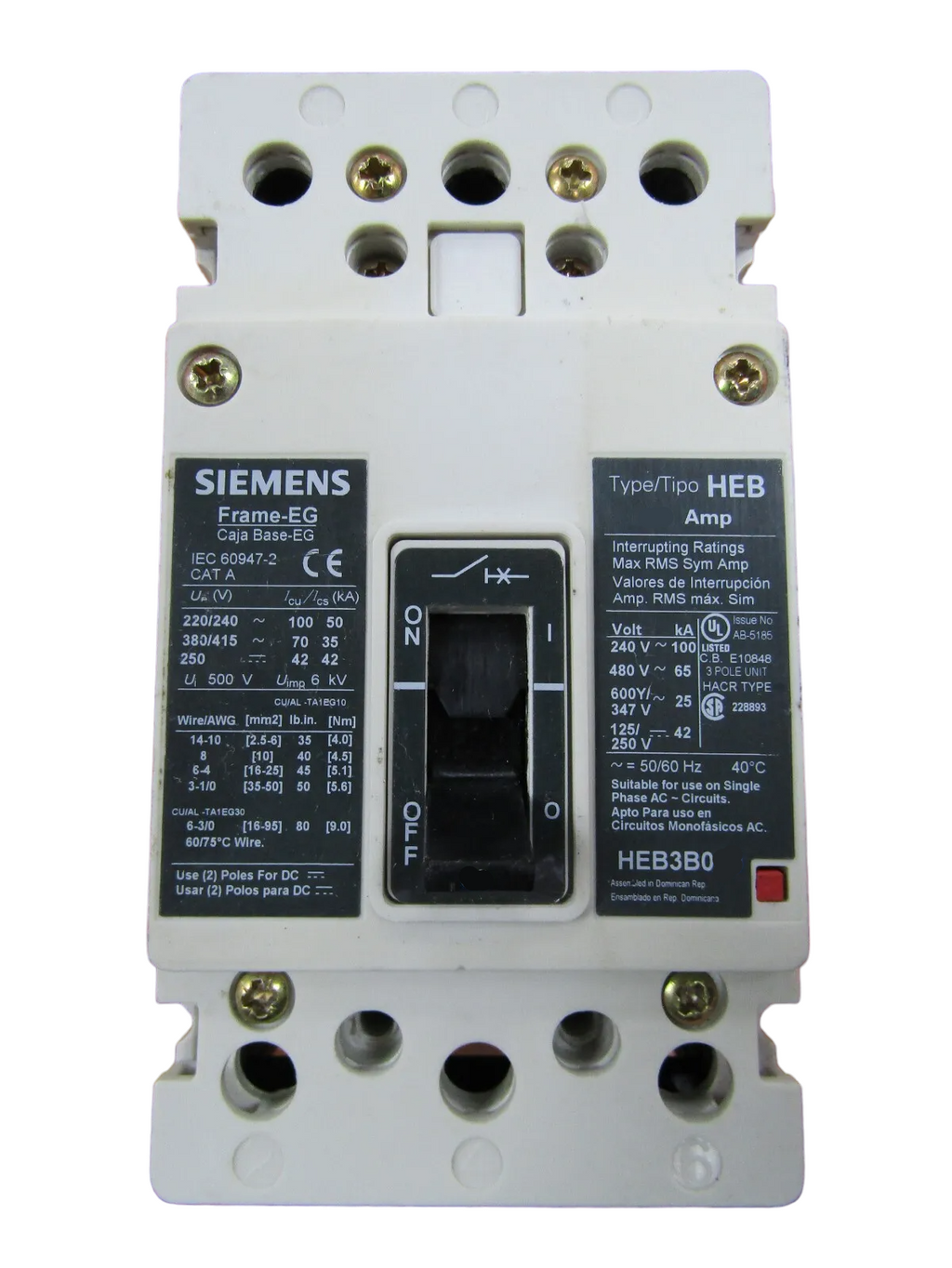

HEB3B050 is a Siemens 3 pole, 50 amp, 600 Volt molded case circuit breaker designed for reliable power distribution protection.This Siemens HEB3B050 circuit breaker features a bolt-on mounting type, thermal magnetic trip unit with long time and instantaneous trip functions, and a high interrupting rating of 25kAIC at 600Y/347V and 65kAIC at 480V. It is UL listed and suitable for use in 3-phase applications, supporting wire gauges from AWG 8 to 1/0 copper or aluminum. The breaker frame is HEB series, providing robust construction and consistent performance at a 40°C temperature rating.
- Key Specifications
- Amperage: 50 Amps
- Voltage Rating: 600 VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 25kAIC at 600Y/347V, 65kAIC at 480V
- Series/Frame: HEB
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
- Certifications: UL Listed
- Terminal Connection: Load Side Lug
- Wire Gauge: AWG 8 to 1/0 Cu/Al
- Temperature Rating: 40°C
- Part Number: HEB3B050
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : HEB Series
- Type : HEB
- Voltage : 600
- Amperage : 50
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- GTIN : 00783643559028
- Weight : 3
