Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HEB1B020B

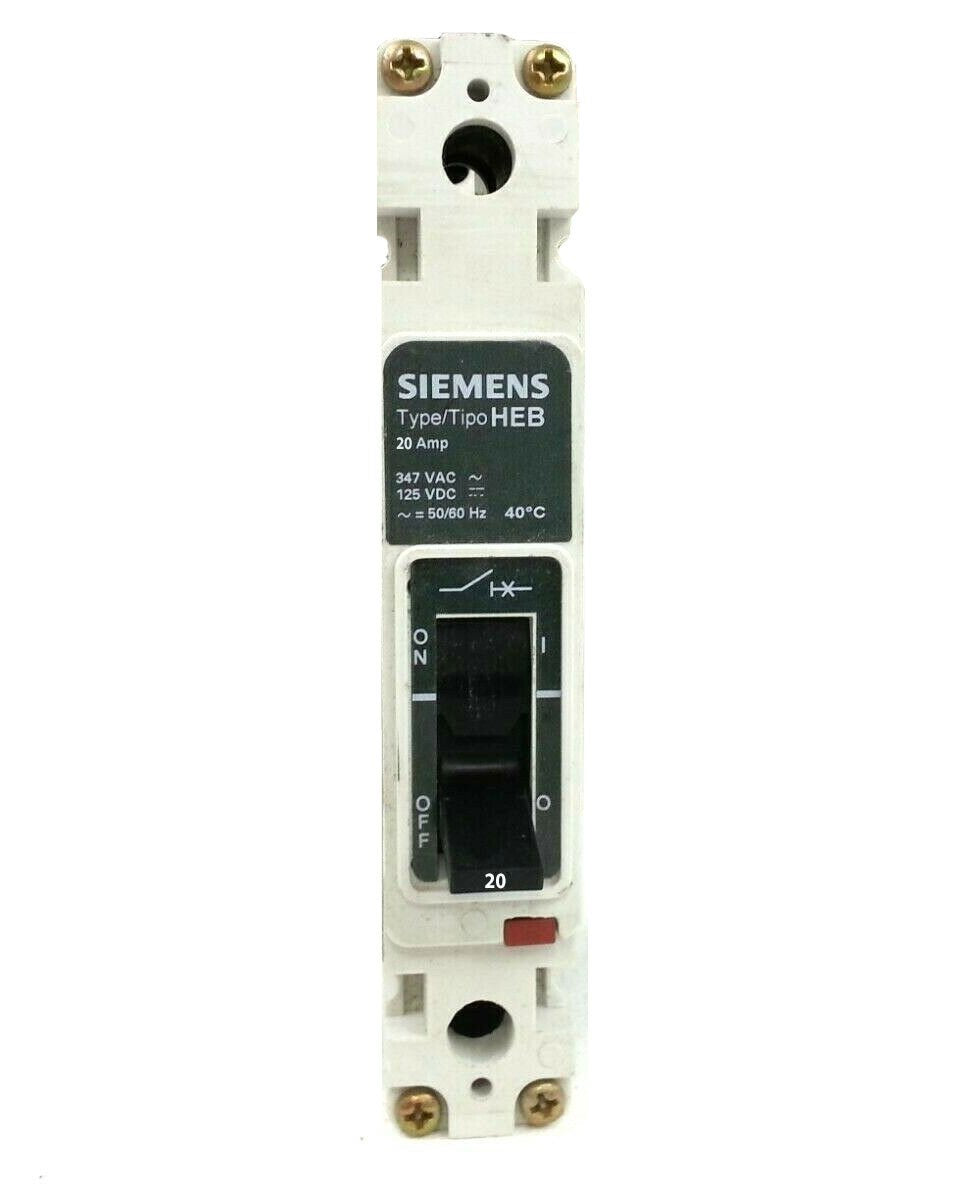

HEB1B020B is a Siemens 1 Pole thermal magnetic molded case circuit breaker rated for 20 Amps and 277/347VAC voltage with bolt-on mounting.This Siemens HEB1B020B circuit breaker features a 65kA interrupting rating at 277V and 25kA at 347V, with long-time and instantaneous trip functions. It is UL and CSA certified, designed for panelboard mounting with load side lug terminals, and supports wire gauges from AWG 8 to 1/0 Cu/Al. The breaker has a compact HEB frame measuring 5.5" x 1" x 3" and is rated for operation at 40°C.
- Manufacturer: Siemens
- Part Number: HEB1B020B
- Amperage: 20A
- Voltage: 277/347VAC
- Poles: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 65kAIC @ 277V, 25kAIC @ 347V
- Frame Type: HEB
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
- Certifications: UL, CSA
- Terminal Connection: Load Side Lug
- Operating Temperature: 40°C
Specifications
- Part Number: HEB1B020B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : HEB Series
- Type : HEB
- Voltage : 277
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 65kA@277V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643558663
- GTIN : 00783643558663
- Country of Origin : Dominican Republic
- Dimensions : 7.874 x 5.118 x 1.181 inch
- Weight : 0.661
- Wire Size : AWS 8 to AWS 1/0, Cu/Al
