HDL36025 - Square D 25A 600V 3-Pole Molded Case Circuit Breaker H Frame Thermal Magnetic

HDL36025

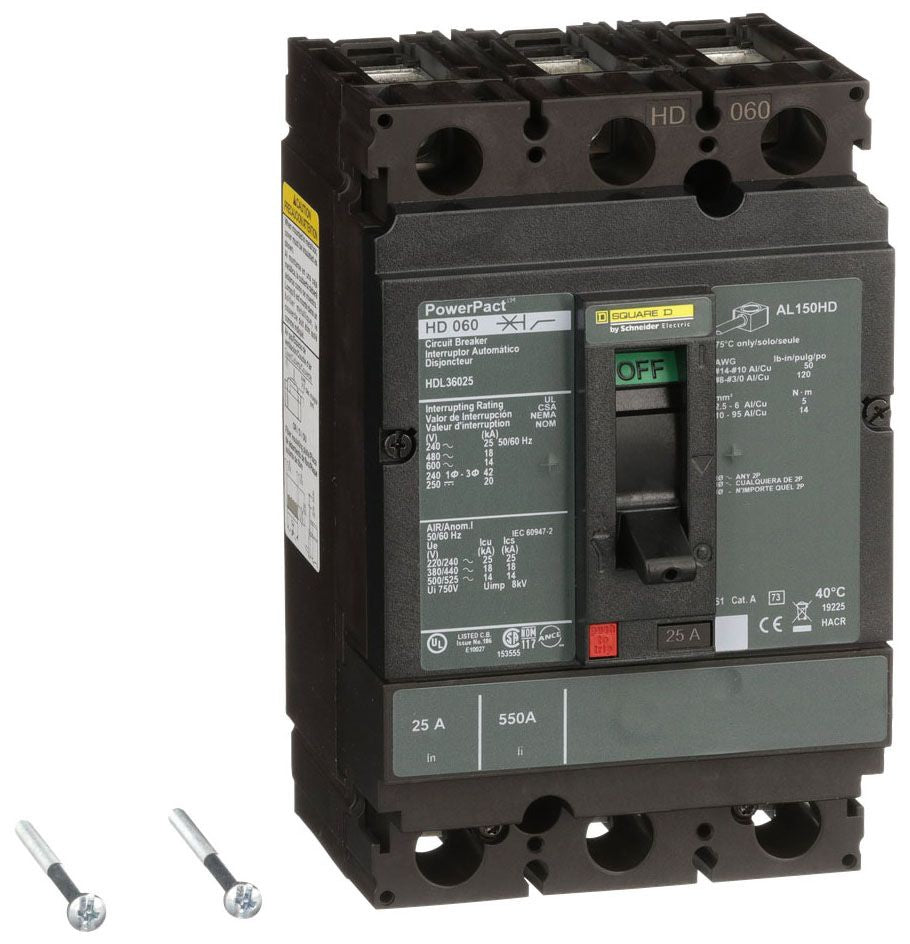

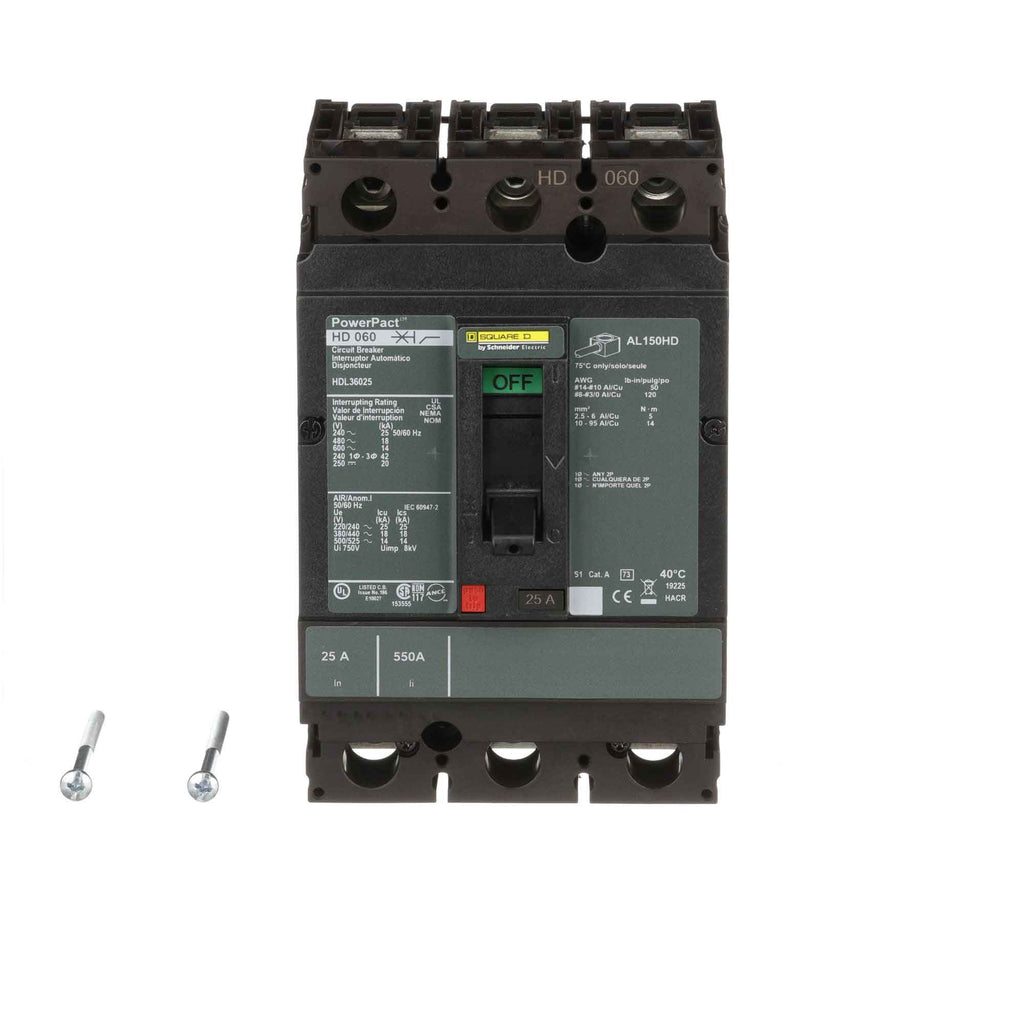

HDL36025 is a Square D 25 Amp, 3-pole molded case circuit breaker designed for 600 Volt applications with thermal magnetic trip protection.This PowerPact H frame breaker features a unit mount design with a 14kA interrupt rating at 600VAC and 18kA at 480VAC. It includes long-time and instantaneous trip units, line and load side lug terminals, and complies with UL 489, CSA, IEC, and CE certifications for reliable circuit protection.

Key Specifications
• Amperage: 25 Amp
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Frame Type: H Frame (PowerPact)
• Mounting Type: Unit Mount
• Interrupt Rating: 14kA @ 600VAC, 18kA @ 480VAC, 25kA @ 240VAC
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• UL Listed: UL 489
• Certifications: UL, CSA, IEC, CE
• Connection: Line and Load Side Lugs
• Dimensions (HxWxD): 6.42 x 4.09 x 3.39 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36025
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901577898
• GTIN : 00785901577898
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.12
• Panel Type : Transformer
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
