HDL26125 - Square D 125A 600V 2-Pole PowerPact H-Frame Molded Case Circuit Breaker

Save $1,370.18
SKU: HDL26125-New
Condition: New
Price:
$701.82 $2,072.00
Stock:
2 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

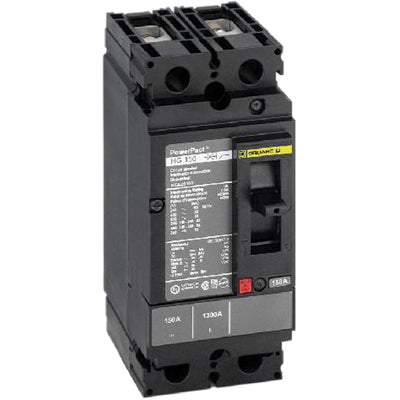

HDL26125 - Square D/ Schneider Electric Feed-Thru 125 Amp 2 Pole Circuit Breaker - Essential Electric Supply

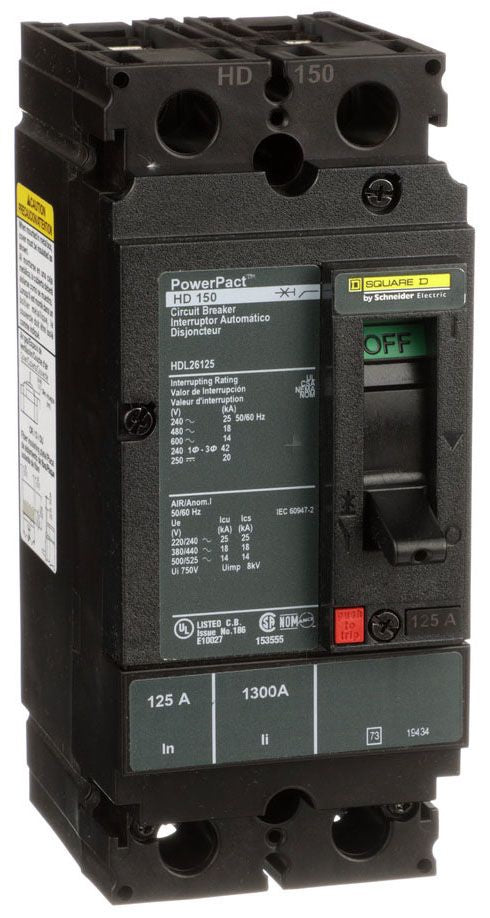

HDL26125 - Square D Bolt-On 600V 125A 2 pole circuit breaker 18kA@480V - Essential Electric Supply

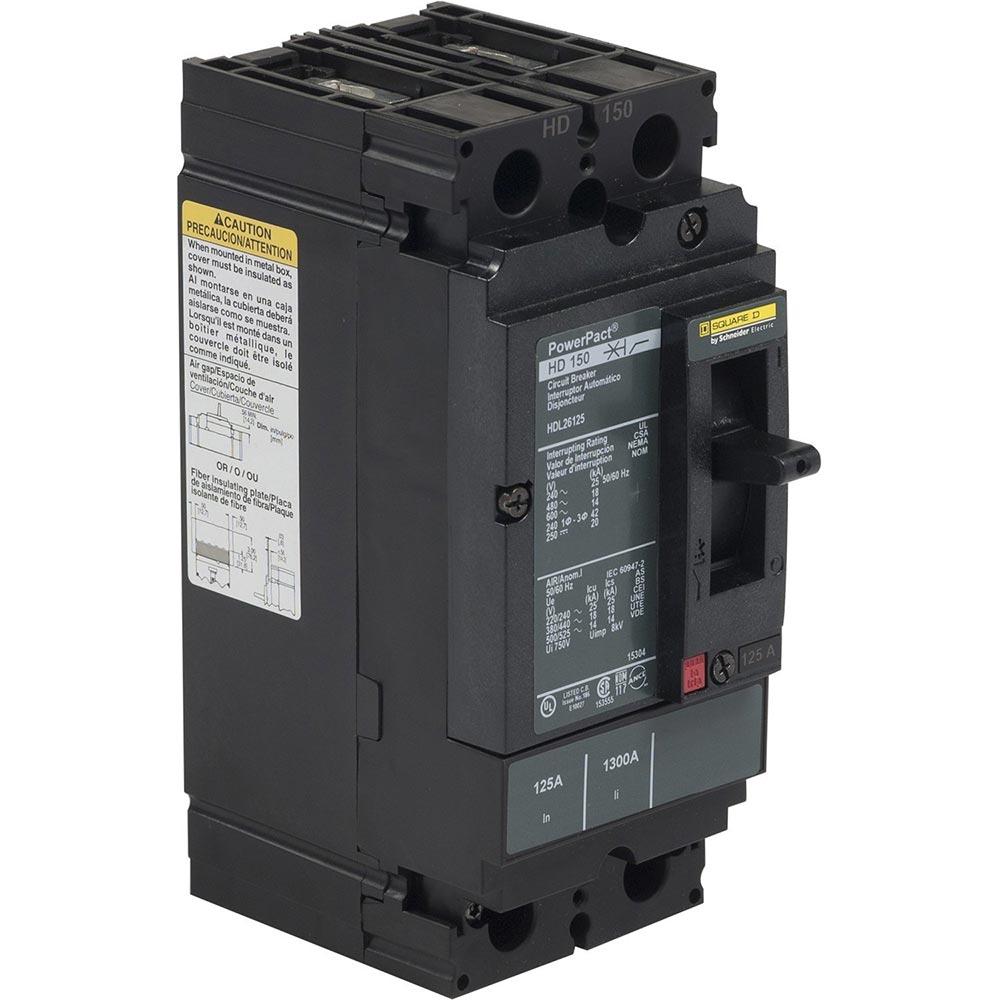

HDL26125 - Square D 125A 600V 2-Pole PowerPact H-Frame Molded Case Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HDL26125 - Square D/ Schneider Electric Feed-Thru 125 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HDL26125 - Square D Bolt-On 600V 125A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
HDL26125 - Square D 125A 600V 2-Pole PowerPact H-Frame Molded Case Circuit Breaker - Essential Electric Supply

Description

HDL26125


HDL26125 is a Square D PowerPact H-Frame molded case circuit breaker rated for 125 amps and 600 volts with 2 poles.This thermal magnetic circuit breaker features a 125A amperage rating, 600V voltage rating, and a 2-pole configuration. It is designed for unit mounting and offers a D interrupt rating suitable for industrial and commercial applications. The breaker complies with UL 489 standards and includes line and load side lug terminals. It provides reliable protection against overloads and short circuits with a breaking capacity of up to 18kA at 480V and 25kA at 240V. The breaker is part of the PowerPact H series, known for versatility and ease of installation.
    Key Specifications
    • Amperage: 125 A
    • Voltage: 600 V AC
    • Poles: 2
    • Frame/Series: PowerPact H
    • Interrupt Rating: D (18kA at 480V, 25kA at 240V)
    • Trip Unit: Thermal Magnetic
    • Mounting Type: Unit Mount
    • Certifications: UL 489 Listed
    • Terminal Type: Line and Load Side Lugs
    • Frequency: 50/60 Hz
    • Enclosure Type: NEMA AB1
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: HDL26125
    • Manufacturer : Schneider Electric
    • Brand : Square D
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : Powerpact
    • Type : HDL
    • Voltage : 600
    • Amperage : 125
    • Phase : 1
    • Poles : 2
    • AIC rating : 18kA@480V
    • Connection : Bolt-On
    • Functions : LI - Long-Time and Instantaneous
    • Terminal Connection : Line/Load Lug
    • Frame Size : 150A/HD
    • Temp Rating : 28-158 °F (-2-70 °C)
    • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
    • Breaker Type : Standard
    • Protection : Thermal Magnetic
    • Phase Connection : Not Applicable

    Product Data

    • UPC : 785901461944
    • GTIN : 00785901461944
    • Country of Origin : Mexico
    • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
    • Weight : 3.06
    • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
    • Certification : UL, CSA, NOM
    • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
