HDL26100 - Square D 100 Amp 2 Pole 600V H Frame Molded Case Circuit Breaker, Thermal Magnetic, Feed-Thru, 18kA Interrupt

HDL26100

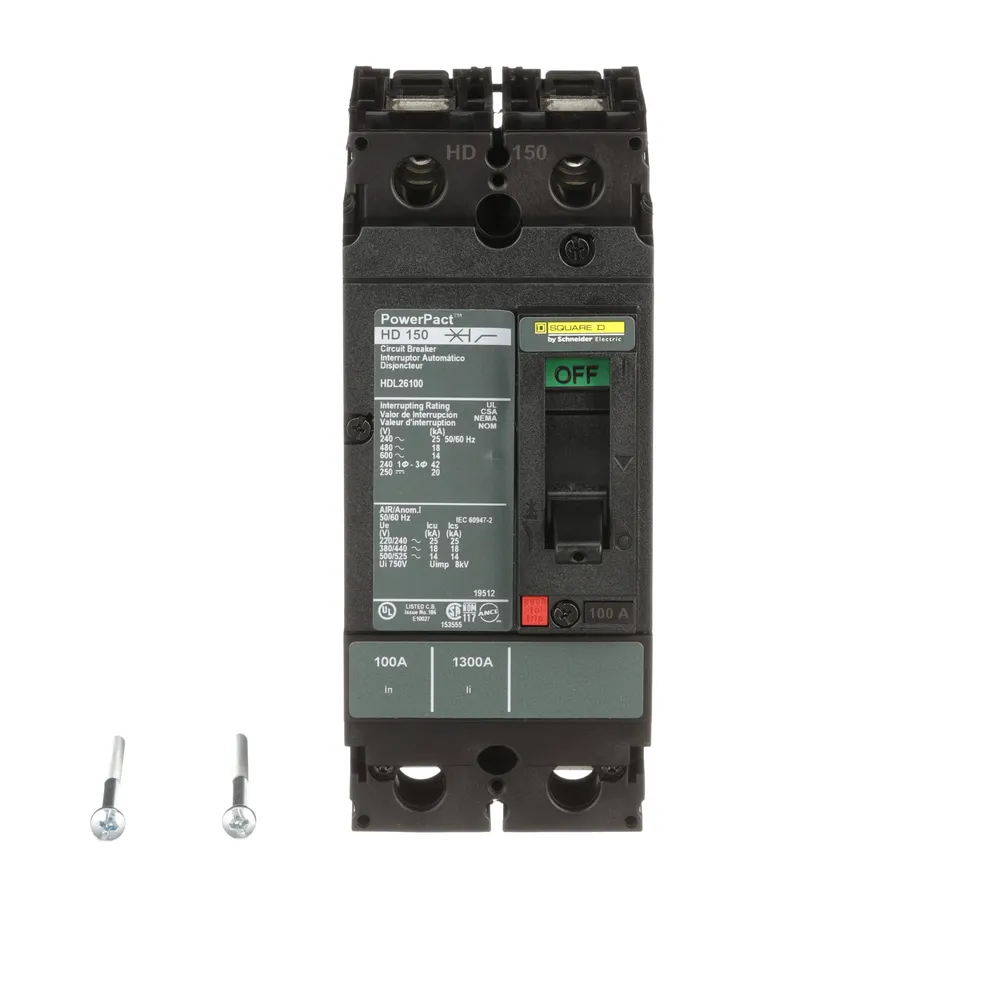

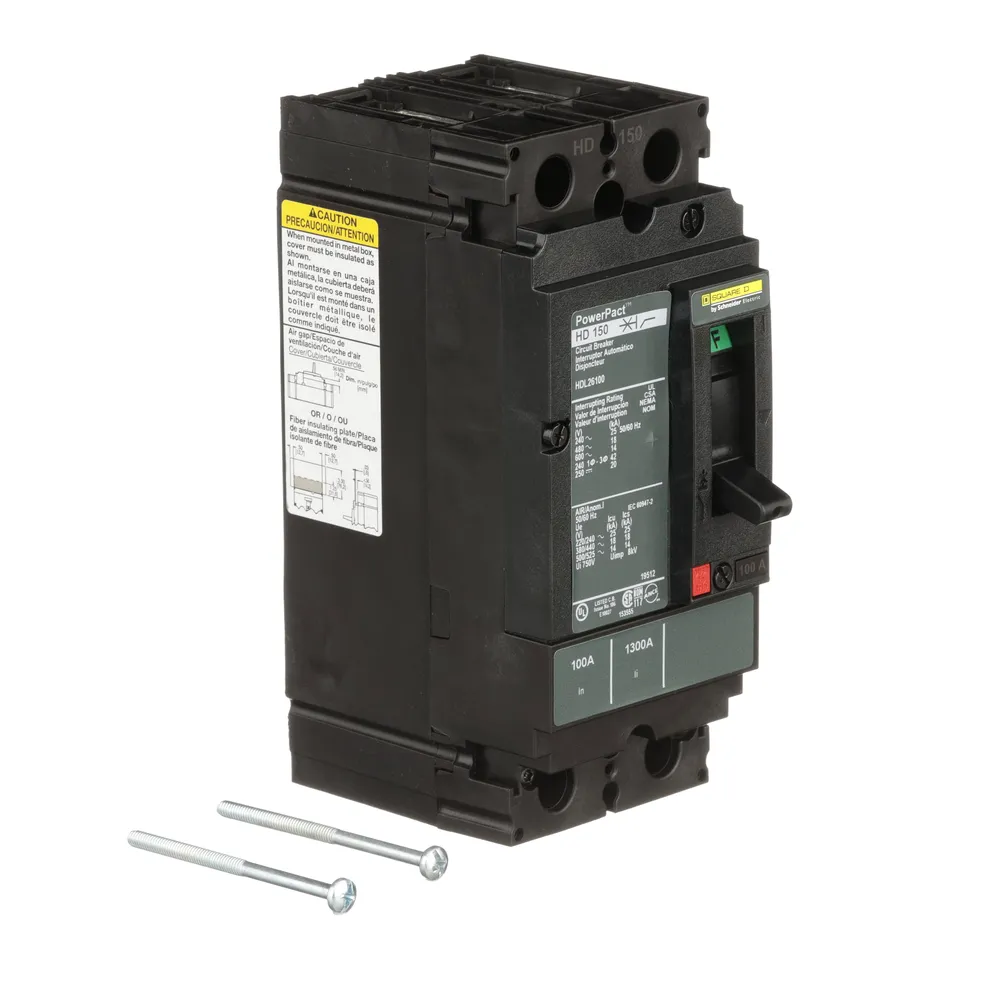

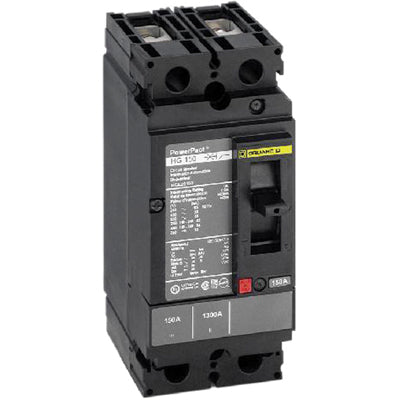

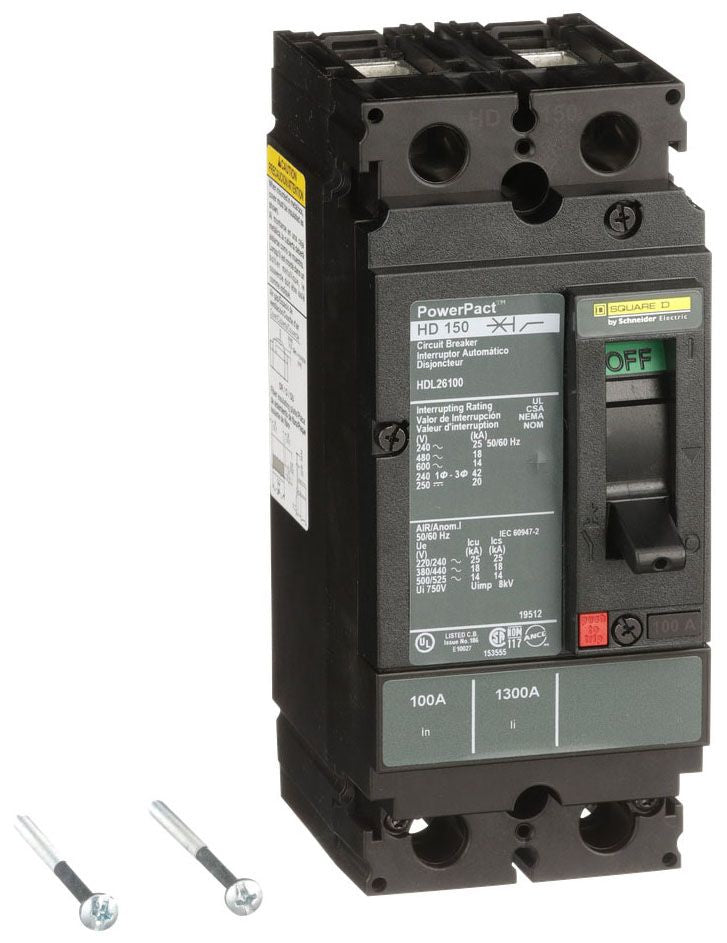

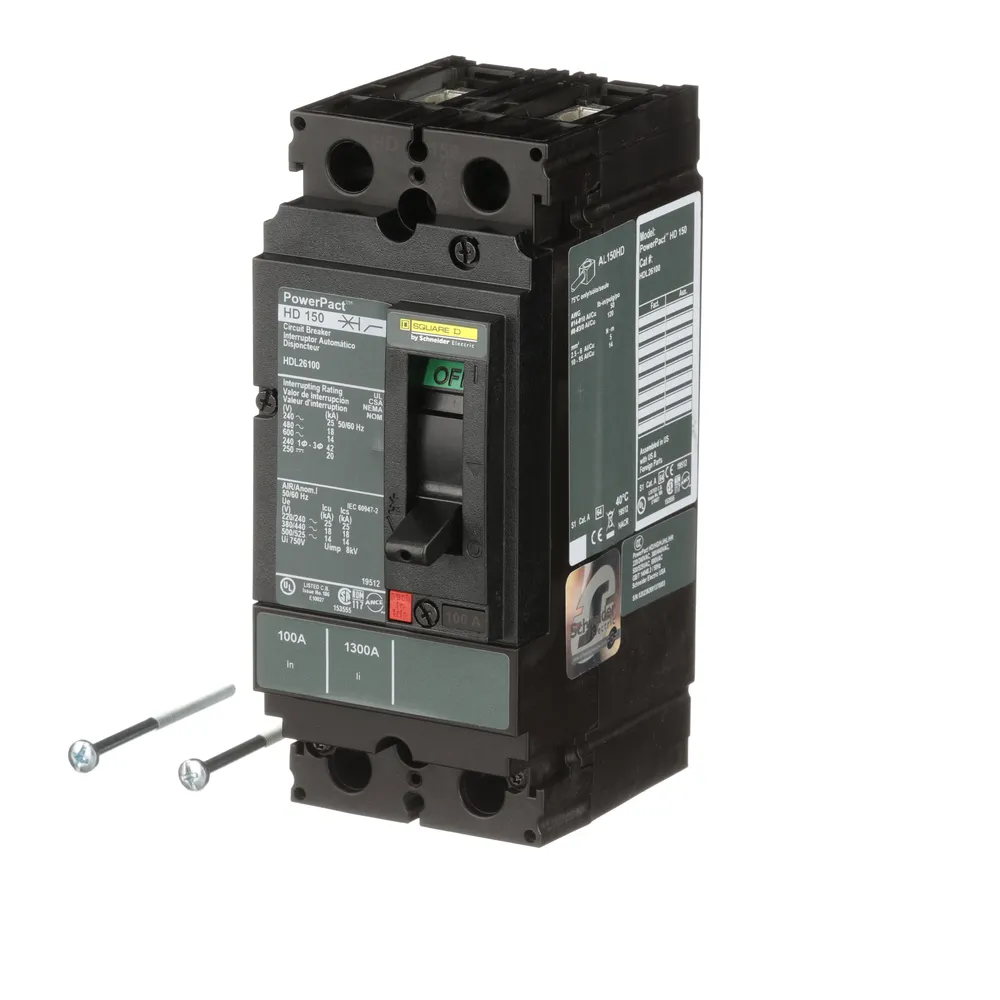

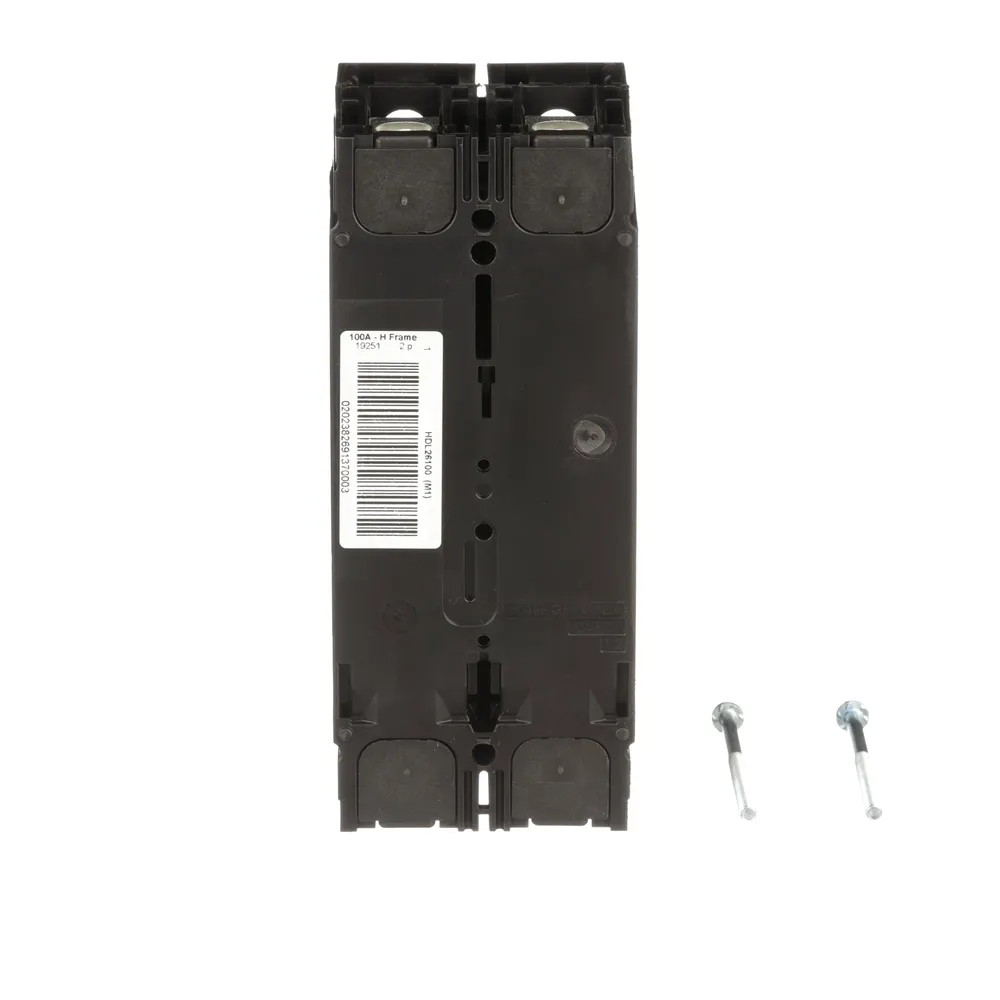

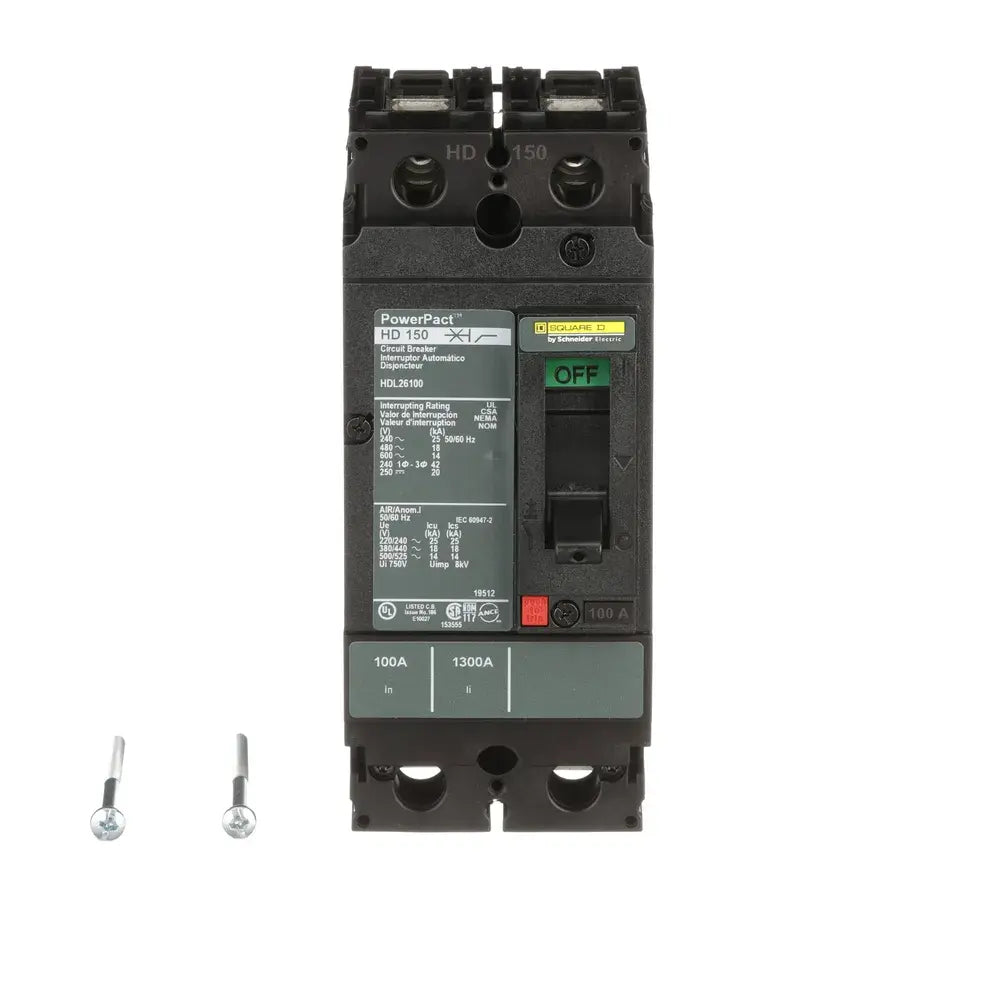

HDL26100 is a Square D 2 pole, 100 amp, 600V molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal magnetic, current-limiting circuit breaker features a feed-thru connection type, H frame design, and is UL 489 listed for safety and compliance. It offers long-time and instantaneous trip functions, making it suitable for a wide range of electrical distribution needs.

Key Specifications
• Part Number: HDL26100
• Manufacturer: Square D
• Amperage: 100A
• Voltage: 600V AC, 250V DC
• Poles: 2
• Mounting Type: Unit mount
• Interrupt Rating: 18kA @ 480VAC, 14kA @ 600VAC, 25kA @ 240VAC
• Series/Frame: H Frame
• Trip Unit: Thermal magnetic, current limiting
• Connection: Feed-thru
• Certifications: UL 489 listed
• Dimensions: 4.09" W x 3.39" D x 6.42" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL26100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901577942
• GTIN : 00785901577942
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
