HDL26070 - Square D 70 Amp 2 Pole 600VAC Thermal Magnetic Circuit Breaker H Frame

Save $547.34
SKU: HDL26070-New
Condition: New
Price:
$514.66 $1,062.00
Stock:
9 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

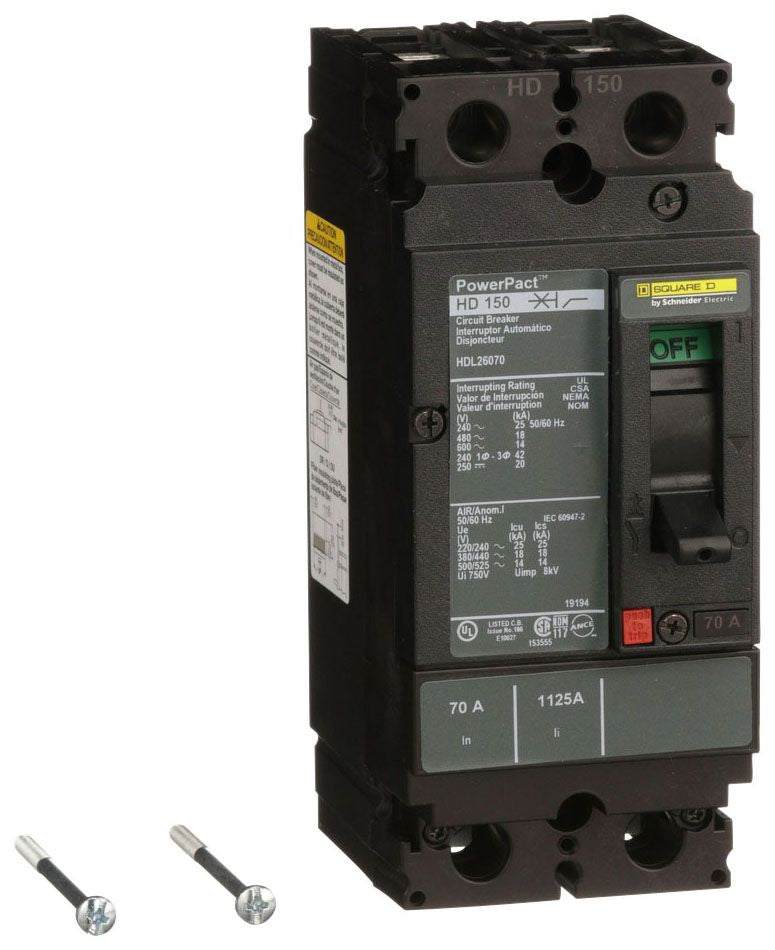

HDL26070 - Square D/ Schneider Electric Feed-Thru 70 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HDL26070 - Square D Bolt-On 600V 70A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HDL26070 - Square D/ Schneider Electric Feed-Thru 70 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HDL26070 - Square D Bolt-On 600V 70A 2 pole circuit breaker 18kA@480V - Essential Electric Supply

Description

HDL26070


HDL26070 is a Square D 70 Amp, 2 Pole, 600VAC thermal magnetic circuit breaker designed for reliable power distribution protection.This molded case circuit breaker features a PowerPacT H frame with a thermal magnetic trip unit, suitable for unit mounting. It offers a 70 Amp rating, 600 Volt maximum voltage, and a current interrupt rating up to 18kA at 480VAC. The breaker is UL listed, CSA certified, and IEC rated, ensuring compliance with industry safety standards. It includes line and load side lug terminals and is designed for feed-thru and reverse fed applications.
    Key Specifications
    • Manufacturer: Square D
    • Part Number: HDL26070
    • Amperage: 70 Amp
    • Voltage Rating: 600VAC / 250VDC
    • Poles: 2
    • Interrupt Rating: 18kA @ 480VAC, 14kA @ 600VAC
    • Frame/Series: PowerPacT H Frame
    • Trip Unit: Thermal Magnetic
    • Mounting Type: Unit Mount
    • Certifications: UL Listed, CSA Certified, IEC Rated
    • Dimensions: 6.4 in height x 4.09 in width x 3.4 in depth
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HDL26070
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HDL
  • Voltage : 600
  • Amperage : 70
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/HD
  • Temp Rating : 28-158 °F (-2-70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Not Applicable

Product Data

  • UPC : 785901461913
  • GTIN : 00785901461913
  • Country of Origin : Mexico
  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 3.02
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
