HDL26060 - Square D PowerPacT H Frame 60 Amp 2 Pole 600V Molded Case Circuit Breaker, Thermal Magnetic Trip, Feed-Thru, UL/CE/CSA/IEC, Unit Mount

Save $422.96
SKU: HDL26060-New
Condition: New
Price:
$447.04 $870.00
Stock:
7 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

HDL26060 - Schneider Electric/ Square D Feed-Thru 60 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HDL26060 - Square D Bolt-On 600V 60A 2 pole circuit breaker 18kA@480V - Essential Electric Supply

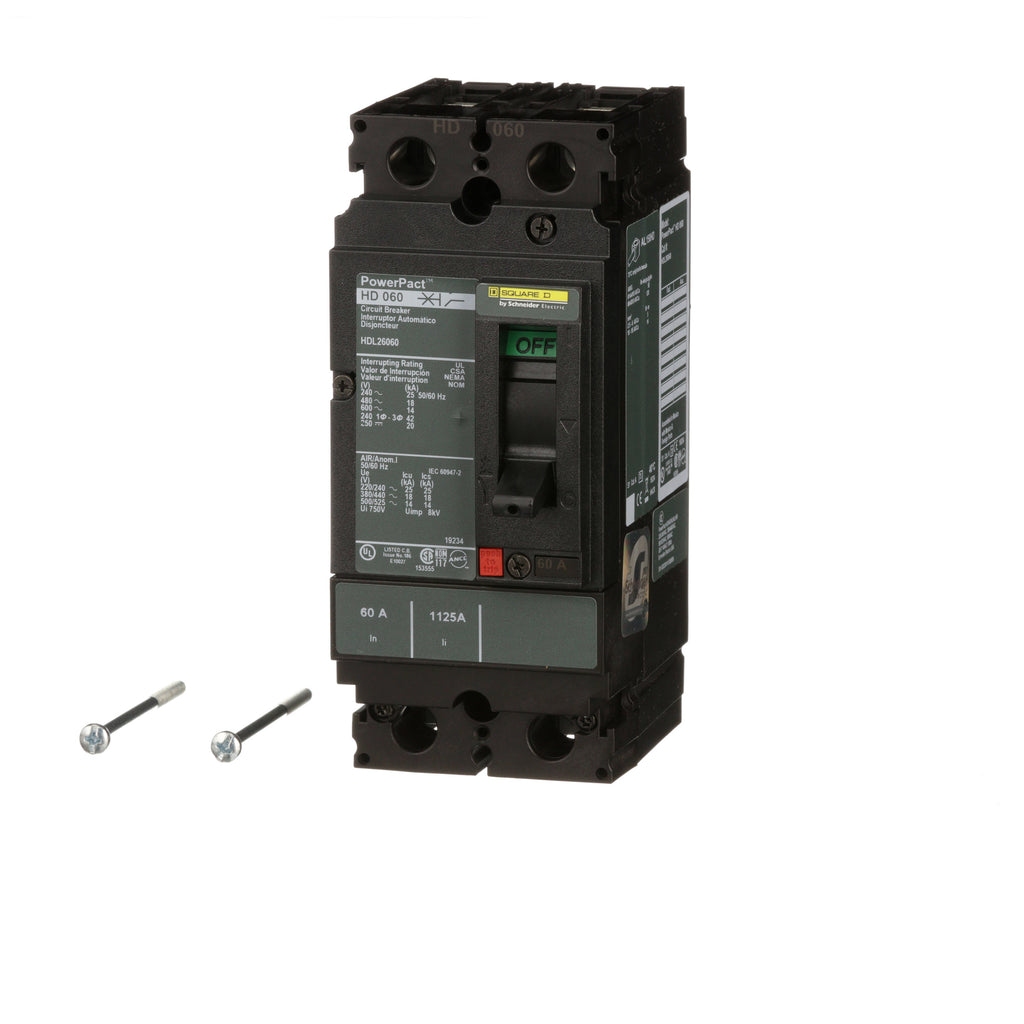

HDL26060 - Square D PowerPacT H Frame 60 Amp 2 Pole 600V Molded Case Circuit Breaker, Thermal Magnetic Trip, Feed-Thru, UL/CE/CSA/IEC, Unit Mount - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HDL26060 - Schneider Electric/ Square D Feed-Thru 60 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HDL26060 - Square D Bolt-On 600V 60A 2 pole circuit breaker 18kA@480V - Essential Electric Supply

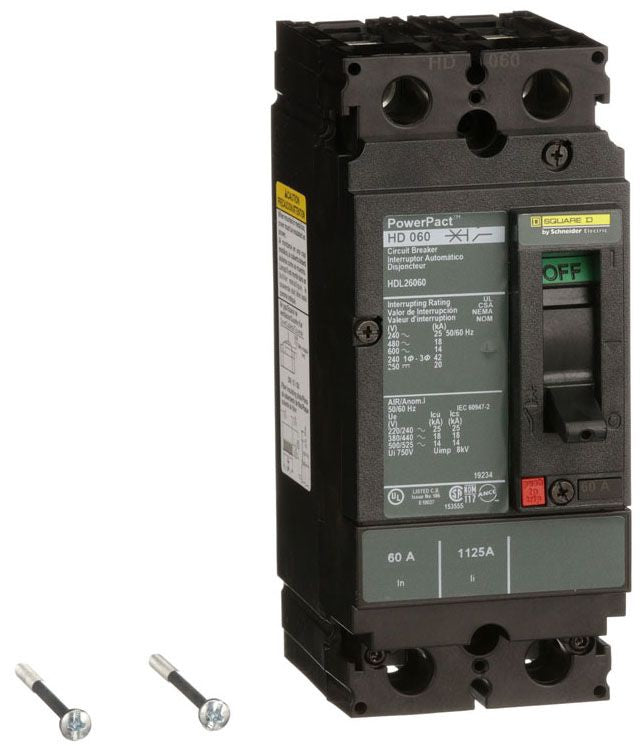

HDL26060 - Square D PowerPacT H Frame 60 Amp 2 Pole 600V Molded Case Circuit Breaker, Thermal Magnetic Trip, Feed-Thru, UL/CE/CSA/IEC, Unit Mount - Essential Electric Supply

Description

HDL26060


HDL26060 is a Square D PowerPacT H Frame molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This 2-pole, 60 Amp breaker features a thermal magnetic trip unit with long-time and instantaneous protection, suitable for up to 600V AC or 250V DC systems. It offers feed-thru connection, is unit mounted, and is certified for safety and performance by UL, CE, CSA, and IEC. The HDL26060 is engineered for easy installation and is suitable for reverse fed applications, providing robust overload and short circuit protection.

Key Specifications

  • Amperage: 60 Amp
  • Voltage: 600V AC, 250V DC
  • Poles: 2
  • Mounting Type: Unit
  • Interrupt Rating: 25kA @ 240V AC, 18kA @ 480V AC, 14kA @ 600V AC, 20kA @ 250V DC
  • Series/Frame: PowerPacT H
  • Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
  • Certifications: UL, CE, CSA, IEC
  • Connection: Feed-Thru, line/load lug terminals
  • Phase: 1
  • Dimensions: 4.36" L x 2.74" W x 6.4" H
  • Wire Gauge: AWG 14 to 3/0 (aluminum/copper)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: HDL26060
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HDL
  • Voltage : 600
  • Amperage : 60
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/HD
  • Temp Rating : 28-158 °F (-2-70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Not Applicable

Product Data

  • UPC : 785901577874
  • GTIN : 00785901577874
  • Country of Origin : Mexico
  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 3
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
