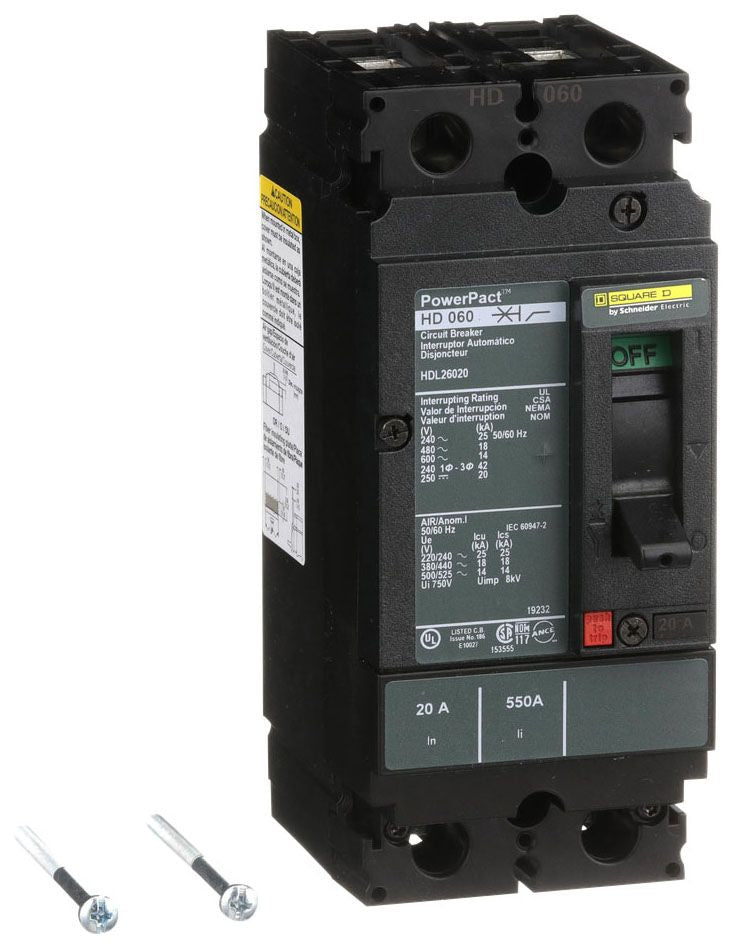

HDL26020
HDL26020 is a Square D 2 pole thermal magnetic molded case circuit breaker rated for 20 amps and 600VAC/250VDC operation.
This HD frame breaker features long time and instantaneous trip functions with a unit mounting type and feed-thru connection. It has an interrupting rating of 25kA at 240VAC and supports wire gauges from AWG 14 to AWG 3/0 for aluminum or copper conductors. Certified to UL, CSA, CE, IEC, NEMA, NOM, and RoHS standards, it is designed for reliable protection in industrial and commercial applications.
- Key Specifications
- Amperage: 20 Amps
- Voltage Rating: 600VAC, 250VDC
- Poles: 2
- Mounting Type: Unit Mount
- Interrupt Rating: 25kA at 240VAC
- Frame Type: HD (HDL Series)
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
- Connection Type: Feed-Thru with Line and Load Side Lugs
- Wire Gauge Range: AWG 14 to AWG 3/0 Aluminum/Copper
- Certifications: UL, CSA, CE, IEC, NEMA, NOM, RoHS
- Color: Black
- Actuator Type: Toggle
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HDL26020
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HDL
- Voltage : 600
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Line/Load Lug
- Frame Size : 150A/HD
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : Not Applicable
Product Data
- UPC : 785901577966
- GTIN : 00785901577966
- Country of Origin : Mexico
- Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 3.031
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
