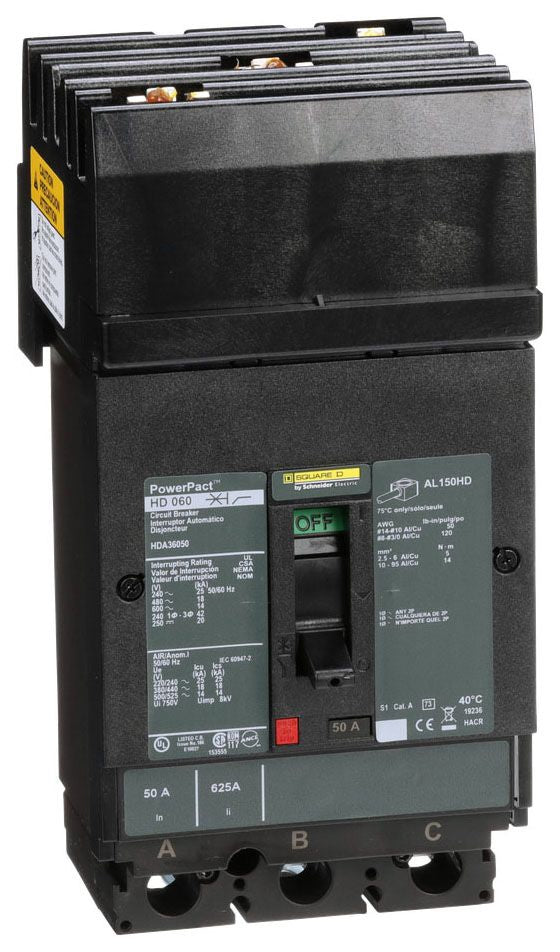

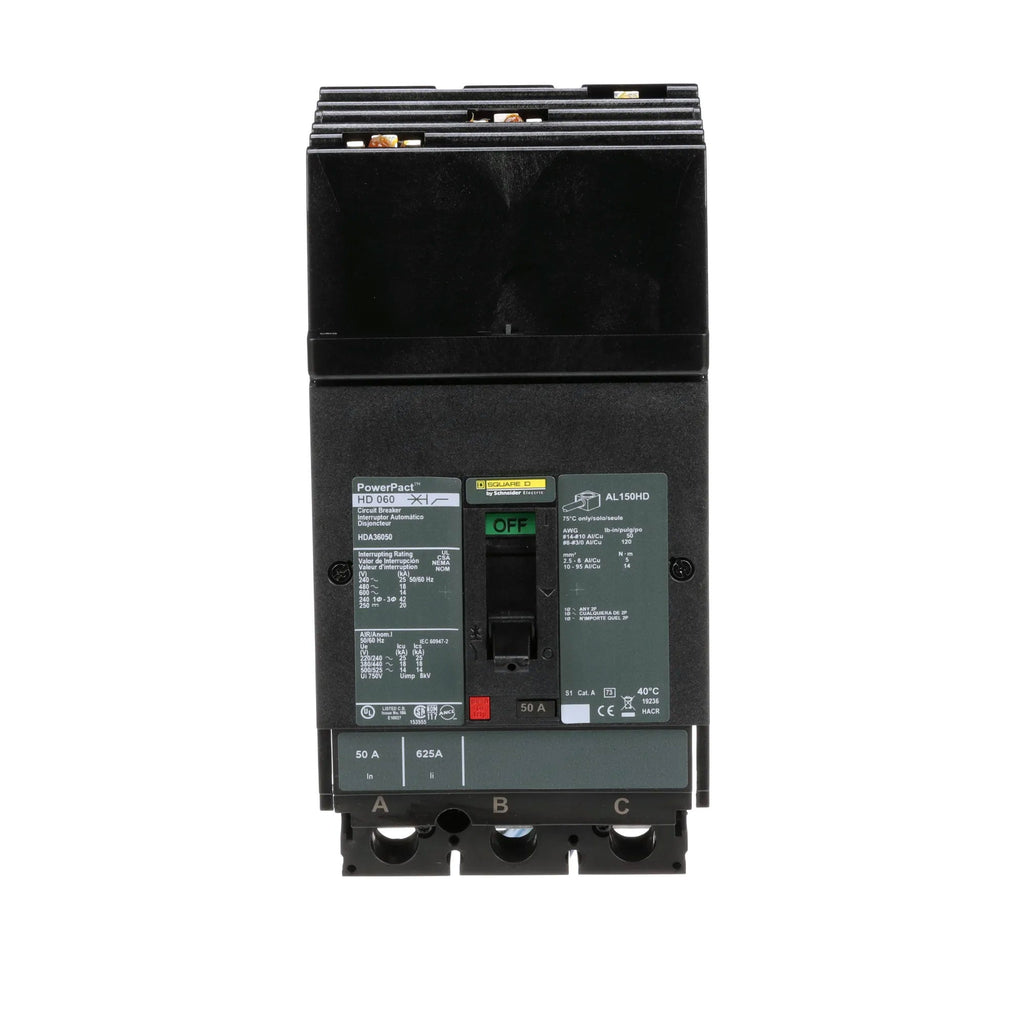

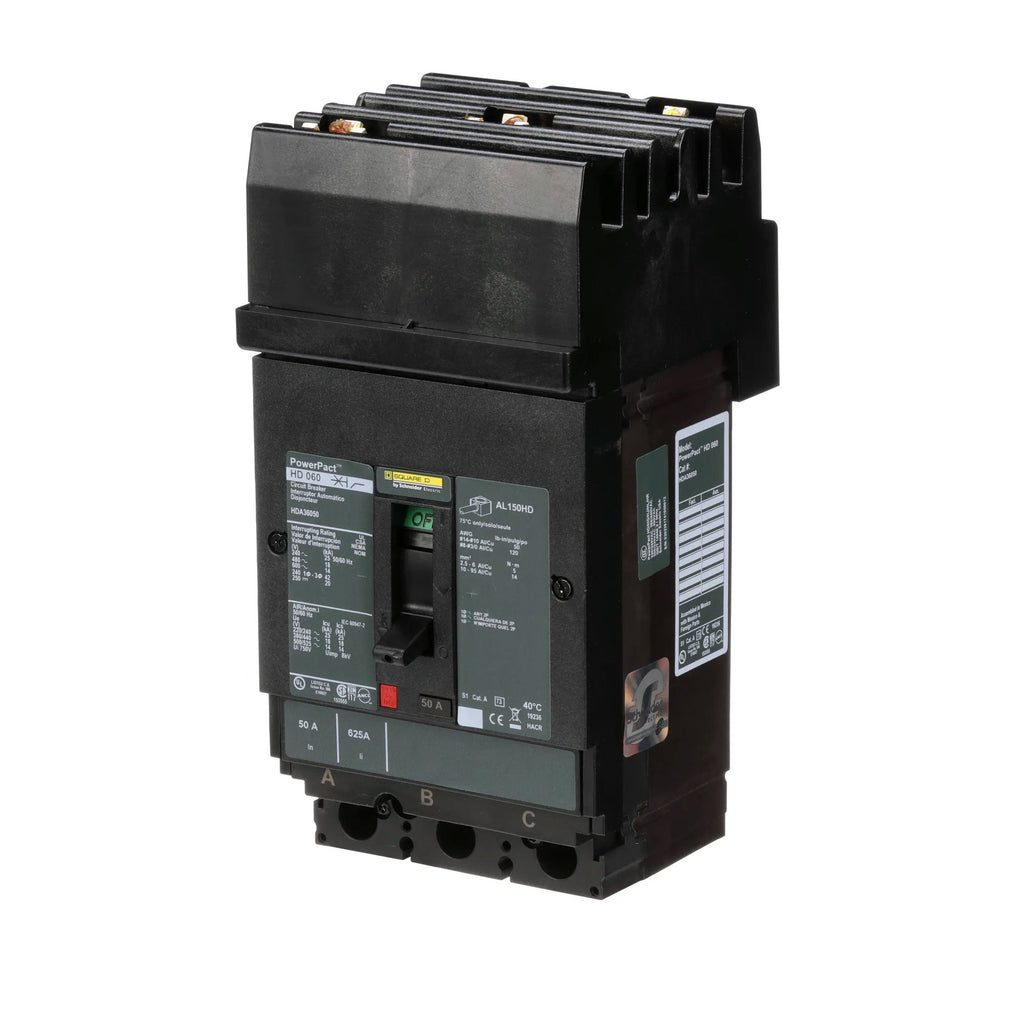

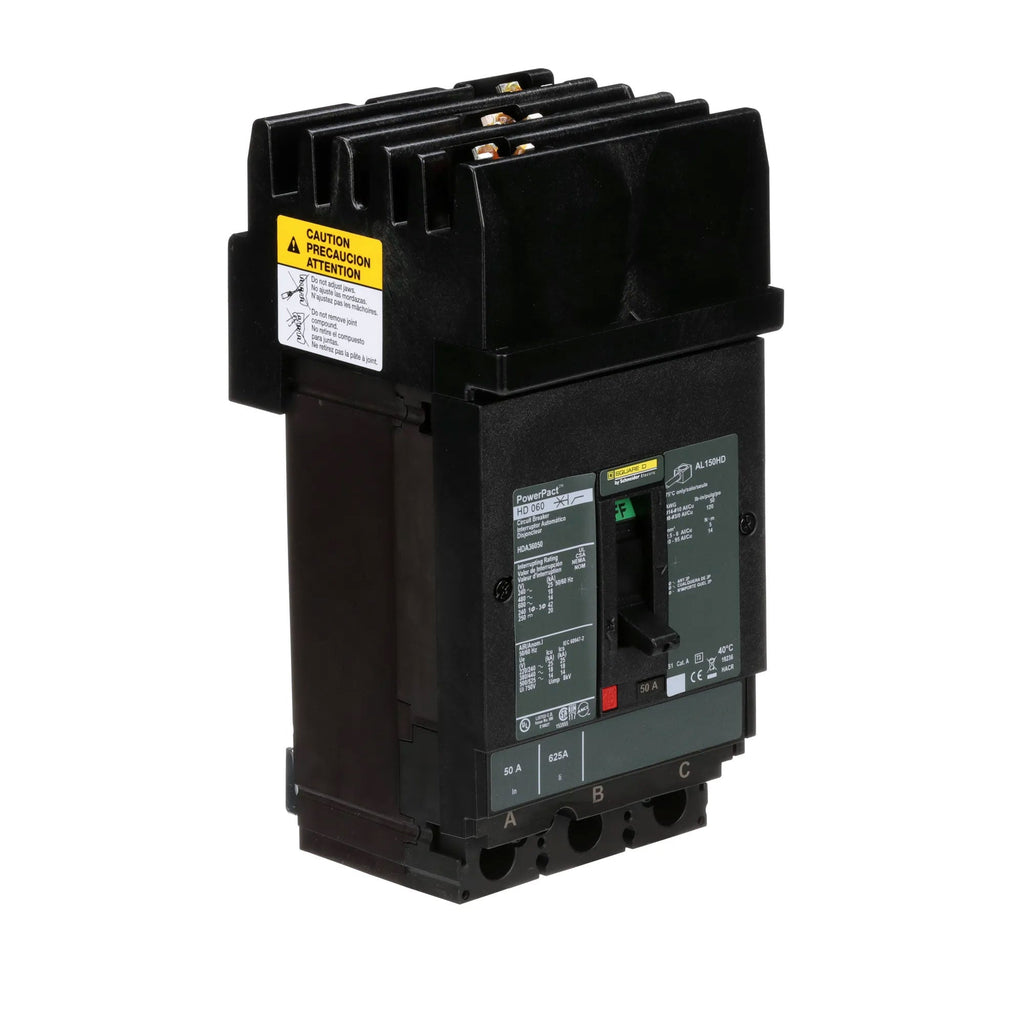

HDA36050 - Square D 50A 600V 3-Pole PowerPact H Circuit Breaker I-Line Thermal Magnetic

HDA36050

HDA36050 is a Square D PowerPact H series circuit breaker rated for 50 amps, 600 volts, and 3 poles with thermal magnetic trip unit and I-Line mounting.This molded case circuit breaker features a 14kA interrupt rating at 600VAC, 18kA at 480VAC, and 25kA at 240VAC, designed for reliable power distribution and protection. It supports ABC phase connection and is rated for continuous current at 80%. The breaker uses plug-on I-Line mounting and accepts wire gauges from AWG 14 to 3/0 aluminum or copper.

Key Specifications
• Amperage: 50 A
• Voltage Rating: 600 V AC
• Number of Poles: 3
• Interrupt Rating: 14 kA at 600 V AC, 18 kA at 480 V AC, 25 kA at 240 V AC

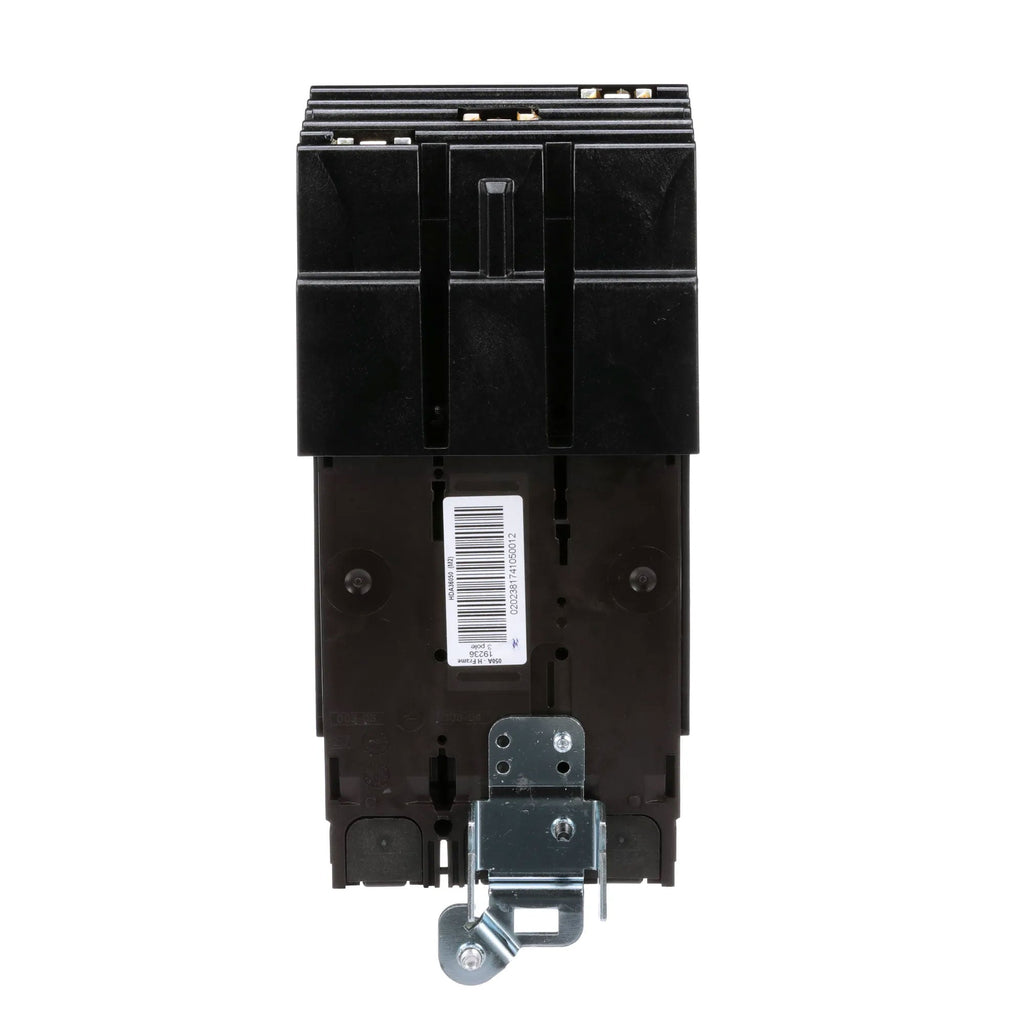

• Mounting Type: I-Line plug-on
• Trip Unit: Thermal magnetic
• Frame/Series: PowerPact H (HDA)
• Phase: ABC
• Continuous Current Rating: 80%
• Wire Gauge: AWG 14 to 3/0 aluminum/copper
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDA36050
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901539926
• GTIN : 00785901539926
• Country of Origin : Mexico

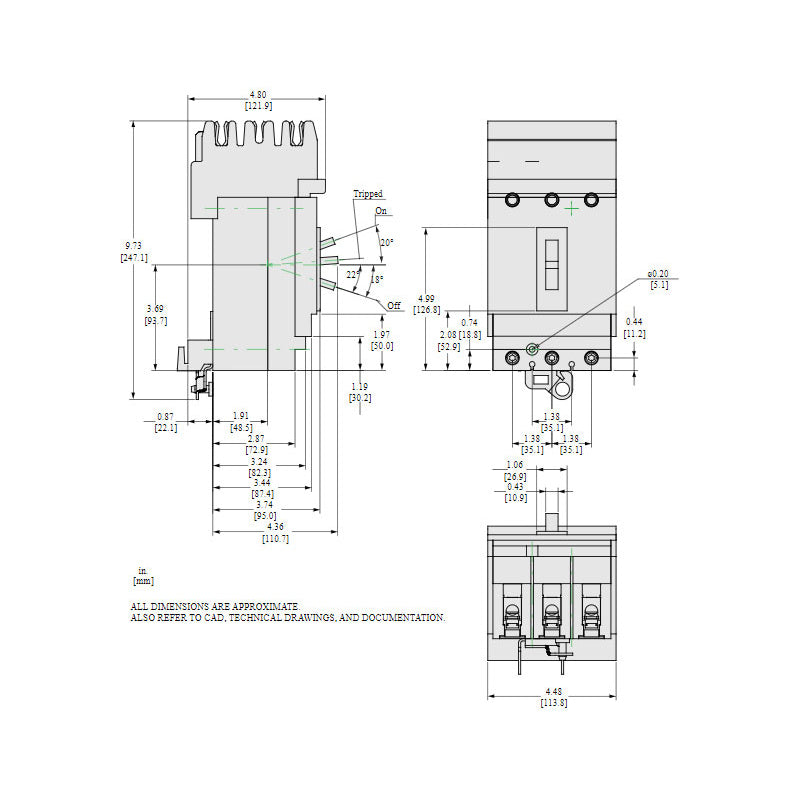

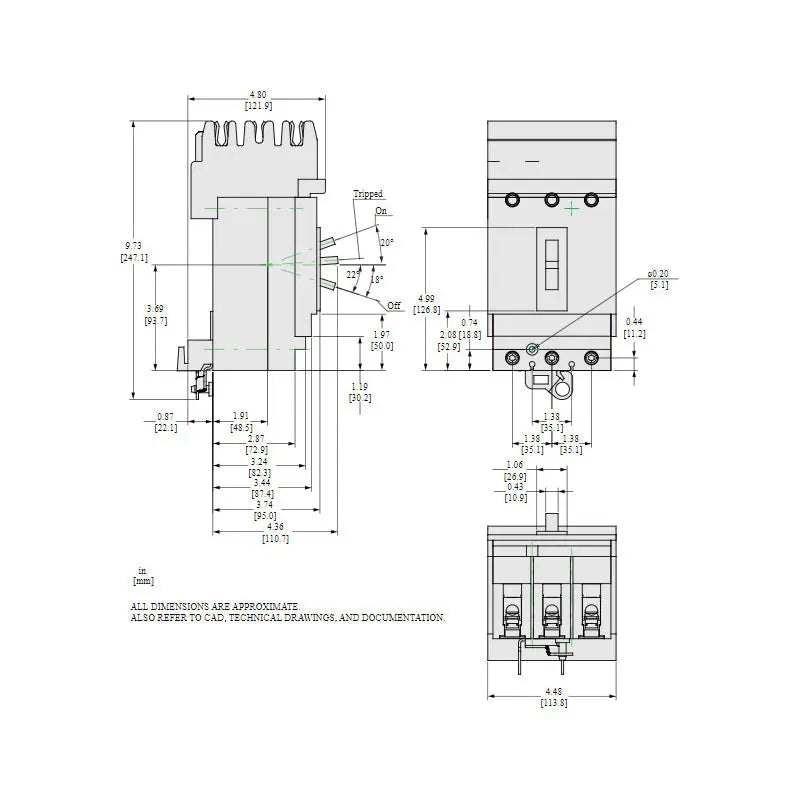

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.571
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
