HDA36035 - Square D 35 Amp 600V 3 Pole Thermal Magnetic Circuit Breaker I-Line Frame HDA

HDA36035

HDA36035 is a Square D 35 Amp 3 Pole thermal magnetic circuit breaker designed for I-Line panel mounting with a 600V AC and 250V DC rating.This molded case circuit breaker features a PowerPact HDA frame, 14kA interrupting rating at 600V AC, and long time plus instantaneous trip functions for reliable protection.

Key Specifications
• Amperage: 35 Amp
• Voltage: 600 VAC, 250 VDC
• Poles: 3
• Mounting Type: I-Line plug-in style
• Interrupt Rating: 14kA @ 600V AC, 20kA @ 250V DC
• Frame Type: HDA
• Trip Unit: Thermal Magnetic with long time and instantaneous trip
• Terminal Connection: Line and load lugs
• Wire Gauge: AWG 14 to AWG 3/0 Aluminum/Copper
• Certifications: UL, CSA, CE, IEC, NEMA, NOM, RoHS
• Operating Temperature: 40°C
• Color: Black

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDA36035
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 35
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901422235
• GTIN : 00785901422235
• Country of Origin : Mexico

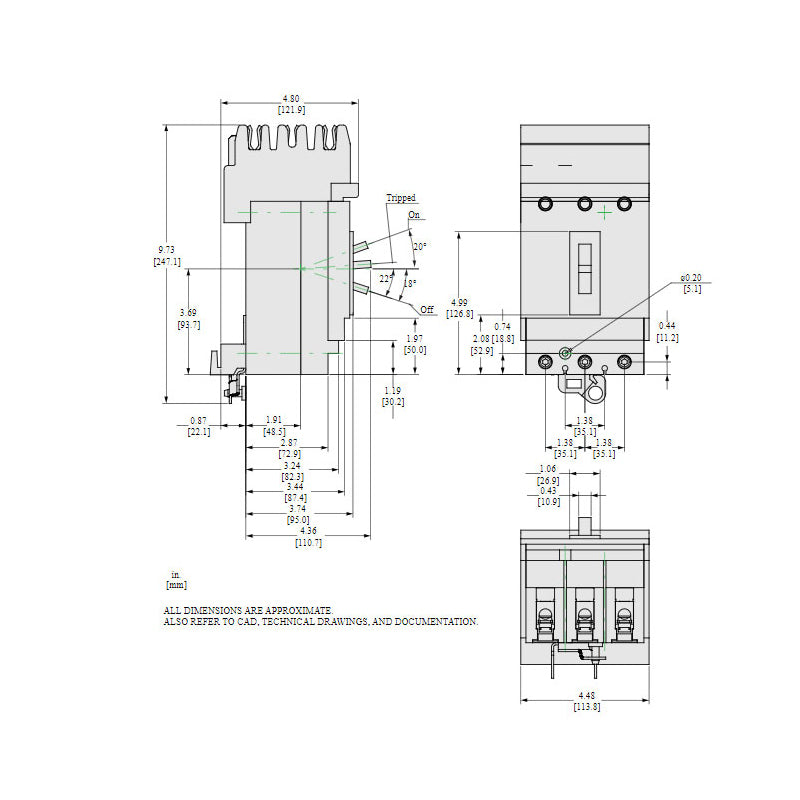

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
