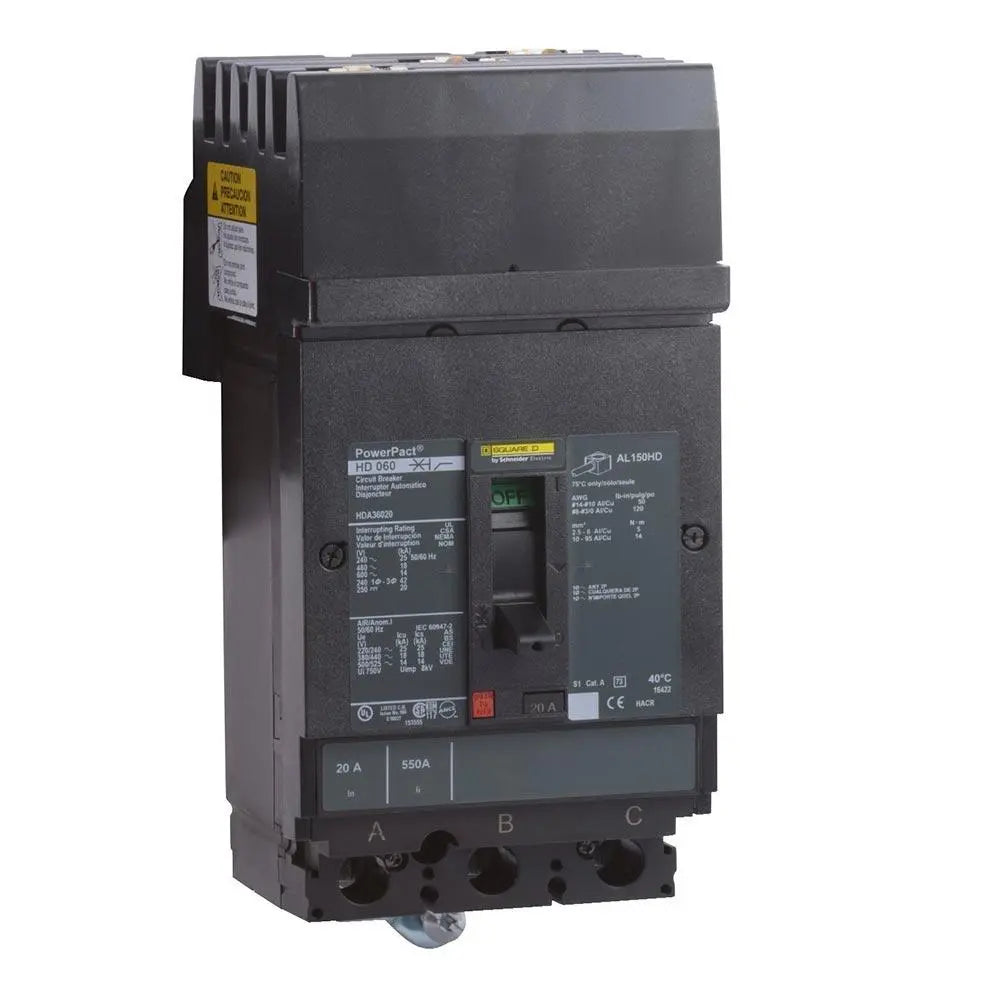

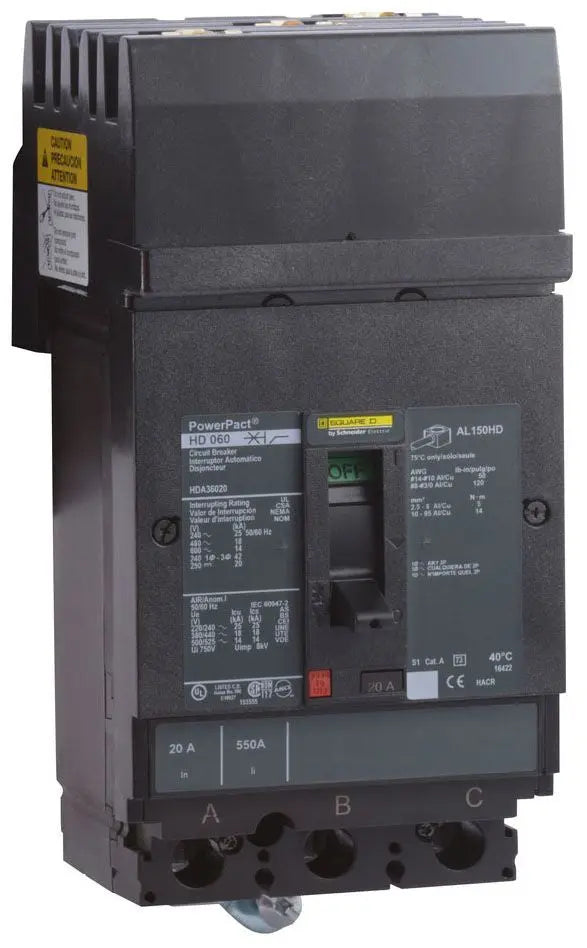

HDA36025 - Square D 25A 3 Pole 600V I-Line Molded Case Circuit Breaker, PowerPact H Series, Thermal Magnetic Trip, 18kA@480V, UL/CSA/CE

HDA36025

HDA36025 is a Square D molded case circuit breaker designed for reliable power distribution in commercial and industrial applications.

This thermal magnetic, current limiting circuit breaker features a 25A current rating, 600V AC voltage rating, and is suitable for use in Class 611/612 I-Line panelboards and switchboards. It offers robust protection with standard interrupting capacity and is approved for global safety standards.

Key Specifications
• Part Number: HDA36025
• Manufacturer: Square D
• Amperage: 25A
• Voltage: 600V AC, 250V DC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupt Rating: 18kA at 480V AC, 25kA at 240V AC, 14kA at 600V AC
• Series/Frame: PowerPact H Series, Type HDA
• Trip Unit: Thermal magnetic
• Certifications: UL, CSA, CE
• Application: Power distribution
• Suitable for reverse fed applications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDA36025
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901422822
• GTIN : 00785901422822
• Country of Origin : Mexico

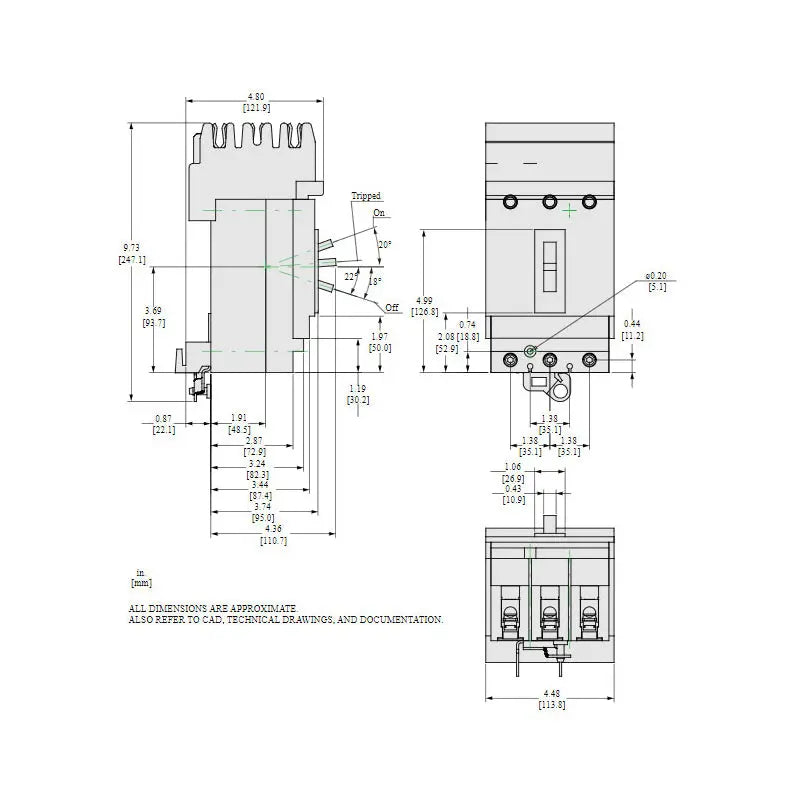

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.47
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
