HDA261504 - Square D PowerPact HDA 150A 2 Pole 600V I-Line Plug-In Molded Case Circuit Breaker, 18kAIC@480V, Thermal Magnetic Trip, UL Listed

Save $1,300.91
SKU: HDA261504-New
Condition: New
Price:
$894.09 $2,195.00
Stock:
3 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

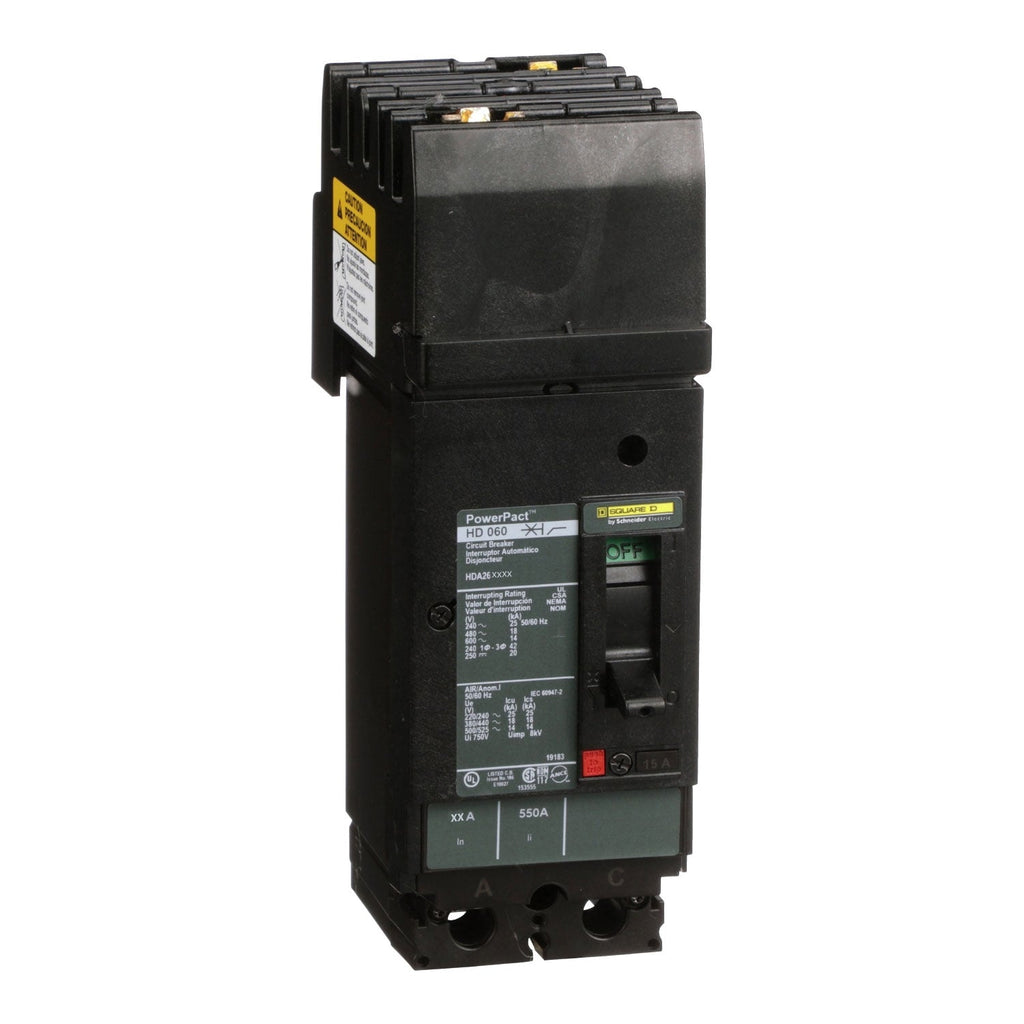

HDA261504 - Square D I-Line Style Plug-In 150 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HDA261504 - Square D I-Line Style Plug-In 600V 150A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
HDA261504 - Square D PowerPact HDA 150A 2 Pole 600V I-Line Plug-In Molded Case Circuit Breaker, 18kAIC@480V, Thermal Magnetic Trip, UL Listed - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HDA261504 - Square D I-Line Style Plug-In 150 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HDA261504 - Square D I-Line Style Plug-In 600V 150A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
HDA261504 - Square D PowerPact HDA 150A 2 Pole 600V I-Line Plug-In Molded Case Circuit Breaker, 18kAIC@480V, Thermal Magnetic Trip, UL Listed - Essential Electric Supply

Description

HDA261504


HDA261504 is a Square D PowerPact HDA series, 2 pole, 150A, 600V molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal magnetic circuit breaker features an I-Line style plug-in mounting for easy installation, a standard interrupting capacity of 18kA at 480V, and is suitable for single-phase systems. It is UL listed and includes long-time and instantaneous trip functions for enhanced safety and performance.

    Key Specifications
  • Part Number: HDA261504
  • Manufacturer: Square D
  • Series/Frame: PowerPact HDA
  • Amperage: 150A
  • Voltage: 600V
  • Poles: 2
  • Mounting Type: I-Line Style Plug-In
  • Interrupt Rating: 18kAIC at 480V
  • Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
  • Certifications: UL Listed
  • Phase: 1
  • Connection: B & C Phase
  • Suitable for reverse fed applications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HDA261504
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HDA
  • Voltage : 600
  • Amperage : 150
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : I-Line, Lug
  • Frame Size : H
  • Temp Rating : 28-158 °F (-2-70 °C)
  • MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
  • Protection : Thermal Magnetic
  • Phase Connection : BC

Product Data

  • UPC : 785901558347
  • GTIN : 00785901558347
  • Country of Origin : United States
  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 3.001
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
