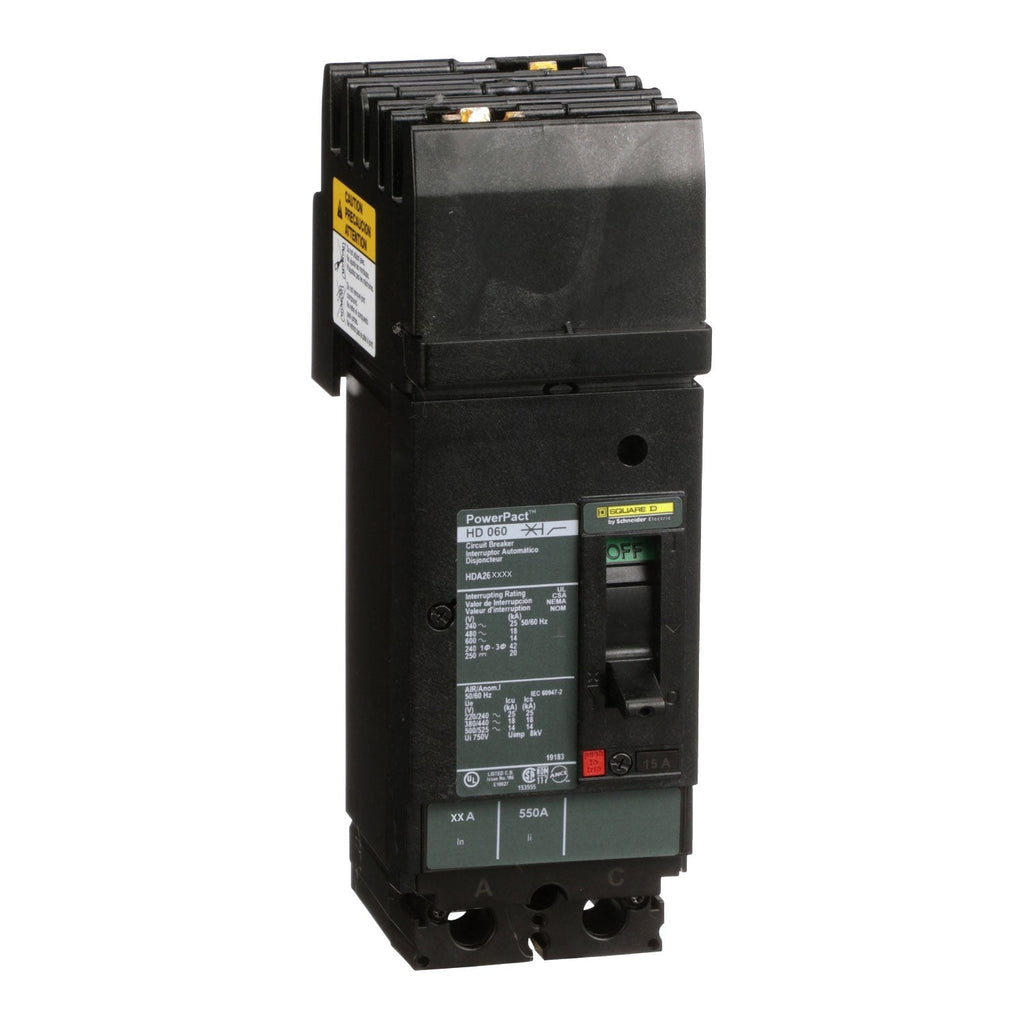

HDA261502 - Square D 150 Amp 600 Volt 2 Pole I-Line Plug-In Circuit Breaker

HDA261502

HDA261502 is a Square D 2 Pole molded case circuit breaker rated for 150 Amps and 600 Volts with I-Line style plug-in mounting.This thermal magnetic circuit breaker features long time and instantaneous trip functions, an 18kA interrupting rating at 480V, and is UL listed. It belongs to the Powerpact HDA series with a non-interchangeable trip and is suitable for 1 phase applications.

• Manufacturer: Square D
• Series: Powerpact HDA
• Amperage: 150A
• Voltage: 600V AC
• Poles: 2
• Phase: 1
• Interrupting Rating: 18kA at 480V
• Mounting Type: I-Line Style Plug-In
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous
• Frame Type: HDA
• UL Listed
• Non-Interchangeable Trip

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDA261502
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 150
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : AC

Product Data

• UPC : 785901754459
• GTIN : 00785901754459
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.96
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
