HDA261501 - Square D 150A 600V 2 Pole I-Line Style Thermal Magnetic Circuit Breaker

HDA261501

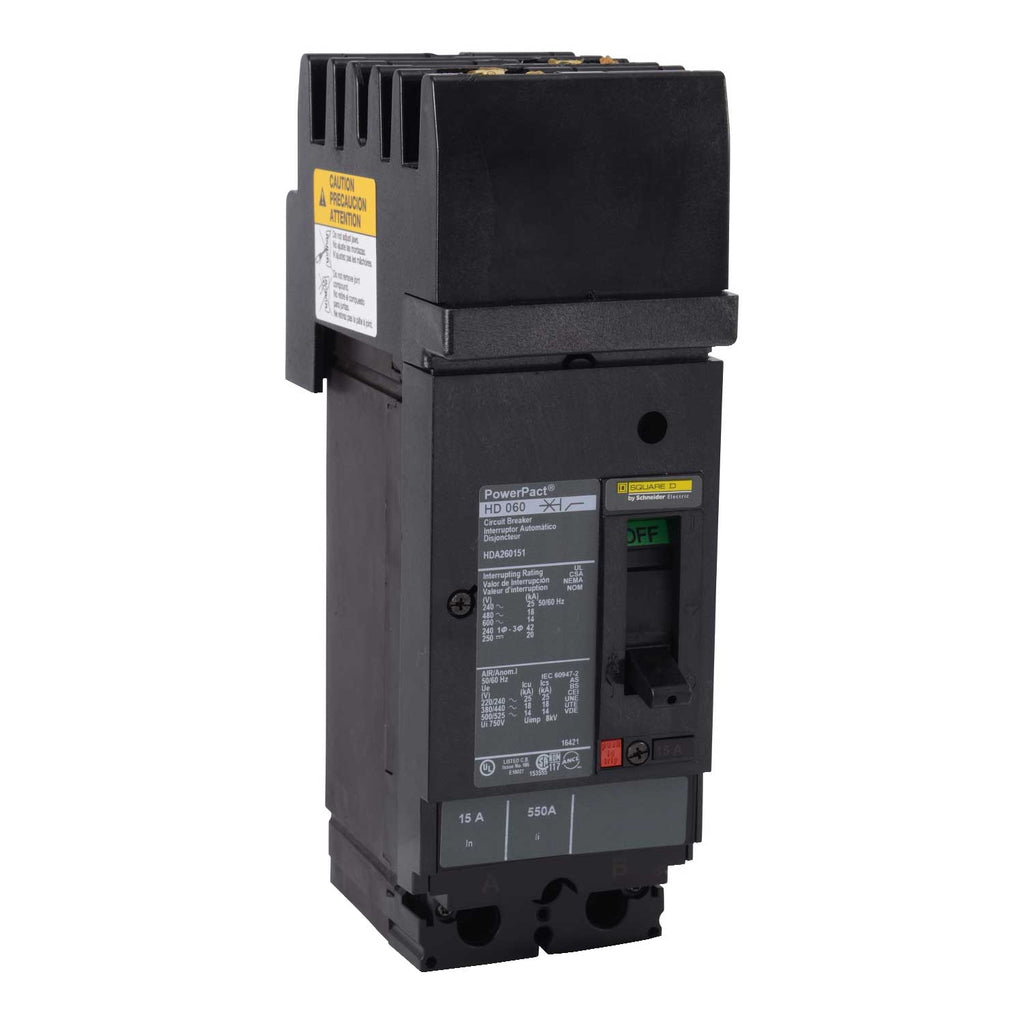

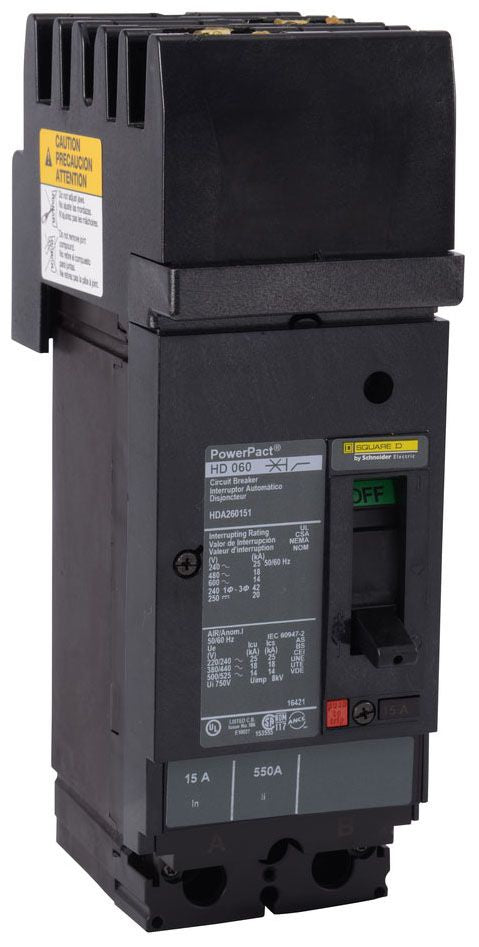

HDA261501 is a Square D 2 pole, 150 amp, 600 volt thermal magnetic circuit breaker with I-Line style plug-in mounting.This molded case circuit breaker features a PowerPact H frame with long time and instantaneous trip functions. It has an interrupting rating of 18kA at 480V AC and supports A & B phase connections. The breaker is UL listed and designed for single-phase applications with a non-interchangeable trip unit.

Key Specifications
• Manufacturer: Square D
• Part Number: HDA261501
• Amperage: 150 Amps
• Voltage Rating: 600 VAC, 250 VDC
• Poles: 2
• Frame Type: HDA (PowerPact H)
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 18kA at 480V, 14kA at 600V, 25kA at 240V
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous
• Phase: Single Phase (A & B phase connection)
• Certifications: UL Listed, CSA, CE, IEC
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HDA261501
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 150
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : AB



Product Data

• UPC : 785901419099
• GTIN : 00785901419099
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
