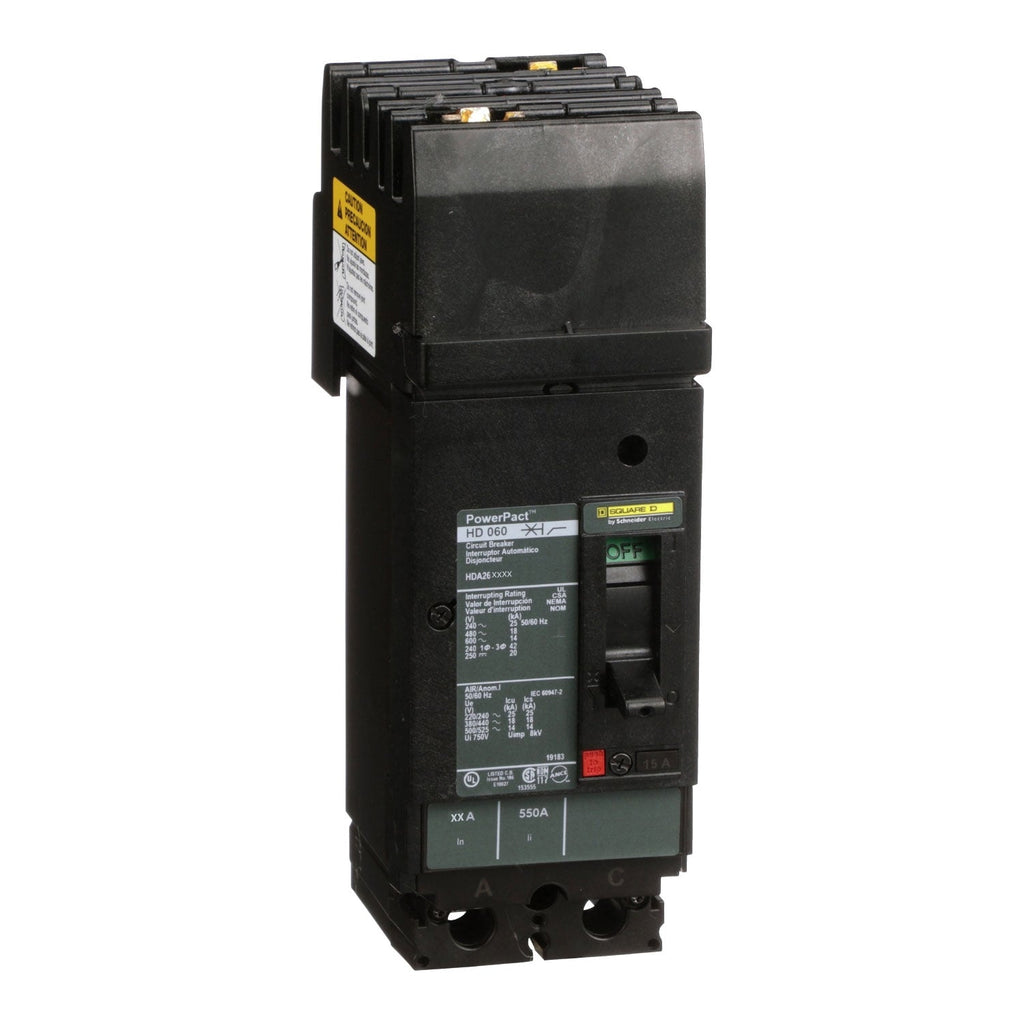

HDA261252 - Square D 125A 600V 2-Pole I-Line PowerPact H Circuit Breaker Thermal Magnetic

HDA261252

HDA261252 is a Square D PowerPact H series 2-pole molded case circuit breaker rated for 125 amps and 600 volts AC, designed for I-Line plug-in mounting.This thermal magnetic circuit breaker features a D interrupt rating with a breaking capacity of 14 kA at 600 VAC, 18 kA at 480 VAC, and 25 kA at 240 VAC. It supports 80% rated continuous current and is suitable for both AC and DC applications up to 250 VDC. The breaker is UL, CSA, and CE certified and designed for use in panelboards and switchboards with I-Line construction.

Key Specifications
• Amperage: 125 Amps
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 2
• Mounting Type: I-Line plug-in
• Interrupt Rating: 14 kA @ 600 VAC, 18 kA @ 480 VAC, 25 kA @ 240 VAC
• Frame Type: PowerPact H
• Trip Unit: Thermal Magnetic
• Interrupt Code: D
• Certifications: UL Listed, CSA, CE
• 80% Rated Continuous Current
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HDA261252
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : AC



Product Data

• UPC : 785901754428
• GTIN : 00785901754428
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
