HDA260704 - Square D PowerPact H 70A 2 Pole 600V I-Line Thermal Magnetic Circuit Breaker 14kA

HDA260704

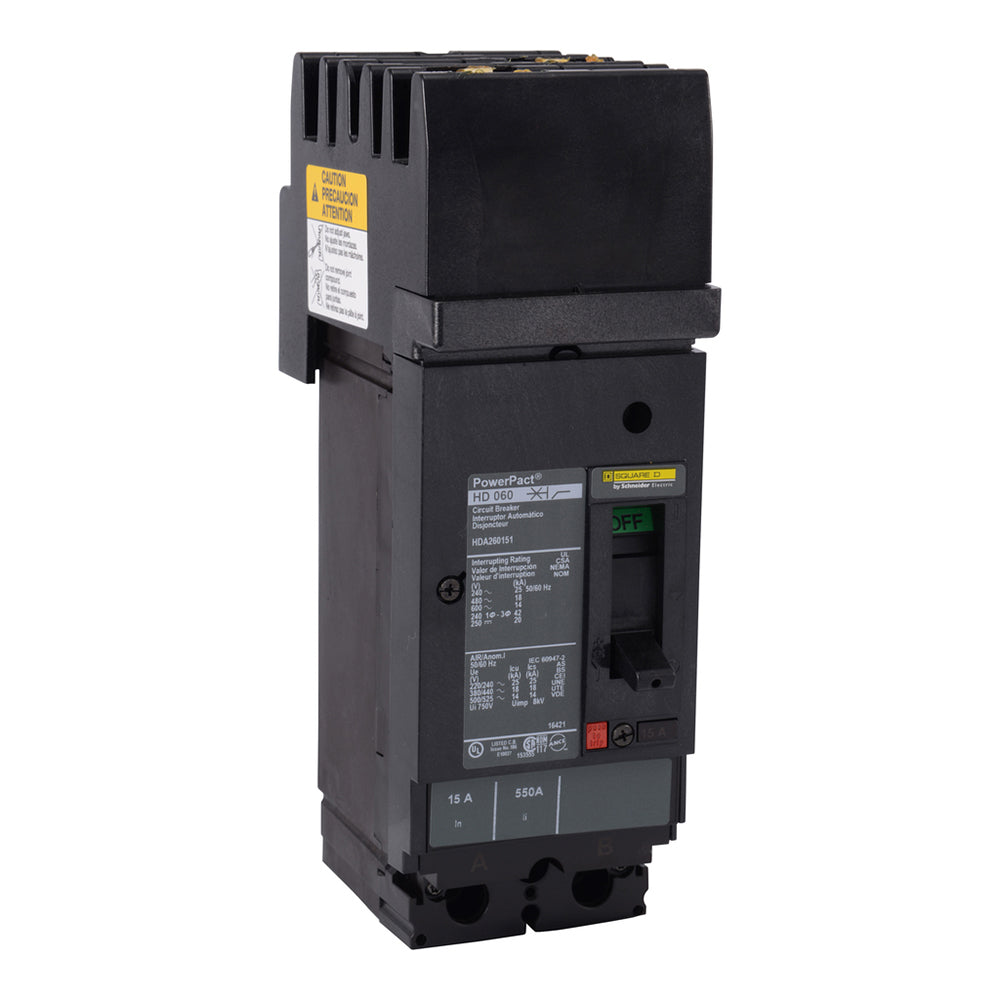

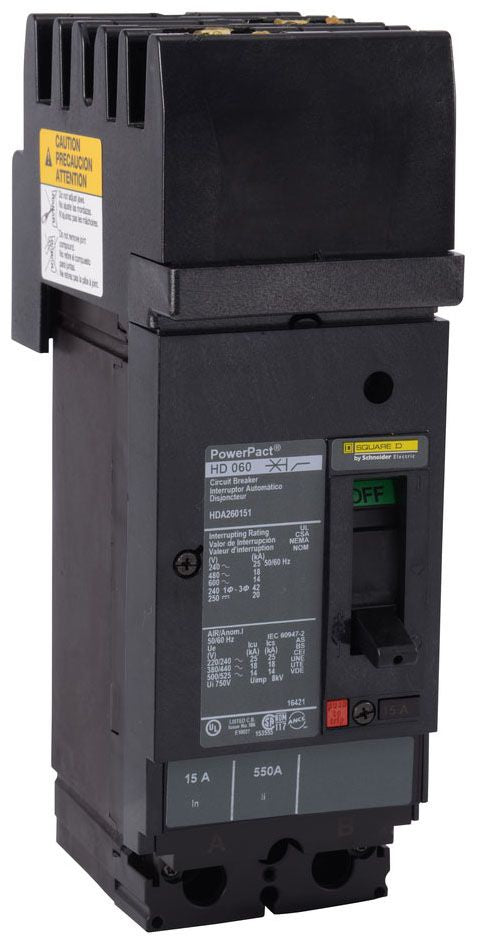

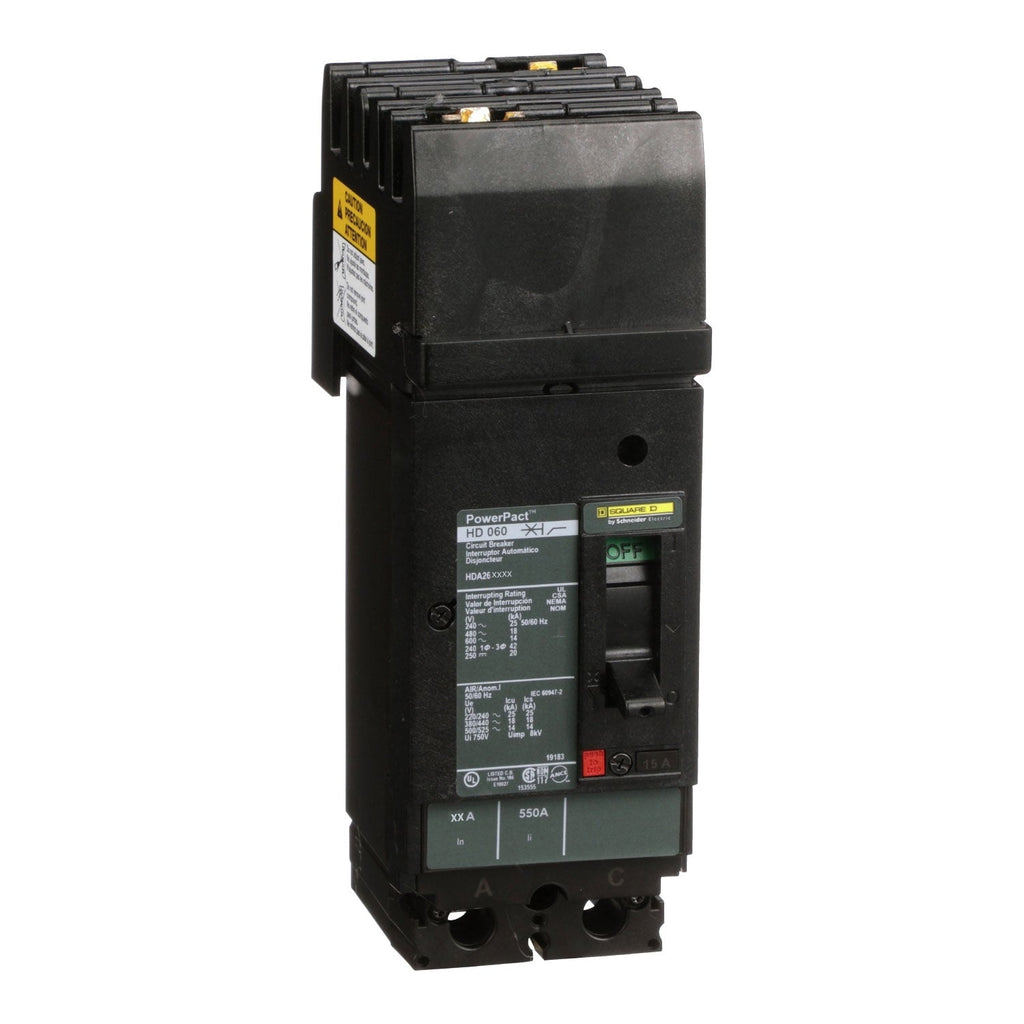

HDA260704 is a 2 pole, 70 amp, 600V I-Line plug-in molded case circuit breaker from the Square D PowerPact H series, featuring thermal magnetic trip and 14kA interrupt rating at 600V. This breaker is designed for use in I-Line panelboards and switchboards, offering reliable protection for commercial and industrial applications. It features a standard 80% rating, BC phase connection, and is suitable for reverse fed installations. The breaker is UL listed and meets CSA and CE standards for safety and performance.

• Part Number: HDA260704
• Manufacturer: Square D
• Series/Frame: PowerPact H
• Amperage: 70A
• Poles: 2
• Voltage: 600V AC
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 14kA @ 600V, 18kA @ 480V
• Trip Unit: Thermal Magnetic, LI (Long-Time and Instantaneous)
• Certifications: UL, CSA, CE
• Application: Commercial, Industrial
• Connection: BC Phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDA260704
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901750338
• GTIN : 00785901750338
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
