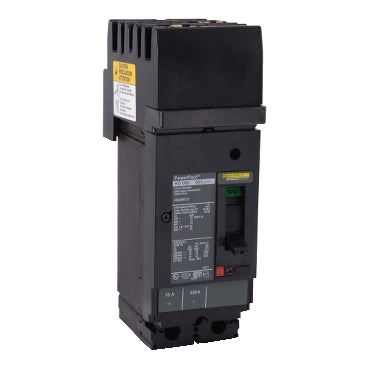

HDA260454 - Square D 45A 600V 2 Pole I-Line Molded Case Circuit Breaker 18kA Interrupt Rating

HDA260454

HDA260454 is a Square D 2 pole molded case circuit breaker rated for 45 amps and 600 volts AC, designed for I-Line style plug-in mounting.This circuit breaker features a 45 amp trip rating with a 150 amp frame, 2 poles, and an interrupt rating of 18kA at 480 volts. It is UL listed and suitable for use in industrial and commercial electrical distribution systems requiring reliable overcurrent protection.

• Manufacturer: Square D
• Part Number: HDA260454
• Amperage: 45A trip, 150A frame
• Voltage Rating: 600V AC
• Poles: 2
• Mounting Type: I-Line plug-in
• Interrupt Rating: 18kA at 480V
• UL Listed
• Type: Molded Case Circuit Breaker
• Application: Industrial/Commercial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDA260454
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Voltage : 600
• Amperage : 45
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.9
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
