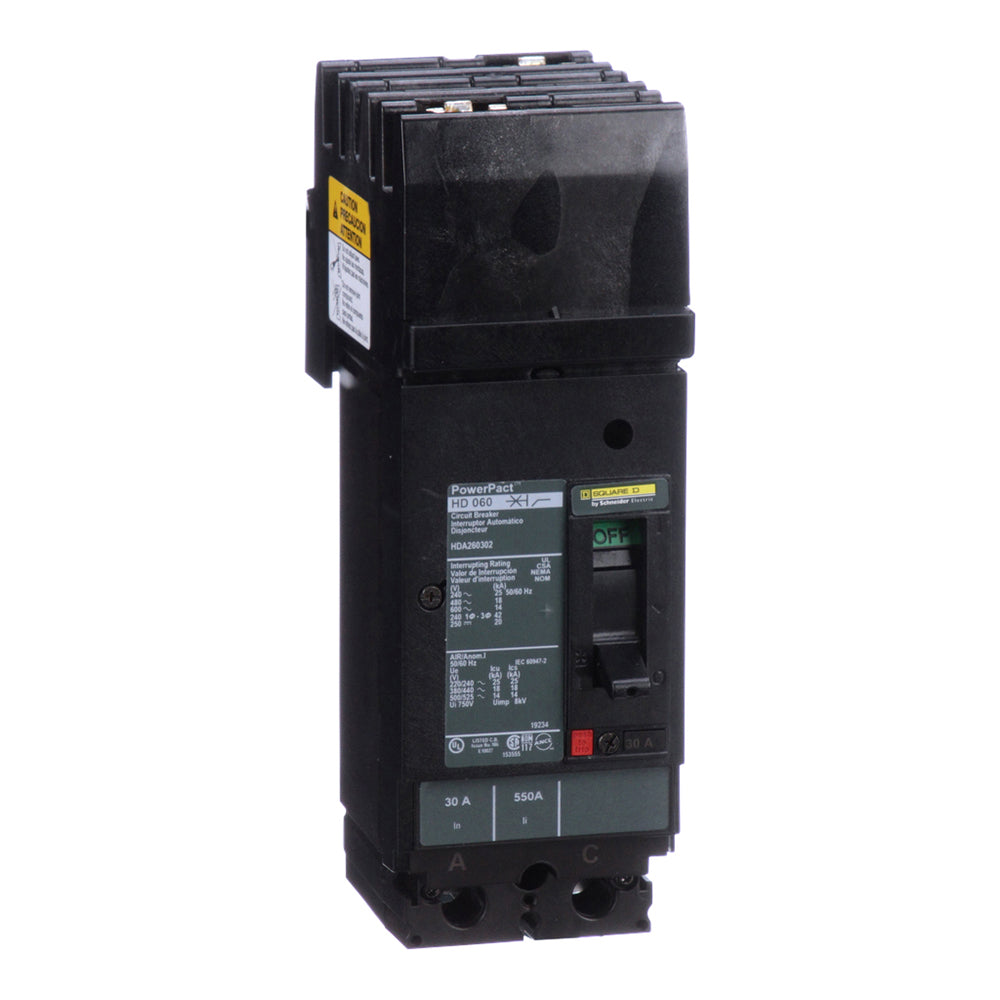

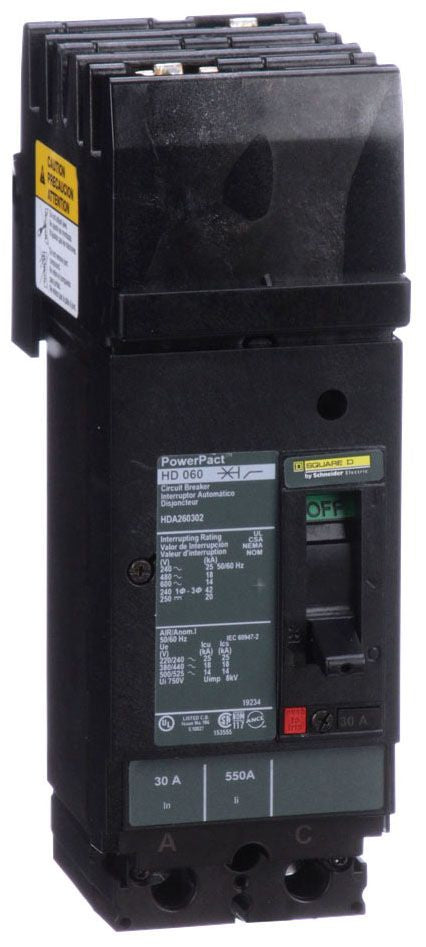

HDA260302 - Square D 30 Amp 2 Pole 600V Thermal Magnetic Molded Case Circuit Breaker I-Line

HDA260302

HDA260302 is a Square D 2 pole, 30 amp, 600 volt thermal magnetic molded case circuit breaker with I-Line plug-in mounting.This circuit breaker features a 25kA interrupting rating at 240VAC and 18kA at 480VAC, designed for overload and short circuit protection. It includes long-time and instantaneous trip functions and is UL listed. The breaker is part of the PowerPact H series with a thermal magnetic trip unit and is suitable for use in I-Line panelboards.

• Manufacturer: Square D
• Part Number: HDA260302
• Amperage: 30 Amp
• Voltage Rating: 600 Volt AC
• Number of Poles: 2
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 25kA at 240VAC, 18kA at 480VAC
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Functions
• Series/Frame: PowerPact H (HDA)
• Certifications: UL Listed, CSA, NEMA, IEC, CE Marked
• Connection Type: Plug-In

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDA260302
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : AC

Product Data

• UPC : 785901416456
• GTIN : 00785901416456
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.279
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
