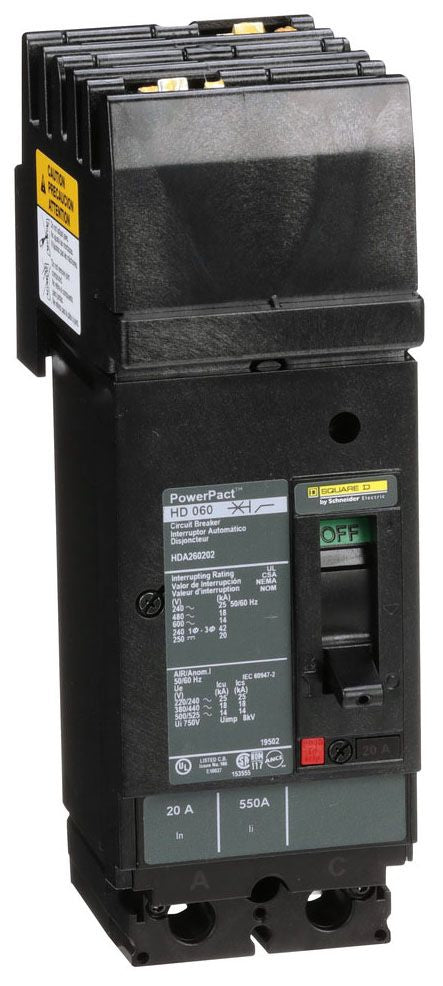

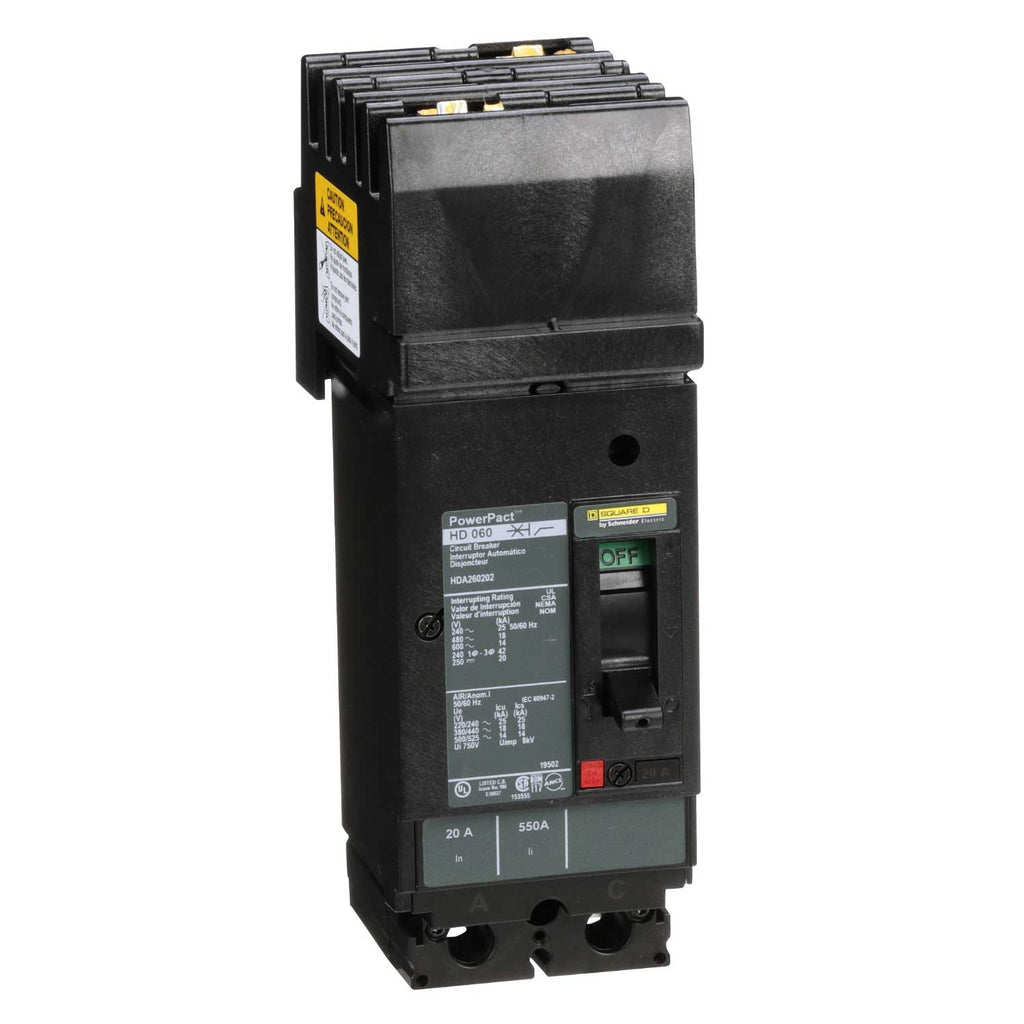

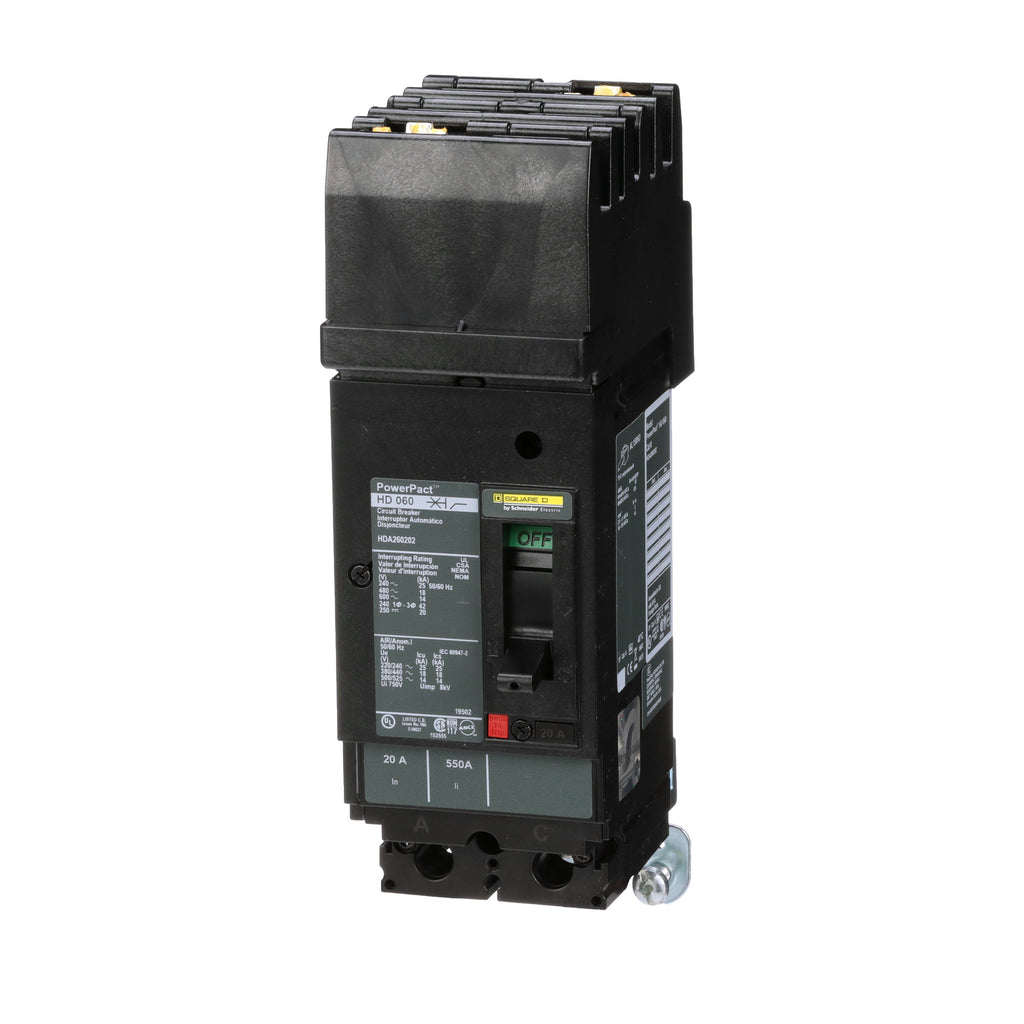

HDA260202 - Square D 20 Amp 600 Volt 2 Pole Thermal Magnetic Circuit Breaker I-Line Plug-In

HDA260202

HDA260202 is a Square D 2 Pole thermal magnetic molded case circuit breaker rated for 20 Amps and 600 Volts with I-Line style plug-in connection.This circuit breaker features long-time and instantaneous trip functions, a 25kA interrupting rating at 240VAC, and 18kA at 480VAC. It is UL listed and suitable for power distribution applications with a robust H-frame design.

• Manufacturer: Square D
• Part Number: HDA260202
• Amperage: 20 Amps
• Voltage Rating: 600 Volts AC
• Poles: 2
• Connection Type: I-Line Style Plug-In
• Interrupting Rating: 25kA at 240VAC, 18kA at 480VAC
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Functions
• Frame Type: H
• Certifications: UL Listed, CSA, CE
• Phase: Single Phase
• Protection Type: Thermal Magnetic

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDA260202
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : AC

Product Data

• UPC : 785901416371
• GTIN : 00785901416371
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.167
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
