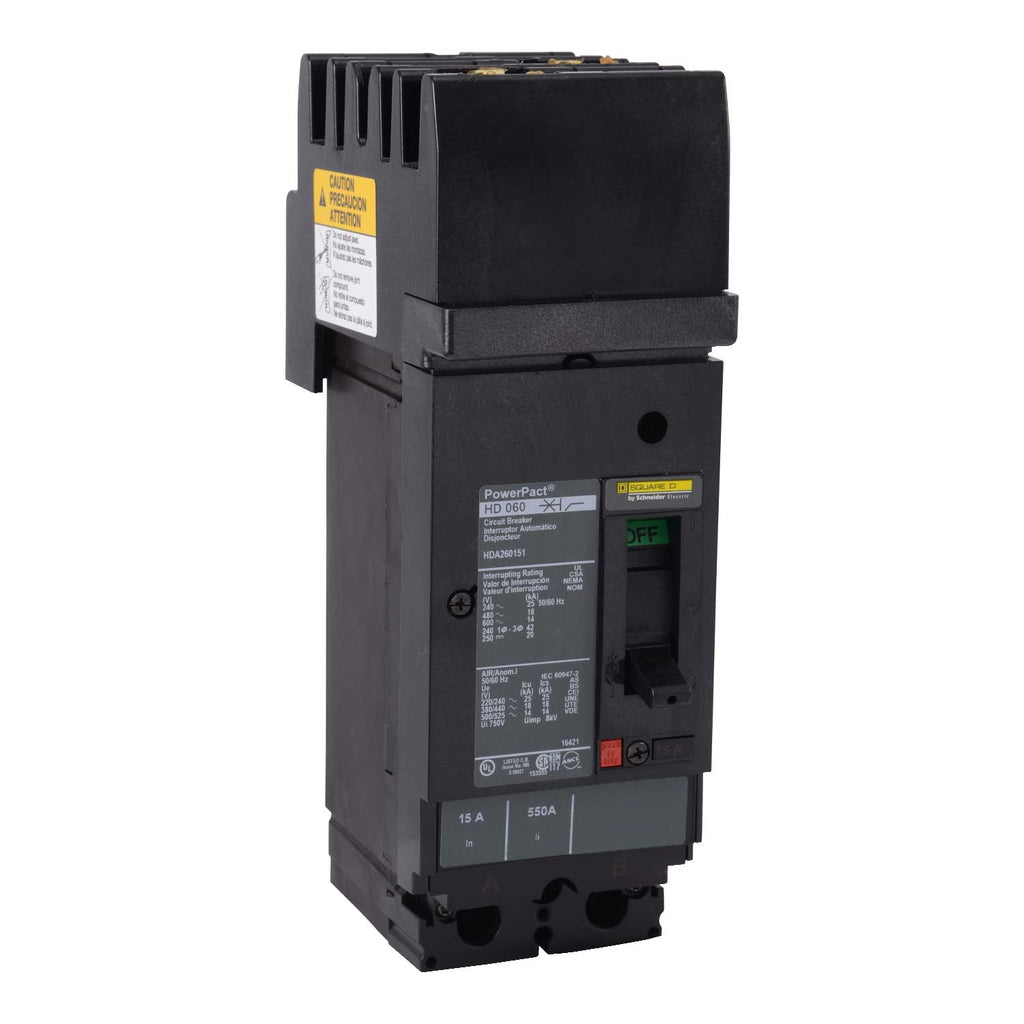

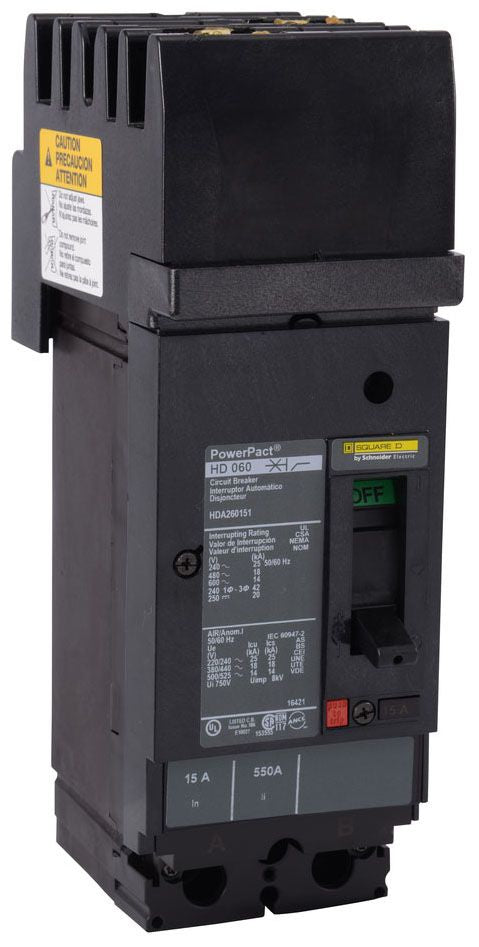

HDA260154 - Square D PowerPact H 15A 2 Pole 600V I-Line Molded Case Circuit Breaker

Save $476.91
SKU: HDA260154-New
Condition: New
Price:
$871.59 $1,348.50
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

HDA260154 - Square D I-Line Style Plug-In 15 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HDA260154 - Square D I-Line Style Plug-In 600V 15A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
HDA260154 - Square D PowerPact H 15A 2 Pole 600V I-Line Molded Case Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HDA260154 - Square D I-Line Style Plug-In 15 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HDA260154 - Square D I-Line Style Plug-In 600V 15A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
HDA260154 - Square D PowerPact H 15A 2 Pole 600V I-Line Molded Case Circuit Breaker - Essential Electric Supply

Description

HDA260154


HDA260154 is a Square D PowerPact H series molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This 2 pole, 15A, 600V breaker features I-Line mounting and a thermal-magnetic trip unit for precise overcurrent protection. It is suitable for use in I-Line panelboards and switchboards, offering robust performance and safety in demanding applications. The HDA260154 circuit breaker is built with a current limiting design and is rated for 25kA at 240V, 18kA at 480V, and 14kA at 600V. It is UL, CSA, and CE listed, ensuring compliance with major safety standards. The breaker is designed for easy installation and reliable operation in a wide range of environments.
  • Part Number: HDA260154
  • Manufacturer: Square D
  • Series/Frame: PowerPact H
  • Amperage: 15A
  • Poles: 2 Pole
  • Voltage: 600V AC
  • Mounting Type: I-Line
  • Interrupt Rating: 25kA @ 240V, 18kA @ 480V, 14kA @ 600V
  • Trip Unit: Thermal-Magnetic
  • Current Limiting: Yes
  • Certifications: UL, CSA, CE
  • Application: I-Line Panelboards and Switchboards
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HDA260154
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HDA
  • Voltage : 600
  • Amperage : 15
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : LI - Long-Time and Instantaneous
  • Frame Size : H Frame
  • Temp Rating : 28-158 °F (-2-70 °C)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901413059
  • GTIN : 00785901413059
  • Country of Origin : Mexico
  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 3.001
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal

Accesories

Part Manufacture Sub Category
S29452
S29450
S29388
S29408
S29410
CYA150HD
