Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

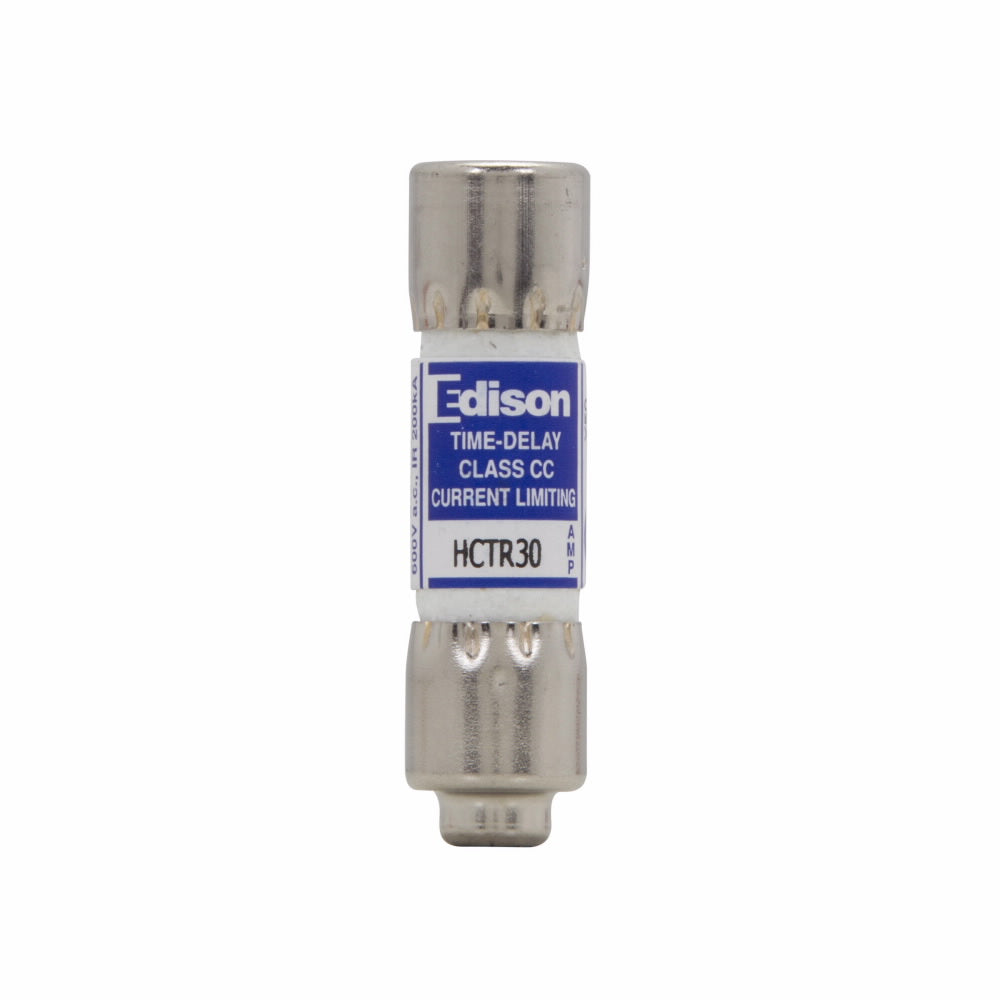

HCTR30
HCTR30 is a 30 amp, 600 volt Class CC time-delay fuse from Edison Fuses designed for control circuit protection.This HCTR30 fuse features current-limiting technology with a 200kA interrupt rating at 600 VAC, providing reliable protection for control transformers and downstream components. It is a single-pole fuse with a 1-1/2 inch length and 13/32 inch diameter ferrule, meeting UL 508 and CSA standards for Class CC fuses. The fuse is non-indicating and has a rejection feature to prevent installation in incompatible fuse holders.
- Key Specifications
- Amperage: 30A
- Voltage Rating: 600 VAC
- Fuse Class: CC
- Time-Delay Type
- Interrupt Rating: 200kA RMS Sym.
- Poles: 1
- Length: 1.5 inches
- Diameter: 13/32 inches
- Mounting Type: Ferrule
- Certifications: UL Listed, CSA Certified
- Rejection Type: Yes
Specifications
- Part Number: HCTR30
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : HCTR Series
- Type : HCTR
- Voltage : 600
- Amperage : 30
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 78263483901
- GTIN : 00782634839019
- Dimensions : 1 in x 0.406 in x 0.406 in (Length/Depth x Height x Width)
- Weight : 0.02
