Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
HCTR1

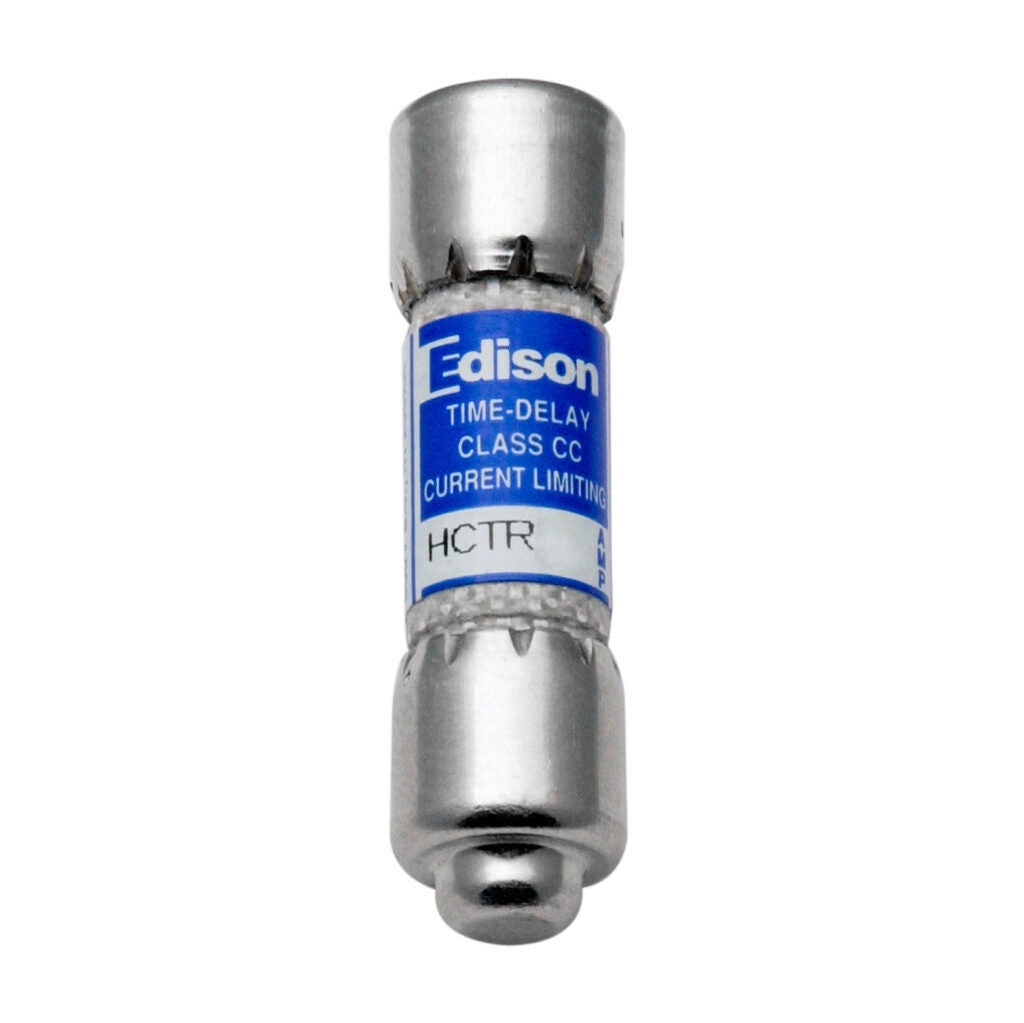

HCTR1 is a Class CC time-delay fuse from Edison Fuses, designed for feeder and branch circuit protection with reliable current-limiting performance.This Edison HCTR1 fuse features a 1A amperage rating and a 600VAC voltage rating, making it suitable for control circuit transformer protection and other low-voltage applications. The ferrule body type ensures secure connections, while the time-delay characteristic provides protection against temporary overloads without nuisance tripping. Each pack contains 10 fuses for convenient replacement and maintenance.
- Part Number: HCTR1
- Manufacturer: Edison Fuses
- Amperage Rating: 1A
- Voltage Rating: 600VAC
- Fuse Class: Class CC
- Response Time: Time-Delay
- Body Type: Ferrule
- Interrupt Rating: 200,000A IR Vac Sym
- Series: HCTR
- Mounting Type: Ferrule (13/32" x 1-1/2")
- Agency Approvals: UL Listed, CSA C22.2
- Application: Feeder/branch protection, control circuit transformer protection
Specifications
- Part Number: HCTR1
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 1
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 78263480207
- GTIN : 00782634802075
- Dimensions : 1 in x 0.406 in x 0.406 in (Length/Depth x Height x Width)
- Weight : 0.03
