Product Info
- Manufacturer:Siemens
- Sub-Category:Panel Mount
Description
HCP368H

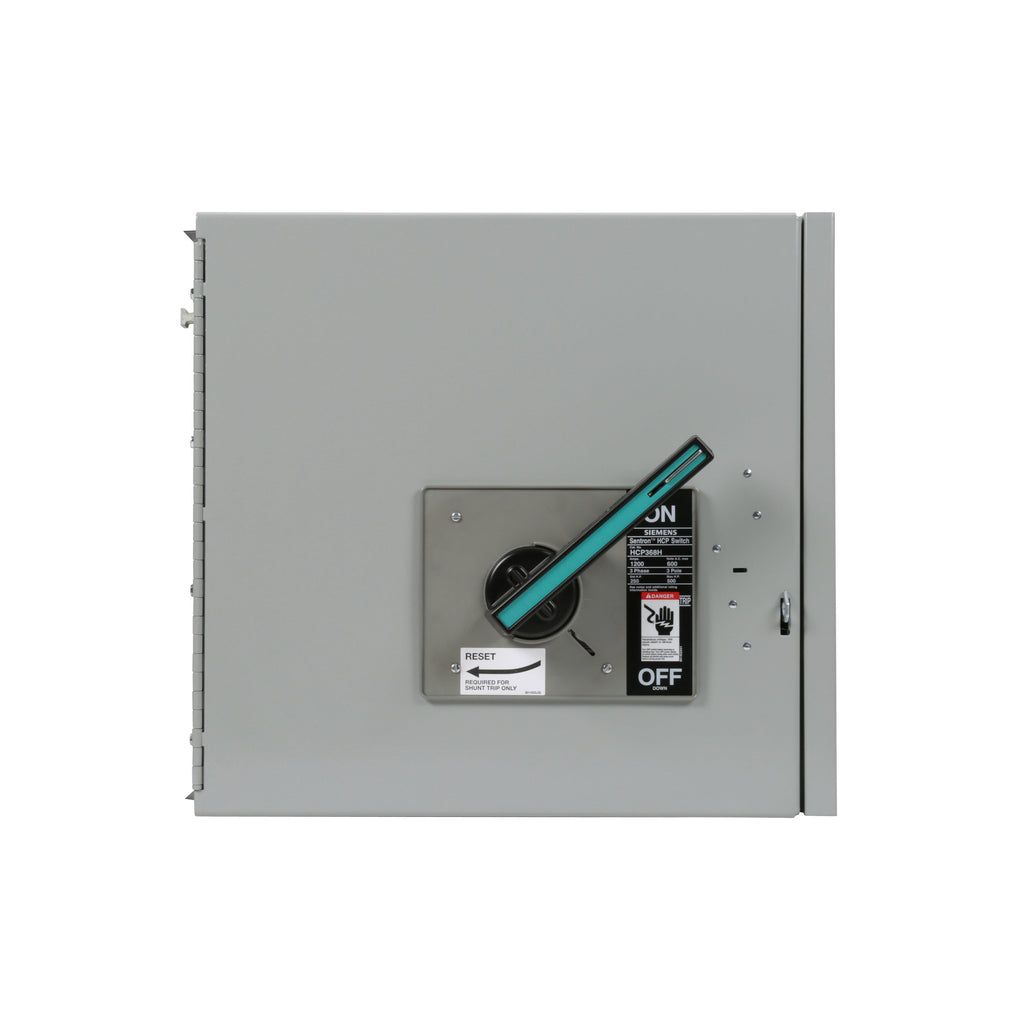

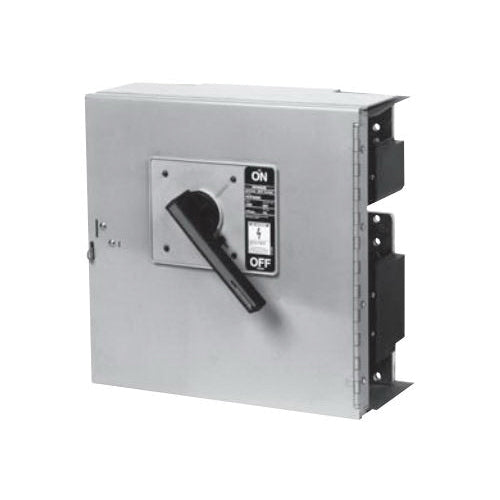

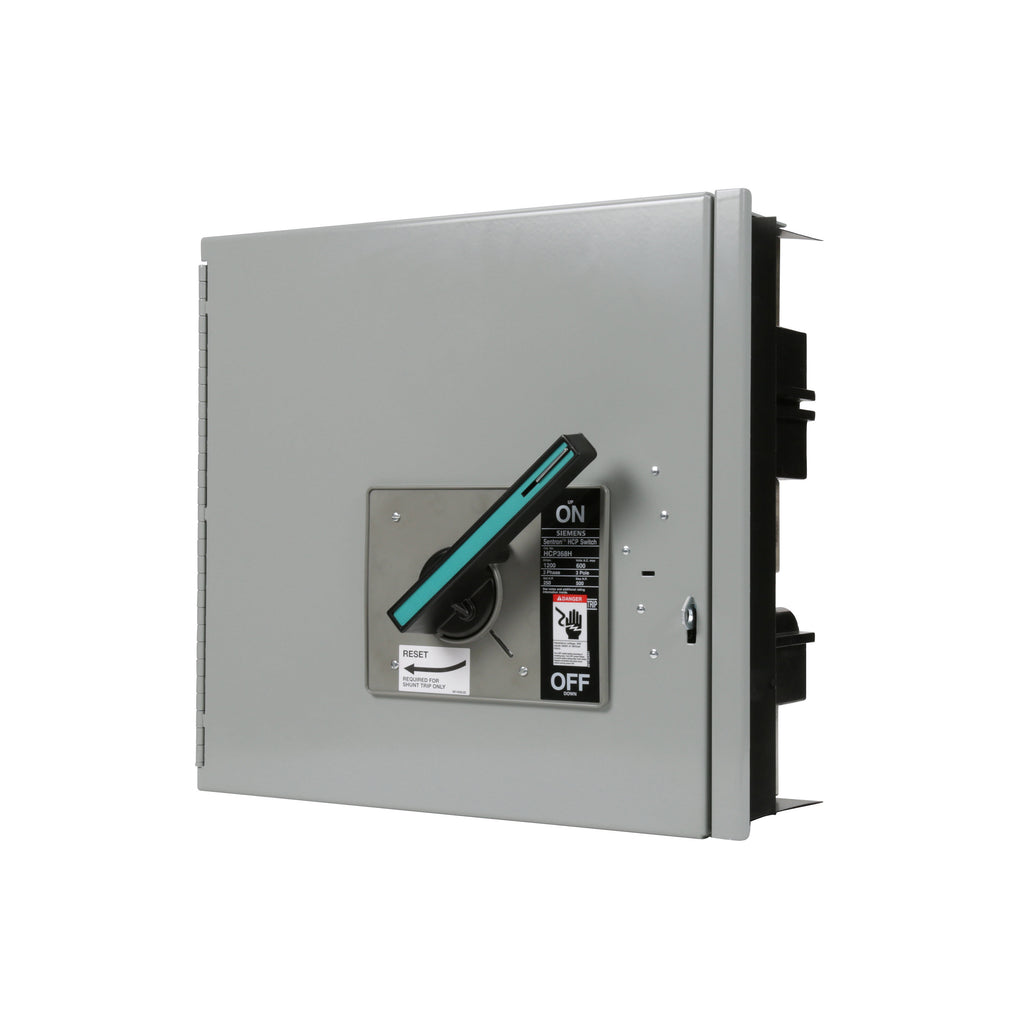

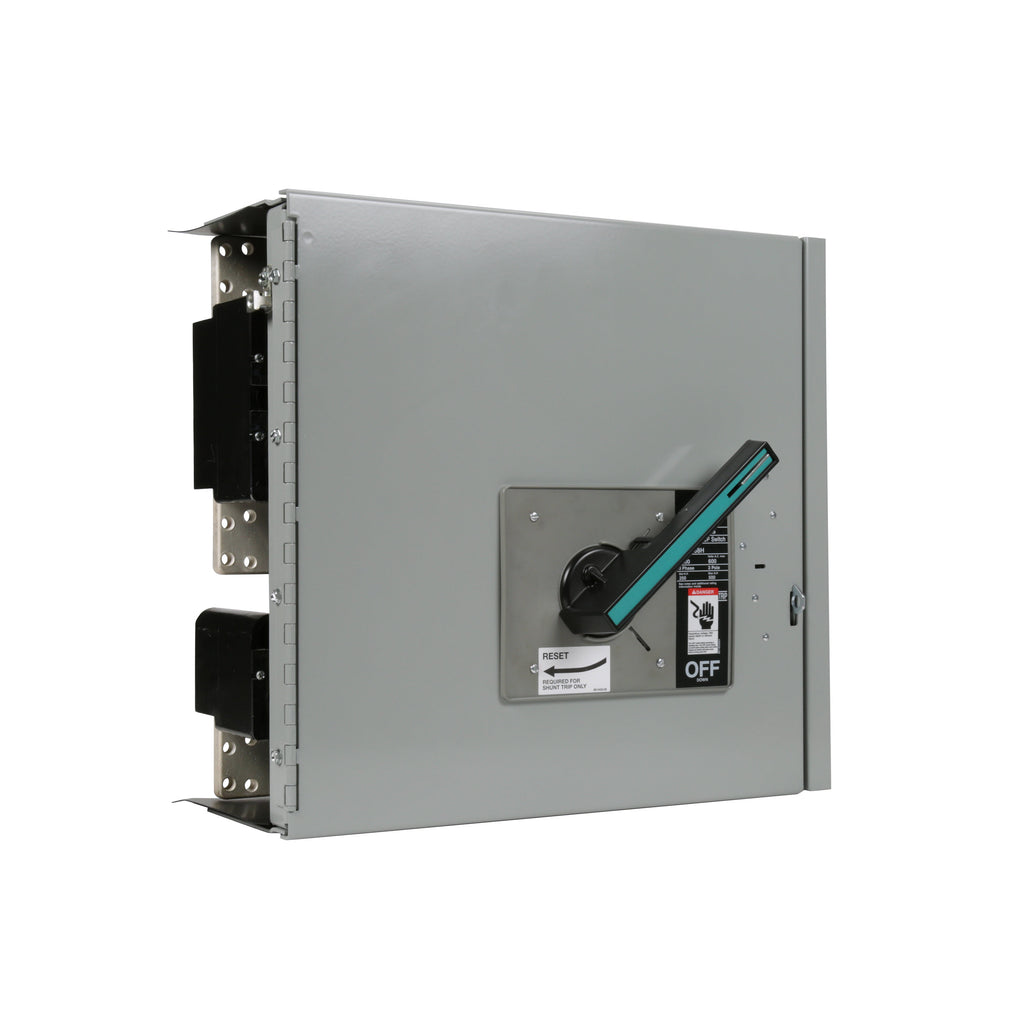

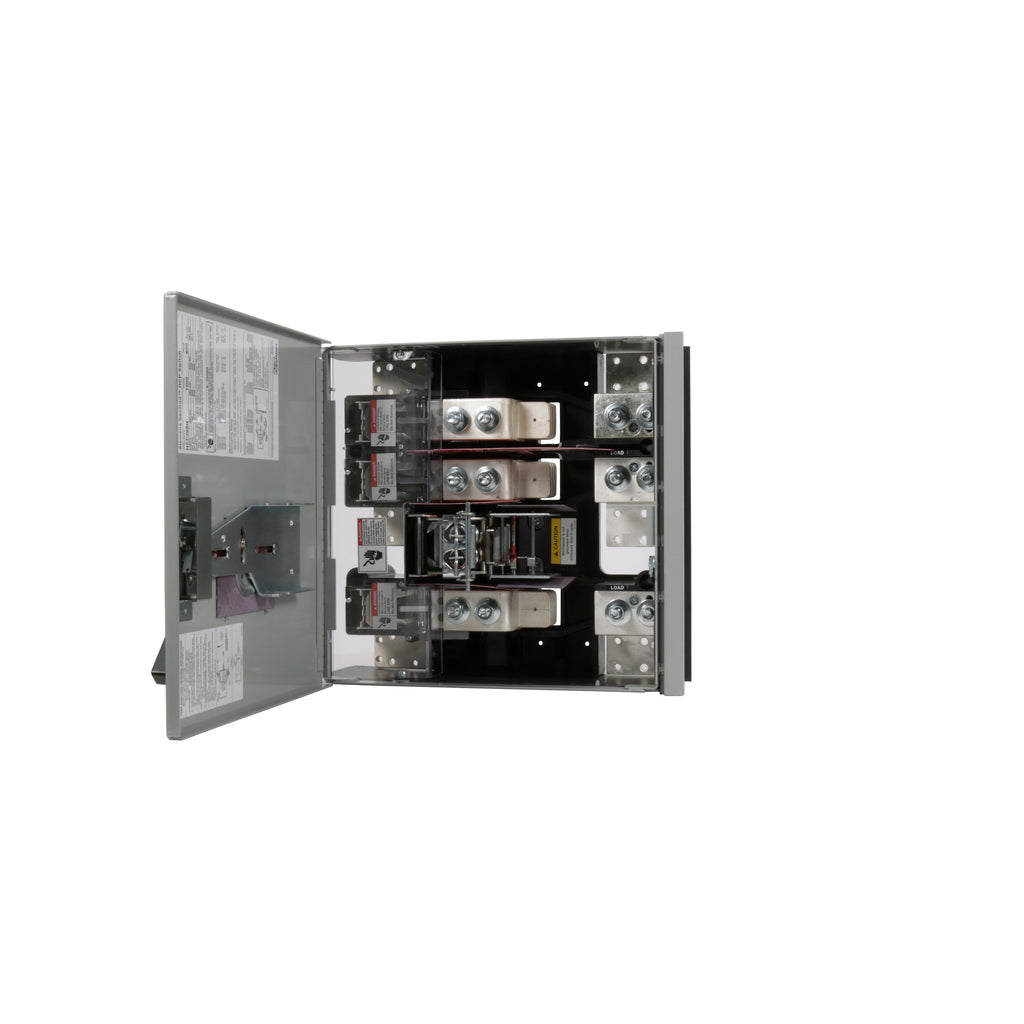

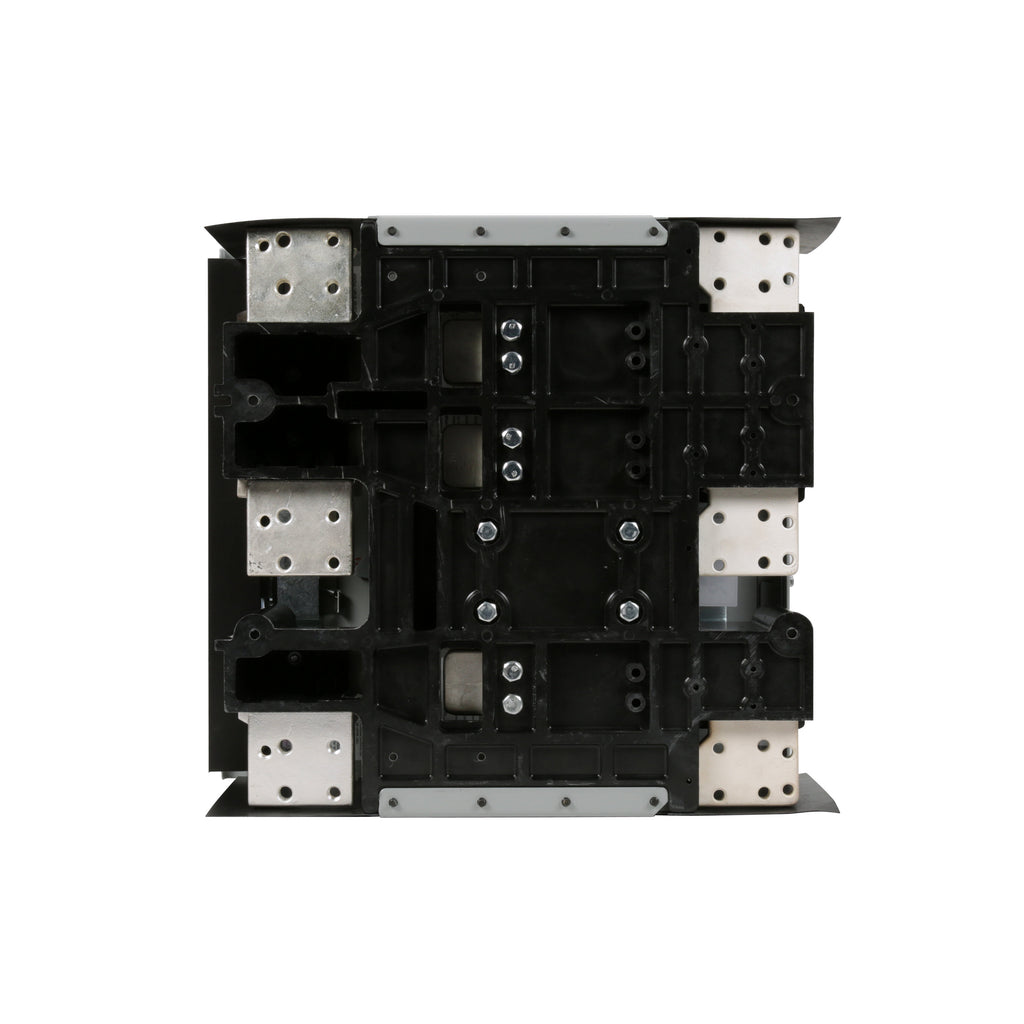

HCP368H is a Siemens 3-pole, 3-phase panel mount switch rated for 1200 Amps and 600 Volts, designed for reliable power distribution.HCP368H features a horizontal mount with L class fuse provision, a NEMA 1 enclosure rating, and a 200kA interrupt rating at 480V. It supports 60 Hz frequency and is suitable for switchboard units requiring high interrupt capacity and robust performance.
- Key Specifications
- Amperage: 1200A
- Voltage: 600V
- Poles: 3
- Mounting Type: Horizontal Panel Mount
- Interrupt Rating: 200kA at 480V
- Series/Frame: Type HCP
- Fuse Provision: L Class
- Enclosure Rating: NEMA 1
- Frequency: 60 Hz
- Horsepower Rating: 250/500 HP
- Padlocking Handle Actuator
- Certifications: UL Listed
Specifications
- Part Number: HCP368H
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Sentron Series
- Type : HCP
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : L
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : MHP
Product Data
- UPC : 783643308817
- GTIN : 00783643308817
- Country of Origin : Mexico
- Weight : 77.301
