Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBLMITL

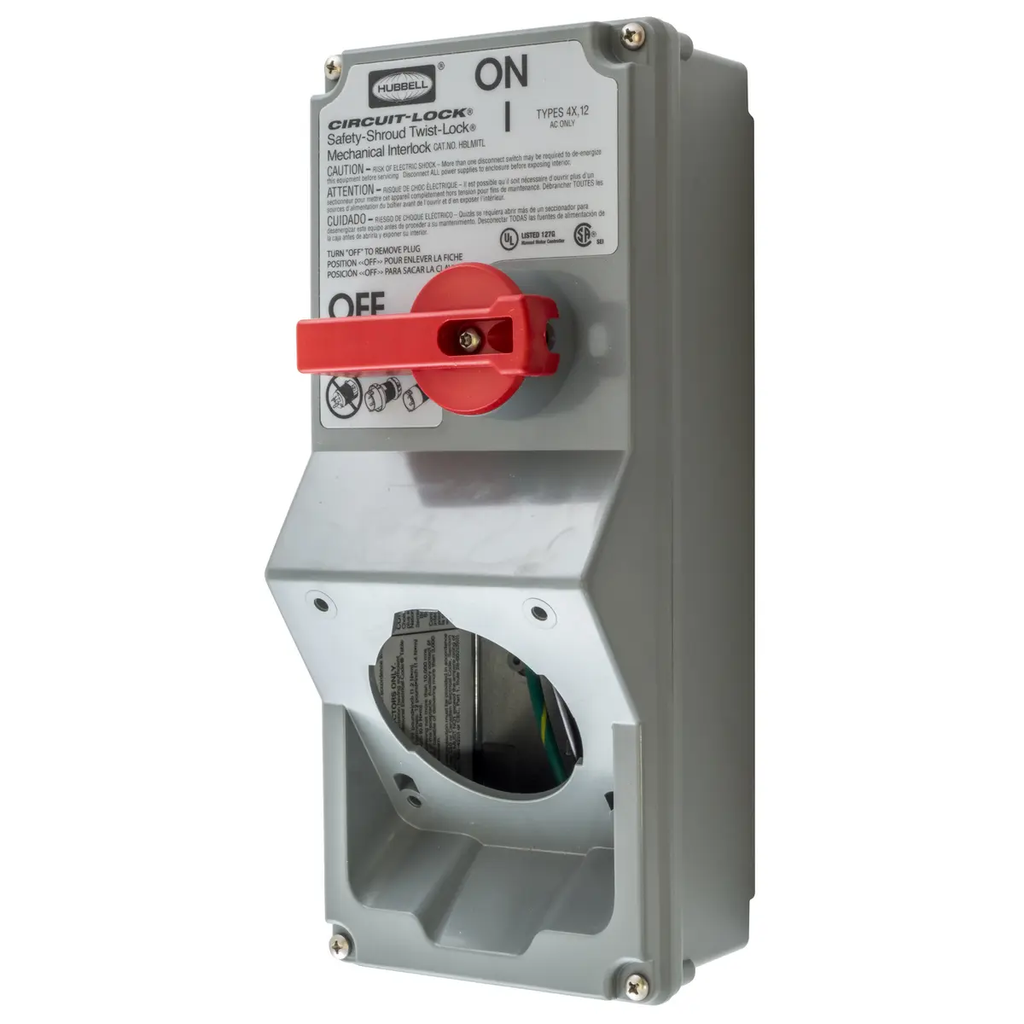

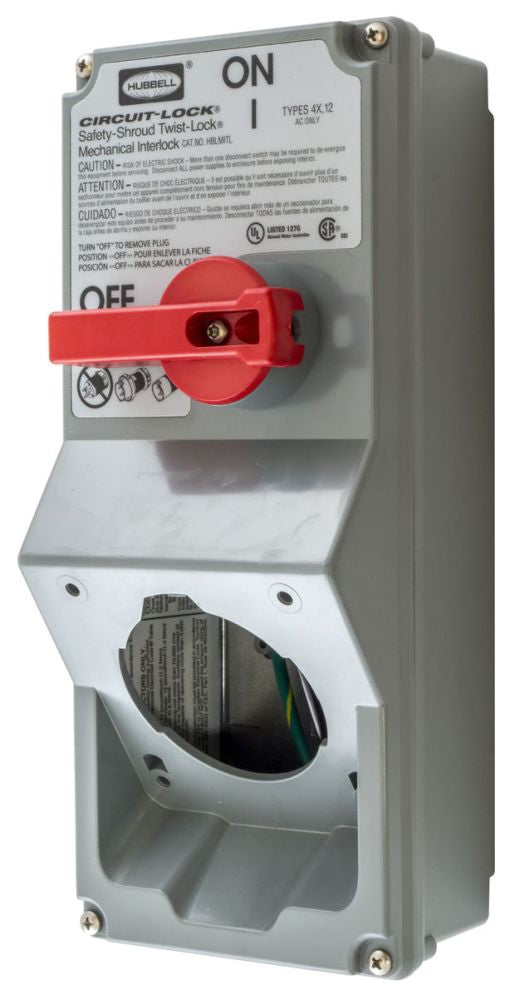

HBLMITL is a Hubbell mechanical interlock switched enclosure designed for 30A, 600V applications with a 3-pole configuration and NEMA 4X watertight rating.This unfused mechanical interlock integrates a watertight Safety-Shroud Twist-Lock receptacle with a linked disconnect switch to prevent circuit making or breaking under load. The enclosure is corrosion resistant, non-metallic with an internal frame for ground continuity, and allows top, bottom, or back feed mounting. It is CSA certified and UL listed for industrial heavy-duty use, with a dielectric strength of 3000V minimum.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 600 VAC
- Poles: 3
- Mounting Type: Top, Bottom, or Back Feed
- Interrupt Rating: Mechanical Interlock (unfused)
- Enclosure Rating: NEMA 4X Watertight
- Material: Non-metallic with internal grounding frame
- Style: For 20A and 30A Twist-Lock Devices
- Certifications: CSA Certified, UL Listed
- Dielectric Strength: 3000V minimum
- Color: Gray
- Weight: 3.65 lb
Specifications
- Part Number: HBLMITL
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
Product Data
- UPC : 783585176802
- GTIN : 00783585176802
- Weight : 1
