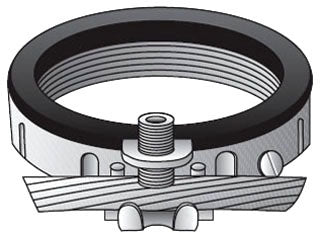

HBLG4122 - OZ/Gedney 4 in Trade Insulated Grounding Bushing for Rigid IMC EMT, Tin Plated Copper, 8 AWG Min, Zinc Plated Malleable Iron

HBLG4122

HBLG4122 is a specification grade insulated grounding bushing designed for use with 4-inch trade size conduit. This grounding bushing provides a reliable, low-profile connection for grounding conductors in electrical installations.Engineered for durability and safety, the HBLG4122 features a tin-plated copper grounding path and a zinc plated malleable iron body. It is compatible with rigid, IMC, and EMT conduit types and supports grounding conductors from 8 AWG solid/stranded up to 2/0 AWG stranded. The lay-in lug design allows for easy insertion and secure connection, while the set screw ensures fixed alignment and positive ground continuity. The phenolic insulation is rated for 150°C and will not shatter or shrink at sub-zero temperatures.

• Trade Size: 4 inch
• Conductor Range: 8 AWG solid/stranded to 2/0 AWG stranded
• Material: Malleable Iron, Zinc Plated
• Grounding Path: Tin Plated Copper
• Insulation: Phenolic, 150°C rated
• Mounting Type: Threaded, Set Screw
• Lug Type: Lay-In
• Compatible Conduit Types: Rigid, IMC, EMT
• Standards: UL 514B, UL 467, UL 468, CSA C22.2 No. 41, NEMA FB-1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBLG4122
• Manufacturer : OZ/Gedney
• Brand : OZ/Gedney

Product Data

• UPC : 78312627051
• GTIN : 00783126270518
• Weight : 5.19
