Product Info
- Manufacturer:OZ/Gedney
Description
HBLG2022

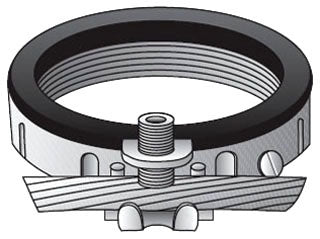

HBLG2022 is an insulated grounding bushing designed for use with 2-inch rigid conduit and IMC applications. This grounding bushing provides a compact and reliable means of grounding conduit systems while maintaining electrical isolation. Constructed with a malleable iron body and stainless steel screws, the HBLG2022 features a hot dip galvanized finish for enhanced corrosion resistance. The copper lay-in lug allows for easy insertion of grounding conductors, supporting wire sizes up to 2/0 AWG. The phenolic insulation is rated for 150°C and ensures durability in a wide range of environmental conditions. The spring action design maintains positive contact on the grounding conductor, and the set screw ensures fixed alignment and reliable ground continuity.
- Part Number: HBLG2022
- Manufacturer: OZ/Gedney
- Size: 2 inch
- Material: Malleable Iron
- Finish: Hot Dip Galvanized
- Lug Type: Copper Lay-In
- Maximum Wire Size: 2/0 AWG
- Insulation Type: Phenolic
- Insulation Rating: 150°C
- Screws: Stainless Steel
- Standards: UL 514B, UL 467, UL 468, CSA C22.2 No. 41, NEMA FB-1
- Application: Rigid Conduit, IMC
Specifications
- Part Number: HBLG2022
- Manufacturer : OZ/Gedney
- Brand : OZ/Gedney
Product Data
- UPC : 78312627033
- GTIN : 00783126270334
- Weight : 0.5
