HBLG0722 - OZ/Gedney 3/4 Inch Hot-Dip Galvanized Insulated Grounding Bushing for Rigid Conduit and IMC

HBLG0722

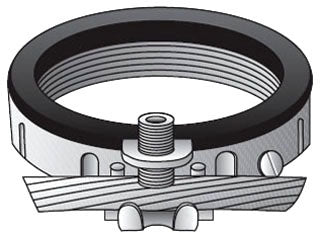

HBLG0722 is a 3/4 inch hot-dip galvanized insulated grounding bushing by OZ/Gedney designed for grounding conduit systems.This specification grade grounding bushing features a tin-plated copper saddle suitable for copper or aluminum conductors ranging from #8 to 4/0 AWG. It is constructed with a hot-dip galvanized malleable iron or steel body and stainless steel screws, providing durability and corrosion resistance. The phenolic insulation is rated for 150°C and molded over a metallic conduit stop to prevent shattering or shrinking at sub-zero temperatures. It is intended for use with rigid conduit and intermediate metal conduit (IMC) and includes a grounding lug for secure grounding connections.

Key Specifications
• Size: 3/4 inch
• Material: Hot-dip galvanized malleable iron/steel body
• Screws: Stainless steel
• Conductor Range: #8 to 4/0 AWG copper or aluminum
• Insulation: Phenolic, 150°C UL rated
• Application: Rigid conduit and IMC grounding
• Grounding Lug: Included with tin-plated copper saddle
• Mounting: Threaded conduit connection
• Standards: UL 514B, 467, 468; CSA C22.2 No. 41; Fed. Spec. W-F-408E; NEMA FB-1
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HBLG0722
• Manufacturer : OZ/Gedney
• Brand : OZ/Gedney



Product Data

• Weight : 5.19
