Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBLDS60100RS

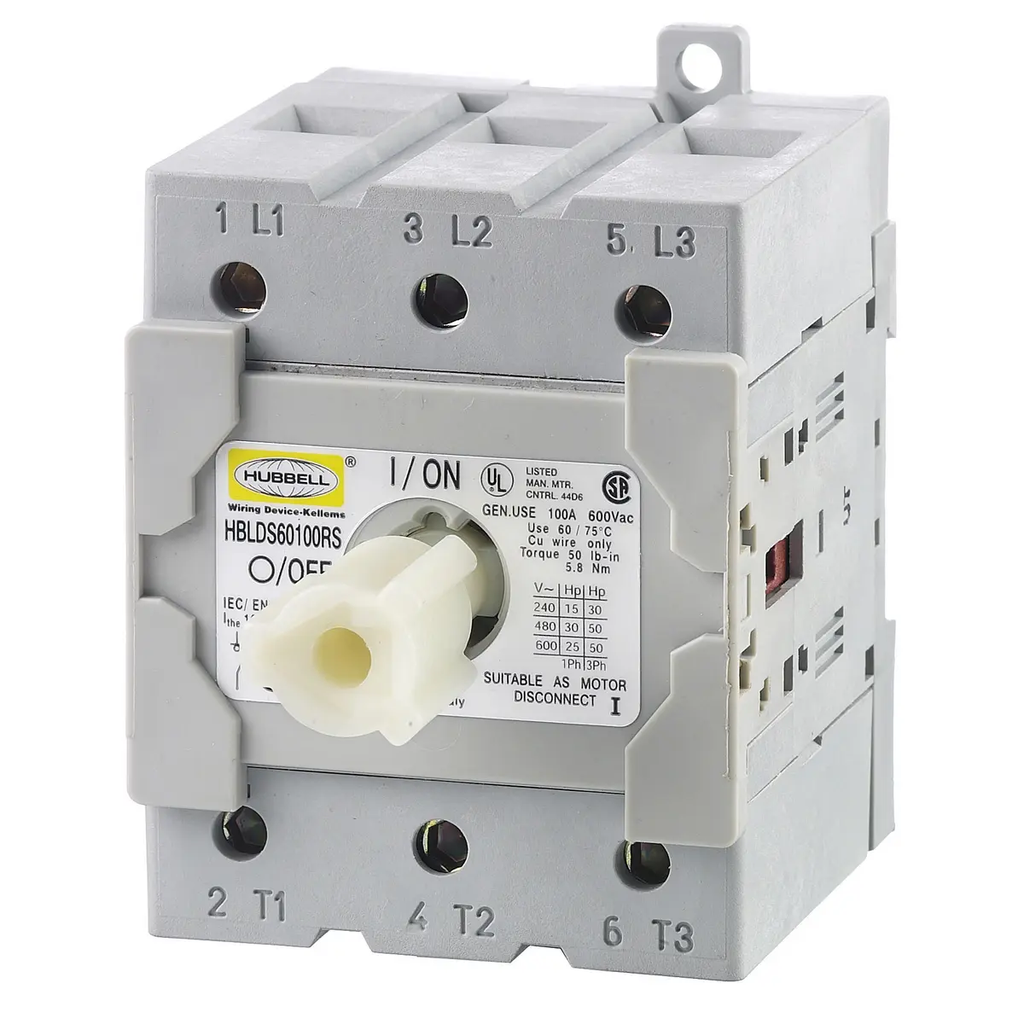

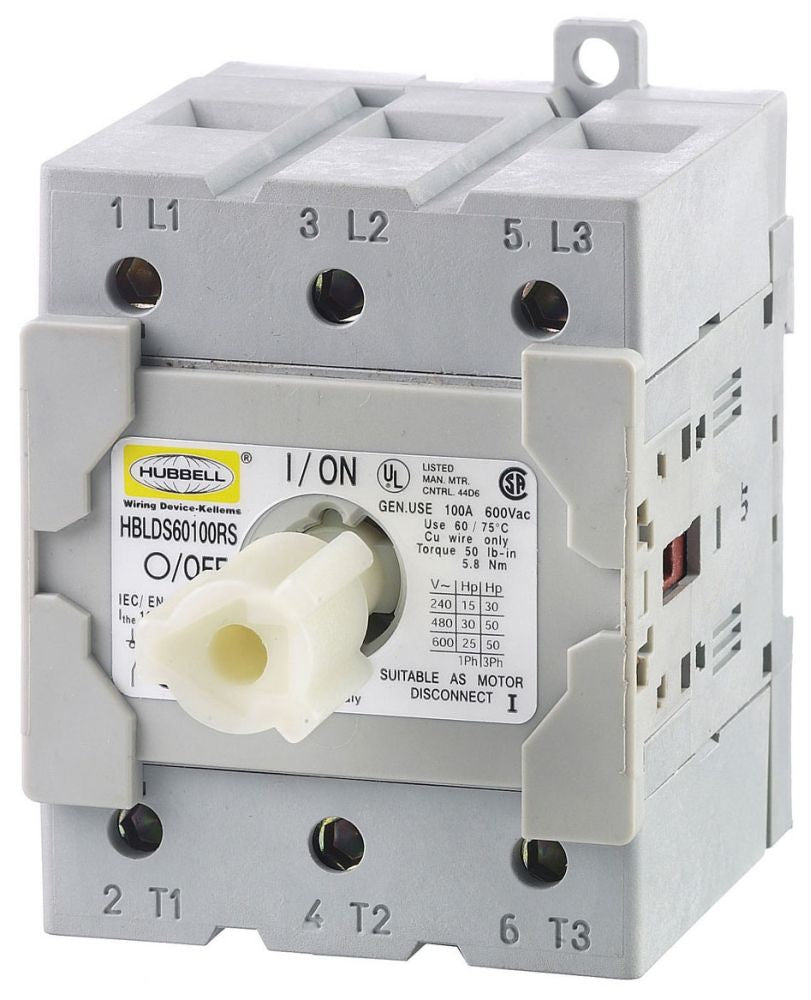

HBLDS60100RS is a 3-pole replacement disconnect switch designed for industrial applications requiring reliable manual motor disconnect capability. This Hubbell Circuit-Lock® switch features a robust composite and stainless steel construction, suitable for use in demanding environments. The HBLDS60100RS switch is rated for 60/100A at 600V AC, 60 Hz, and offers a 2-position toggle operation with screw terminals. It is UL listed as a manual motor controller and suitable as a motor disconnect, meeting NEC code requirements. The switch is rated for continuous operation from -40°C to 75°C and features IP67 ingress protection for dust and water resistance.
- Part Number: HBLDS60100RS
- Manufacturer: Hubbell
- Amperage Rating: 60/100A
- Voltage Rating: 600V AC
- Number of Poles: 3
- Mounting Type: Replacement Switch
- Interrupt Rating: 10,000A
- Series/Frame: Circuit-Lock®
- Dielectric Strength: 3000V AC minimum
- Enclosure Rating: NEMA 1/IP67
- Operating Temperature: -40°C to 75°C
- Certifications: UL Listed
Specifications
- Part Number: HBLDS60100RS
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
Product Data
- UPC : 78358595521
- GTIN : 00783585955216
- Country of Origin : Poland
- Weight : 1.28
