Product Info
- Manufacturer:Hubbell
- Sub-Category:Fuse Part And Accessory
Description
HBLDS3RS

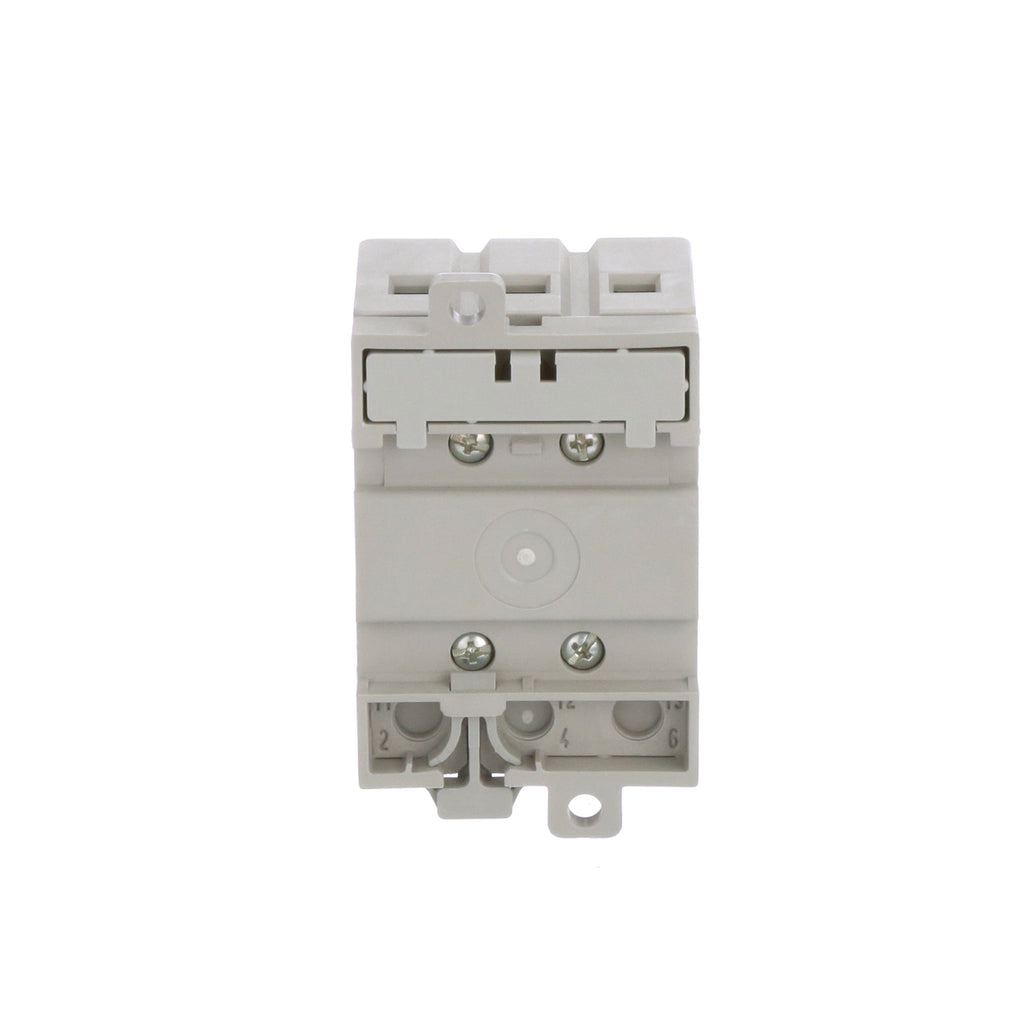

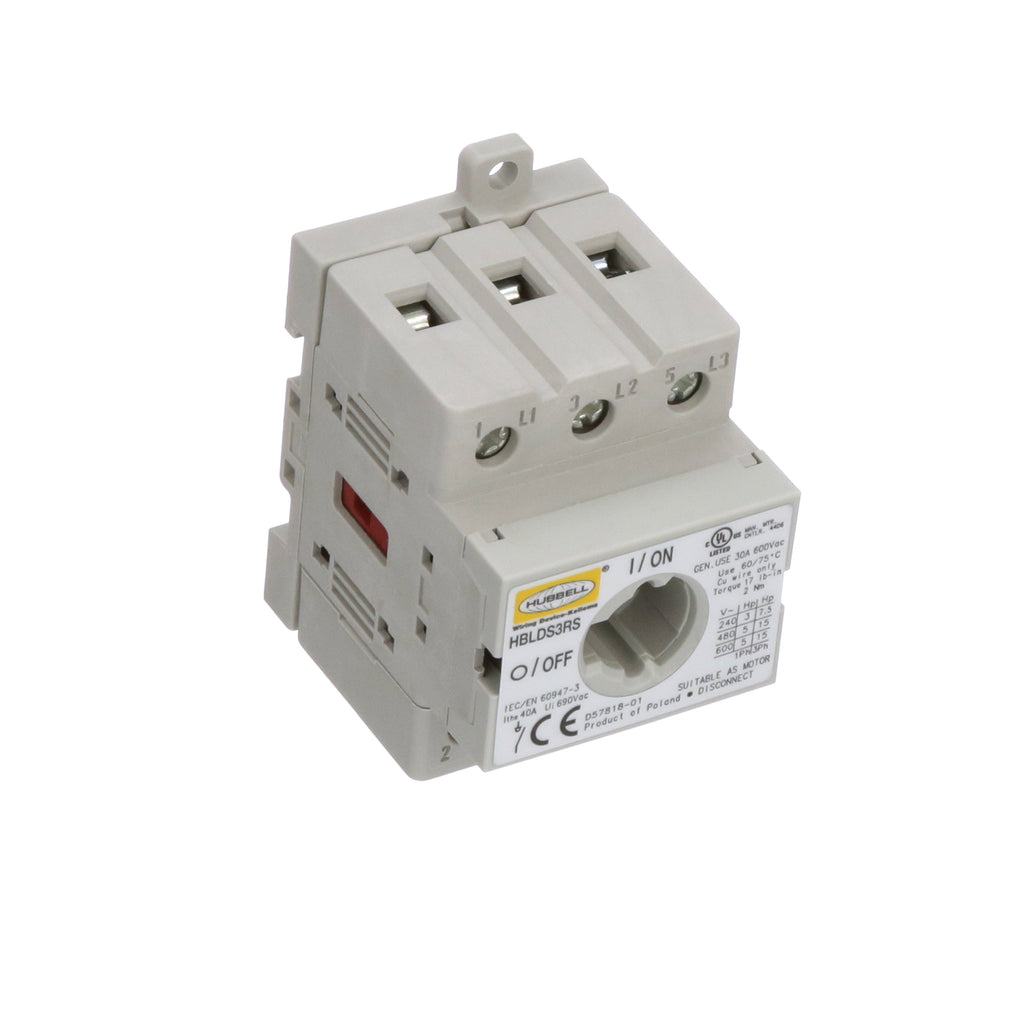

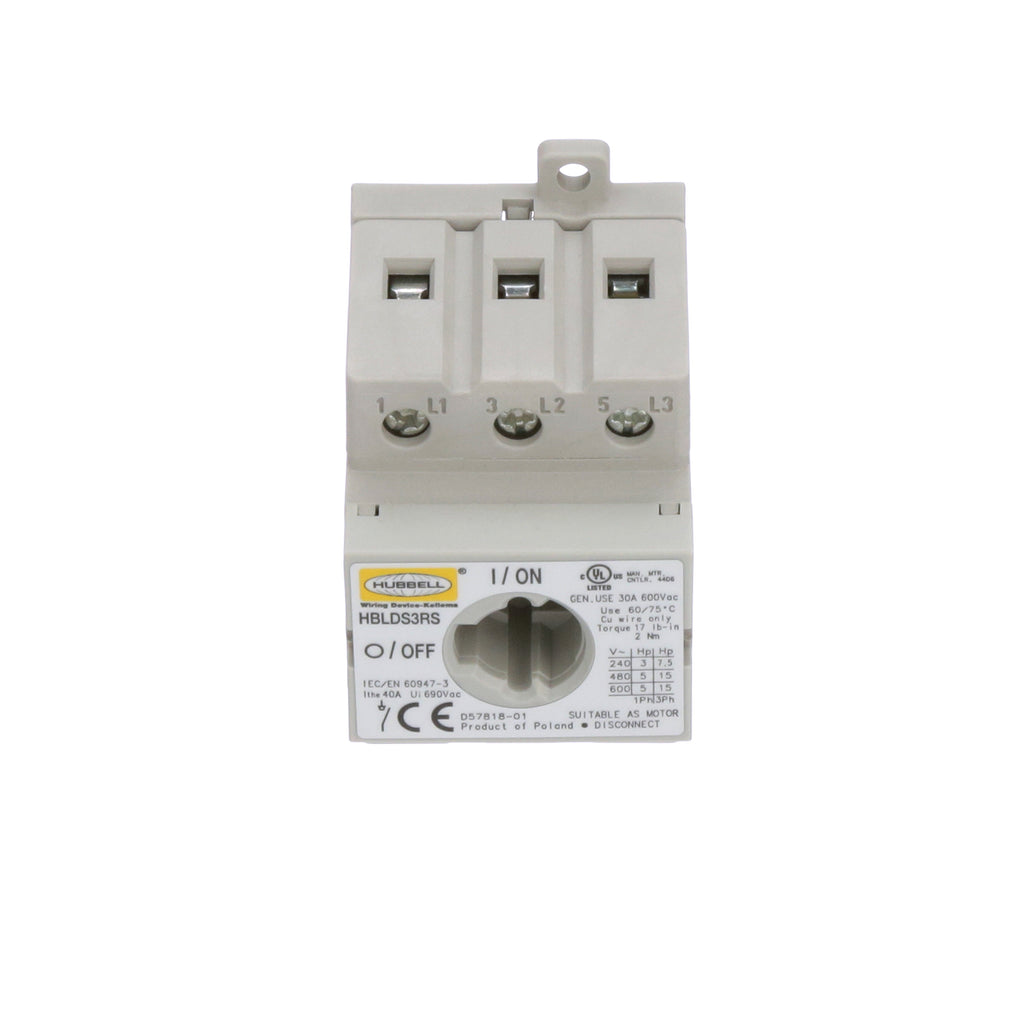

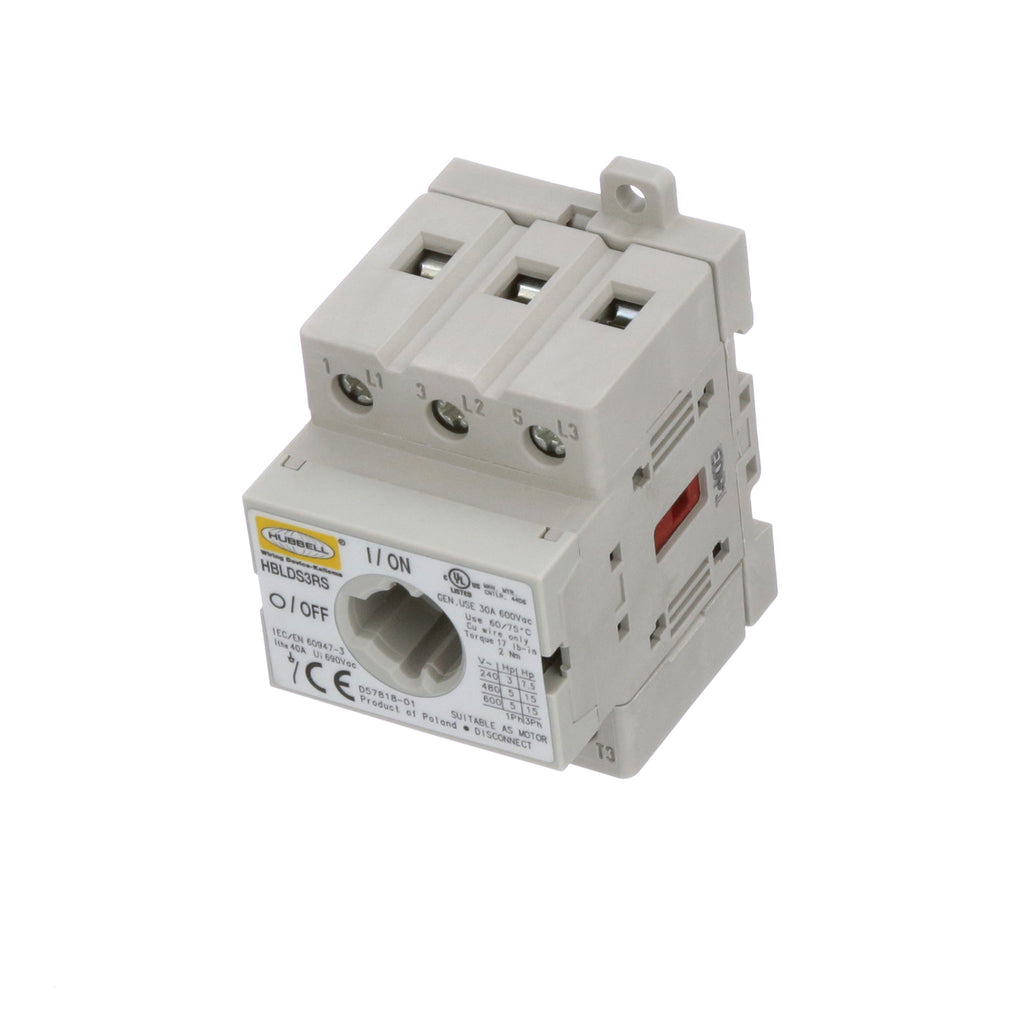

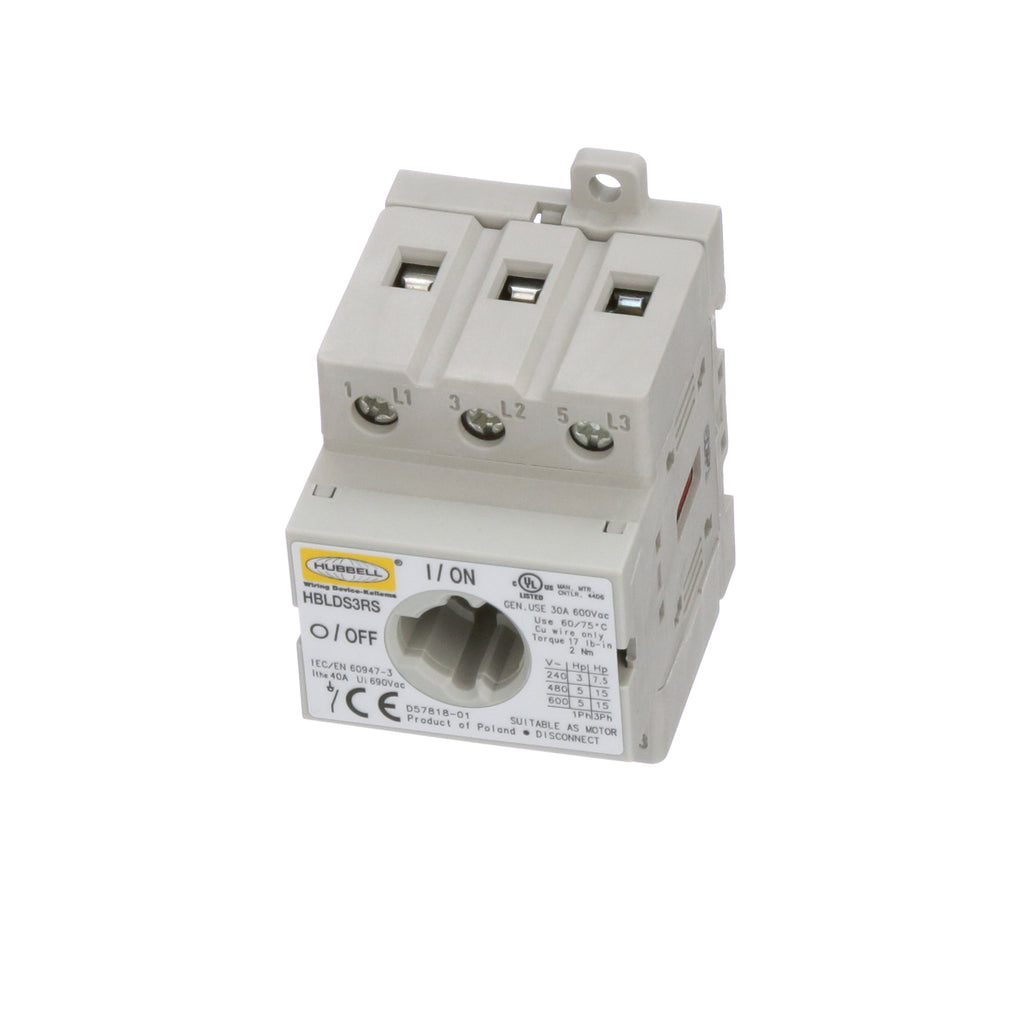

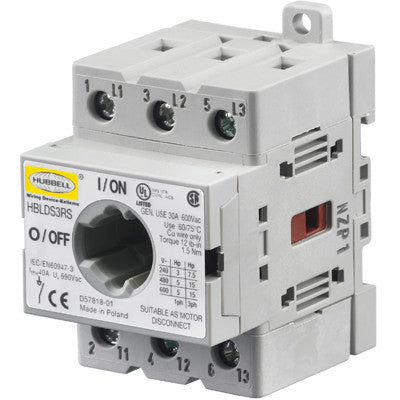

HBLDS3RS is a 30A, 600V AC, 3-pole non-fusible replacement rotary disconnect switch designed for industrial applications requiring reliable circuit isolation. This switch features a robust composite enclosure and is suitable for use with 30A connectors in demanding environments. The HBLDS3RS provides a durable solution for safe circuit disconnection, with a two-position contact configuration and screw terminal connections. It is rated for mechanical and electrical endurance, withstanding up to 10,000 mechanical cycles and 6,000 electrical cycles. The switch is designed for foot mounting and offers UV-stabilized materials for enhanced durability.
- Amperage Rating: 30 A
- Voltage Rating: 600 V AC
- Number of Poles: 3
- Mounting Type: Foot Mounting
- Interrupt Rating: Withstands 3,000V minimum dielectric voltage
- Series/Frame: Circuit-Lock
- Trip Unit: Non-Fusible Standard
- Certifications: CSA Certified TYPE 4, 4X, and TYPE 12K Enclosure; Listed to UL Standard
- Enclosure Material: Composite
- Contact Configuration: Two Position
- Connection Type: Screw Terminal
- Operating Temperature: -40°C to 75°C
Specifications
- Part Number: HBLDS3RS
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Fuse
- Item Subcategory : Fuse Part And Accessory
Product Data
- UPC : 783585955179
- Weight : 0.4
