Product Info
- Manufacturer:Hubbell
- Sub-Category:Disconnect
Description
HBLDS10

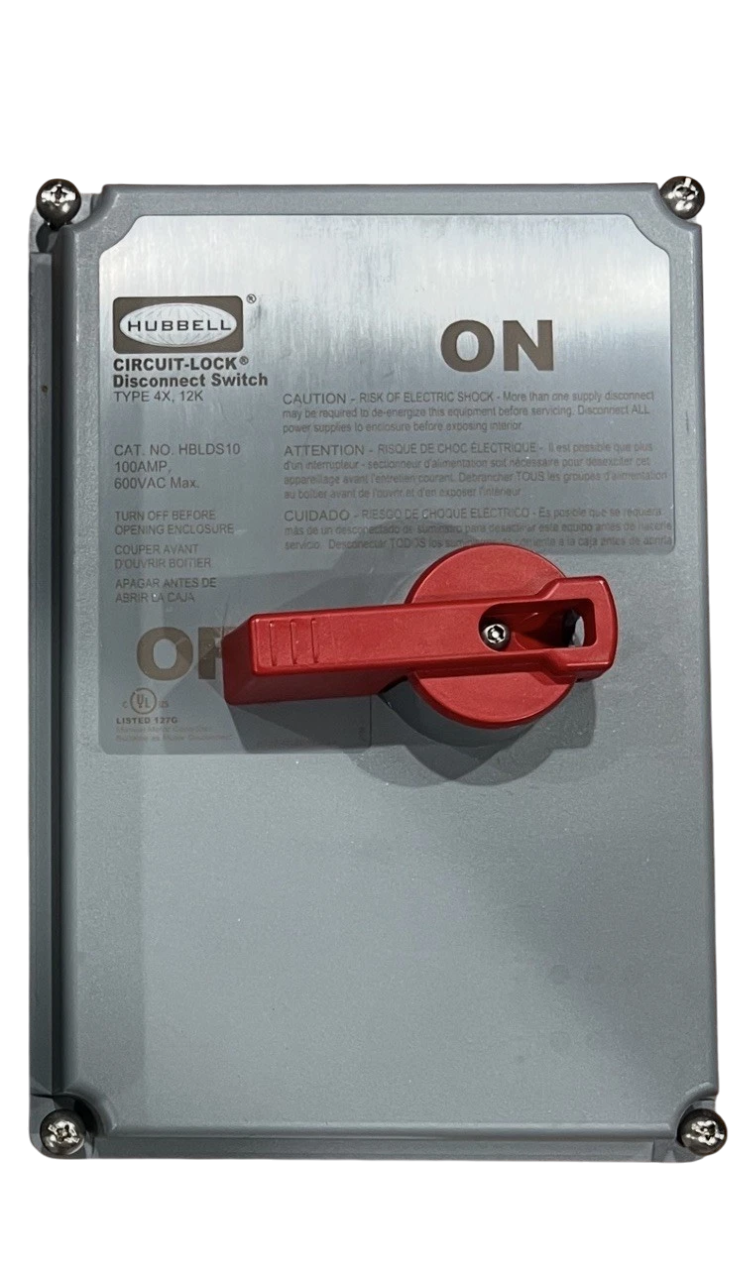

HBLDS10 is a Hubbell Circuit-Lock® Standard 3-pole, 100 amp, 600 VAC non-fused disconnect switch with a NEMA 4X rated plastic enclosure.This heavy duty industrial-grade switch features a lockable 2-position lever handle, screw terminal connections, and external fully adjustable mounting feet. It is UL listed, suitable as a motor disconnect, and rated for 60000 W load with 6000 operating cycles. The enclosure is rated NEMA 4X and IP69K for harsh environments, with an operating temperature range from -40°C to 75°C.
- Key Specifications
- Amperage: 100 A
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Type: Non-Fused Disconnect Switch
- Mounting Type: External Fully Adjustable Feet
- Interrupt Rating: UL Listed for full rated current
- Enclosure: Plastic, NEMA 4X, IP69K
- Handle: Lockable 2-position lever
- Operating Temperature: -40°C to 75°C
- Standards: UL Listed, NEC compliant
- Operating Cycles: 6000
- Dielectric Strength: Withstands 3000V AC minimum
Specifications
- Part Number: HBLDS10
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Switch
- Item Subcategory : Disconnect
- Compatible Frames : QO
Product Data
- UPC : 78358543065
- GTIN : 00783585430652
- Weight : 45
