Product Info
- Manufacturer:Hubbell
- Sub-Category:Industrial wiring device
Description
HBL9977C

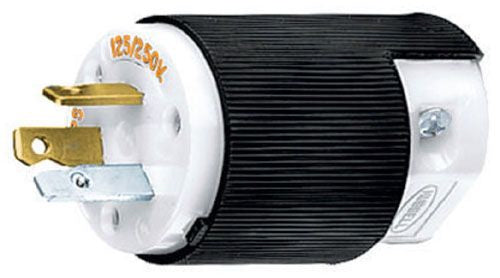

HBL9977C is a Hubbell 20 Amp, 125/250 Volt, 3-Pole 3-Wire NEMA 10-20P straight blade plug designed for reliable power connections.This plug features a non-grounding, polarized straight blade configuration with a durable nylon Insulgrip housing and 0.075 inch brass blades. It supports 3 poles and 3 wires, rated for 20 amperes at 125/250 volts AC, suitable for single-phase applications. The plug is UL 498 listed and CSA certified, with an IP20 enclosure rating and temperature range from -40 to 75 degrees Celsius.
- Key Specifications
- Amperage: 20 A
- Voltage: 125/250 V AC
- Poles: 3
- Wires: 3
- Configuration: NEMA 10-20P
- Mounting Type: Straight Blade Plug
- Material: Nylon housing, brass blades
- Approval: UL 498, CSA Certified
- Ingress Protection: IP20
- Temperature Rating: -40 to 75 °C
- Non-Grounding
Additional Information
General purpose; see datasheet for specifics
Specifications
- Part Number: HBL9977C
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Industrial wiring device
- Voltage : 125/250 125/250
Product Data
- UPC : 783585013121
- GTIN : 00783585013121
- Dimensions : 1.31 in Dia x 2.5 in L 2.5 x 1.31 x 1.31 in
- Weight : 5.19
